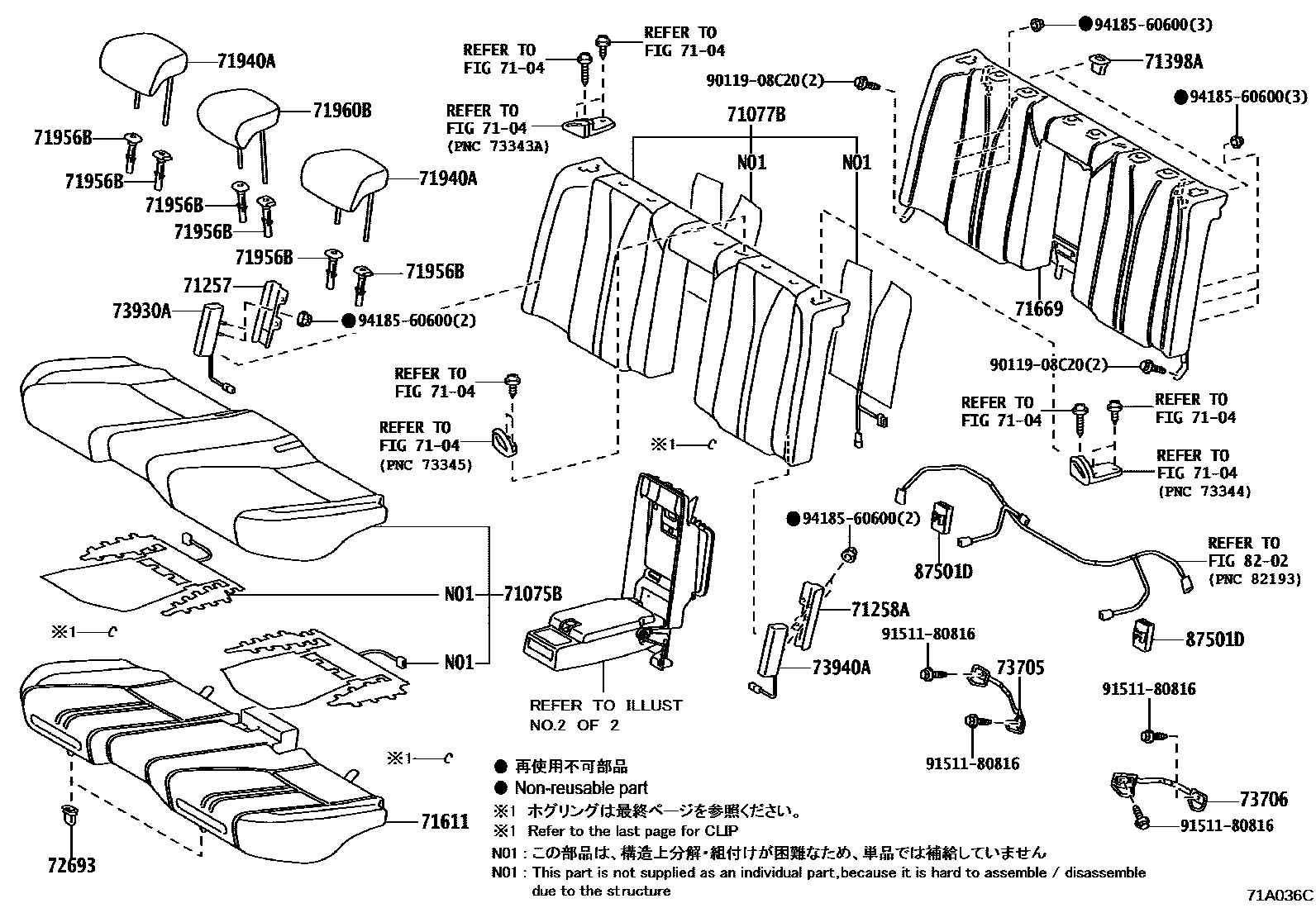

REAR SEAT & SEAT TRACK

0001 1 0002 1������ 0003 1�������������� & �������

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-30J40-20iURL10201709-201805

sub71075-30J41

main71075-30J40-21supersedes 71075-30J10-C2iURL10201805-201909

sub71075-30J41

main71075-30J40-23iURL10201805-201909

sub71075-30J41

main71075-30J40-24iURL10201805-201909

sub71075-30J41

main71075-30J40-25iURL10201805-201909

sub71075-30J41

main71075-30J40-26iURL10201805-201909

sub71075-30J41

main71075-30J40-28iURL10201805-201909

sub71075-30J41

main71075-30J40-29iURL10201909-202007

sub71075-30J41

main71075-30J40-40supersedes 71075-30J10-C3iURL10201909-202007

sub71075-30J41

main71075-30J40-41iURL10201909-202007

sub71075-30J41

main71075-30J40-42iURL10201909-202007

sub71075-30J41

main71075-30J40-43iURL10201909-202007

sub71075-30J41

main71075-30J40-C7iURL10201510-201805

sub71075-30J41

main71075-30J40-C8iURL10201510-201805

sub71075-30J41

main71075-30J40-C9supersedes 71075-30J10-C1iURL10201510-201805

sub71075-30J41

main71075-30J40-D1iURL10201510-201709

sub71075-30J41

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-30M40-24iURL10201805-201909

sub71077-30M41

main71077-30M40-25iURL10201805-201909

sub71077-30M41

main71077-30M40-26iURL10201805-201909

sub71077-30M41

main71077-30M40-27iURL10201805-201909

sub71077-30M41

main71077-30M40-28supersedes 71077-30M10-C2iURL10201805-201909

sub71077-30M41

main71077-30M40-40iURL10201909-202007

sub71077-30M41

main71077-30M40-41iURL10201909-202007

sub71077-30M41

main71077-30M40-42iURL10201909-202007

sub71077-30M41

main71077-30M40-43supersedes 71077-30M10-C3iURL10201909-202007

sub71077-30M41

main71077-30M40-C4supersedes 71077-30M10-C0iURL10201510-201805

sub71077-30M41

main71077-30M40-C7iURL10201510-201805

sub71077-30M41

main71077-30M40-C8iURL10201510-201805

sub71077-30M41

main71077-30M40-C9iURL10201709-201805

sub71077-30M41

main71077-30M40-D1iURL10201709-201805

sub71077-30M41

main71077-30M40-D3iURL10201805-201909

sub71077-30M41

main71077-30M40-D4iURL10201909-202007

sub71077-30M41

71257PLATE, REAR SEATBACK ANCHOR

main71257-30100iURL10201510-202007

71258APLATE, REAR SEATBACK ANCHOR, LH

main71258-30170iURL10201510-202007

71398AHOLDER, REAR SEATBACK

main71398-30010×2iURL10201510-202007

71611PAD, REAR SEAT CUSHION

main71503-30280iURL10201510-202007

71669PAD, REAR SEATBACK

main71507-30270iURL10201510-202007

71940AHEADREST ASSY, REAR SEAT

main71940-30D70-A2×2iURL10201510-201909

WHITE,TRIM0#

main71940-30D70-A3×2iURL10201909-202007

WHITE,TRIM0#

main71940-30D70-C1×2iURL10201510-202007

BLACK,TRIM2#

main71940-30D70-D4×2iURL10201510-202007

RED,TRIM3#

main71940-30D70-E2×2iURL10201510-202007

ORANGE,TRIM4#

main71940-30D70-J0×2iURL10201805-201909

71956BSUPPORT, REAR SEAT HEADREST

main71930-52030-C1×3iURL10201510-202007

main71931-42020-C2×3iURL10201510-202007

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-30570-C1iURL10201510-202007

BLACK,TRIM0#,2#,3#,4#,8#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iURL10201510-202007

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-30050iURL10201510-202007

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-30050iURL10201510-202007

73930AAIRBAG ASSY, REAR SEAT, RH

main73930-30061iURL10201510-202007

73940AAIRBAG ASSY, REAR SEAT, LH

main73940-30061iURL10201510-202007

8202

87501DCONTROL SUB-ASSY, SEAT HEATER

main87501-30020×2iURL10201510-202007

9011908C20

main90119-08C20

9151180816

main91511-80816

9418560600

main94185-60600

21 parts on this diagram · 3 diagrams in section
