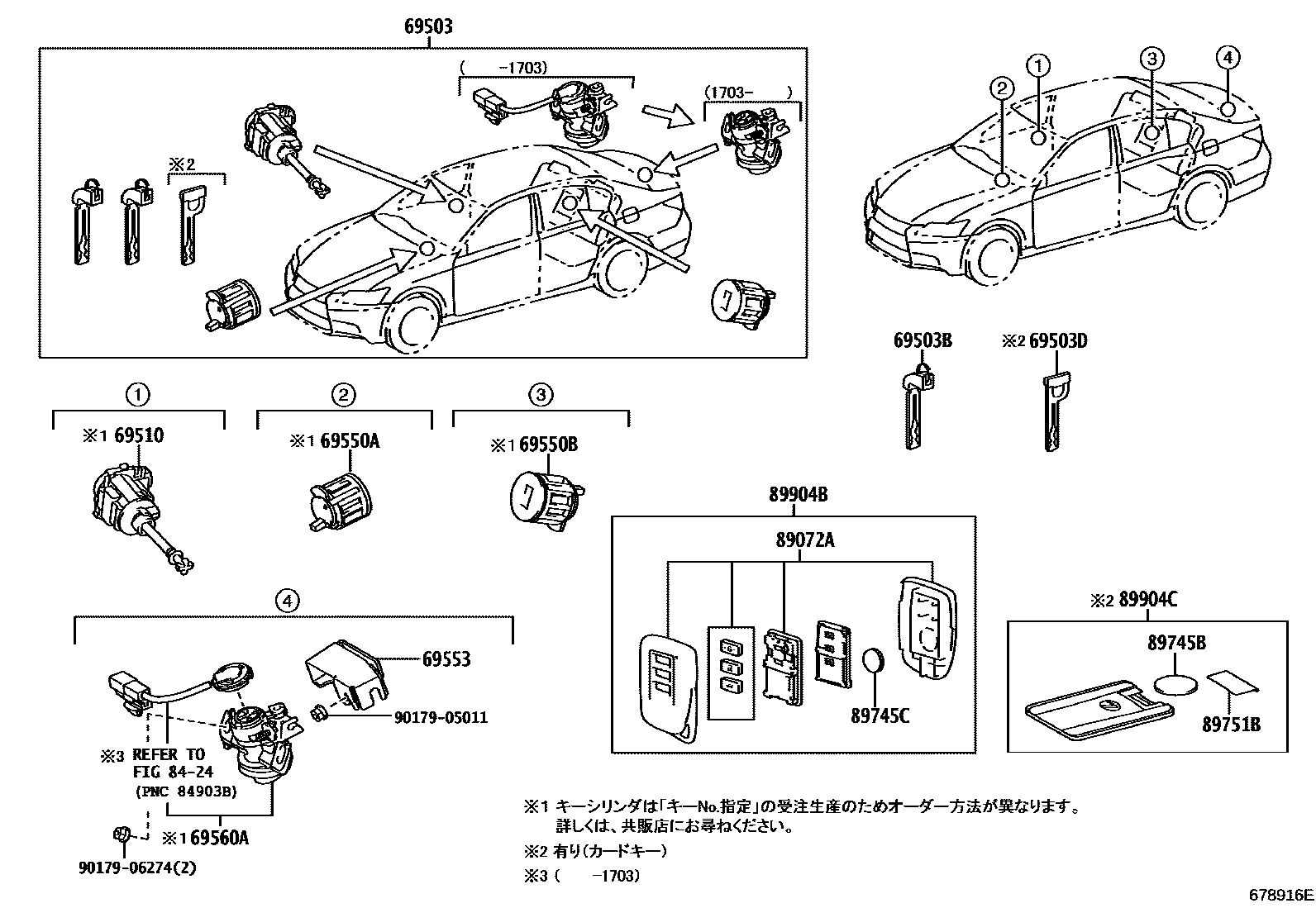

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-30E60iURL10201510-201709

main69005-30E61iURL10201709-202007

69503BKEY, CUT

main69515-30370×2iURL10201510-202007

69503DKEY, CUT(CARD KEY)

main69515-30330iURL10201510-202007

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-30300iURL10201510-202007

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iURL10201510-202007

69550BCYLINDER ASSY, REAR SEAT CENTER ARMREST DOOR LOCK

main69550-50040iURL10201510-202007

69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER

main69553-30010iURL10201510-201805

main69553-30021iURL10201805-202007

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-30360iURL10201510-201709

main69560-30370iURL10201709-202007

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-30750×2iURL10201510-202007

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iURL10201510-202007

89745CBATTERY, TRANSMITTER

main89745-45010iURL10201510-202007

89751BCOVER, TRANSMITTER HOUSING

main8975B-53010iURL10201510-202007

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-30M40×2iURL10201510-202007

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main89904-30L40iURL10201510-202007

9017905011

main90179-05011

9017906274

main90179-06274

17 parts on this diagram · 1 diagram in section
