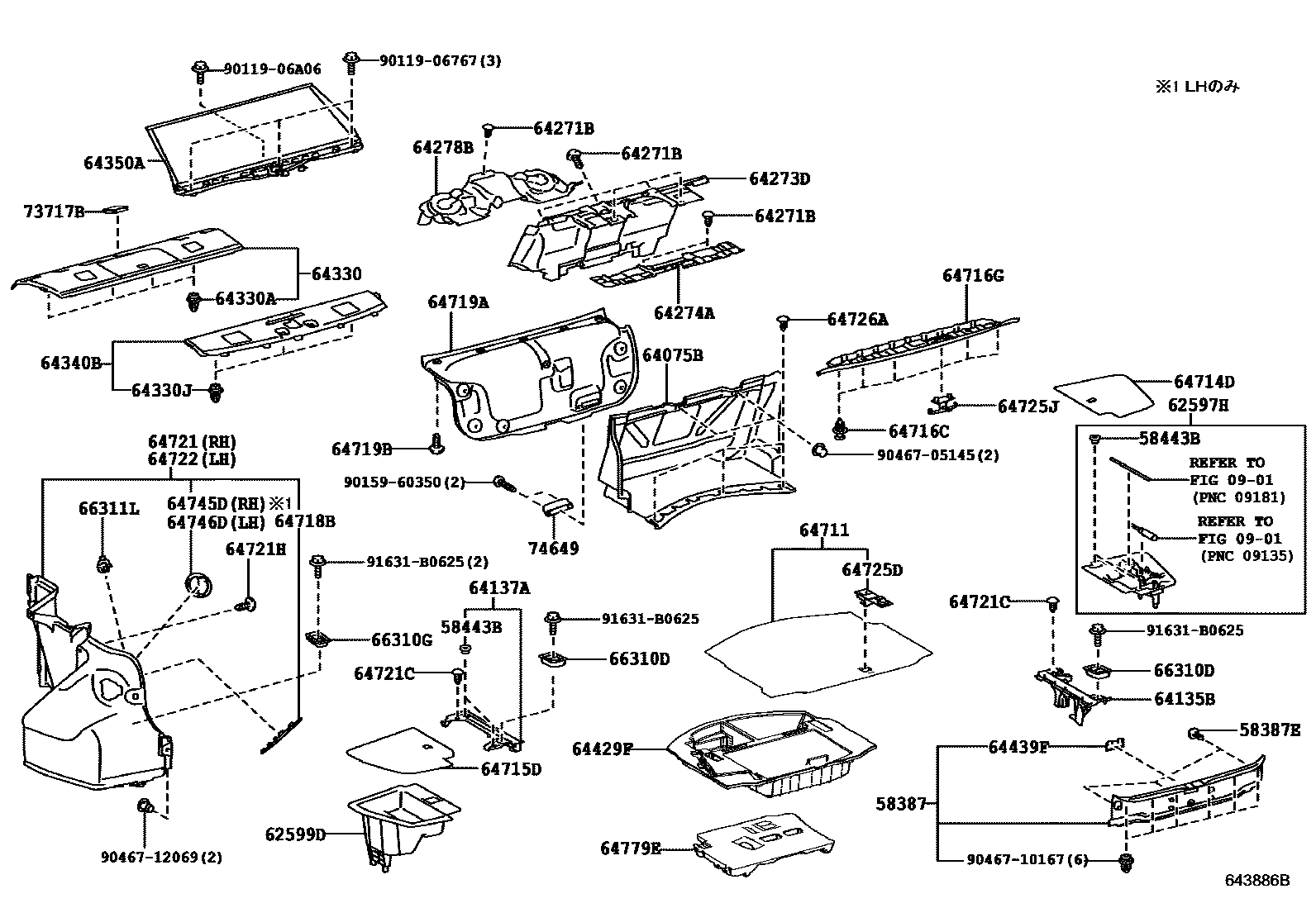

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0901STANDARD TOOL

→ Go to FIG 09-01

58387PLATE, REAR FLOOR FINISH

main58387-30220-C1iURL10201510-201511

BLACK,TRIM0#,2#,3#,4#

main58387-30221-C1iURL10201512-201710

BLACK,TRIM0#,2#,3#,4#

main58387-30221-C3iURL10201710-202007

BLACK,TRIM0#,2#,3#,4#,8#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0×3iURL10201510-201610

BLACK,TRIM0#,2#,3#,4#

main90467-08186-C3×3iURL10201610-202007

BLACK,TRIM0#,2#,3#,4#,8#

58443BCUSHION, DECK BOARD, NO.1

main58443-33010×4iURL10201510-202007

62597HBOX, SIDE TRIM

main62597-30020iURL10201510-201607

main62597-30021iURL10201608-202007

62599DBOX, SIDE TRIM, LH

main62599-30010iURL10201510-201607

main62599-30011iURL10201608-202007

64075BCOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64075-30330-C0iURL10201510-201511

BLACK,TRIM0#,2#,3#,4#

main64075-30331-C0iURL10201512-202007

BLACK,TRIM0#,2#,3#,4#,8#

64135BBRACKET, LUGGAGE COMPARTMENT TRAY, REAR RH

main64135-30050-C0iURL10201510-202007

BLACK,TRIM0#,2#,3#,4#,8#

64137ABRACKET, LUGGAGE COMPARTMENT TRAY, REAR LH

main64137-30030-C0iURL10201510-202007

BLACK,TRIM0#,2#,3#,4#,8#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-08186-C0×8iURL10201510-201610

BLACK

main90467-08186-C3×8iURL10201610-202007

BLACK

64273DPAD, ROOM PARTITION, NO.1

main64273-30192iURL10201510-202007

64274APAD, ROOM PARTITION, NO.2

main64274-30151iURL10201510-202007

64278BPAD, ROOM PARTITION, NO.3

main64278-30030iURL10201510-202007

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-30C12-C0supersedes 64330-30F62-C1iURL10201510-201511

main64330-30C13-C0supersedes 64330-30F63-C1iURL10201512-201809

main64330-30J30-C0supersedes 64330-30J20-C0iURL10201809-202007

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161×4iURL10201510-202007

64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161×3iURL10201510-202007

64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2

main64340-30151-C0iURL10201512-202007

BLACK,TRIM0#,2#,3#,4#,8#

main64340-30160-C1supersedes 64340-30150-C0iURL10201510-201511

main64340-30161-C1iURL10201512-201809

main64340-30190-C0iURL10201809-202007

64350ASHADE ASSY, REAR WINDOW

main64350-30150-C0iURL10201510-201511

BLACK,TRIM0#,2#,3#,4#

main64350-30151-C0iURL10201512-201605

BLACK,TRIM0#,2#,3#,4#

main64350-30152-C0iURL10201606-202007

BLACK,TRIM0#,2#,3#,4#,8#

64429FBOX, LUGGAGE COMPARTMENT TRIM

main64429-30030iURL10201510-202007

64439FCOVER, LUGGAGE ROOM, REAR

main64439-30050-C0iURL10201510-201512

BLACK,TRIM0#,2#,3#,4#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-30700-C0iURL10201510-202007

BLACK,TRIM0#,2#,3#,4#,8#

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-30530-C1iURL10201510-201511

BLACK,TRIM0#,2#,3#,4#

main64714-30531-C1iURL10201512-202007

BLACK,TRIM0#,2#,3#,4#,8#

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-30360-C1iURL10201510-201511

BLACK,TRIM0#,2#,3#,4#

main64715-30361-C1iURL10201512-202007

BLACK,TRIM0#,2#,3#,4#,8#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-07214×5iURL10201510-202007

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-30200-C0iURL10201510-201511

BLACK,TRIM0#,2#,3#,4#

main64716-30201-C0iURL10201512-201805

BLACK,TRIM0#,2#,3#,4#,8#

main64716-30210-C0iURL10201805-202007

BLACK,TRIM0#,2#,3#,4#,8#

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-30130-C0iURL10201510-201512

BLACK,TRIM0#,2#,3#,4#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-30370-C0supersedes 64719-30441-C0iURL10201510-201511

main64719-30371-C0supersedes 64719-30441-C0iURL10201512-201604

main64719-30372-C0supersedes 64719-30442-C0iURL10201605-202007

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0×15iURL10201510-201610

BLACK,TRIM0#,2#,3#,4#

main90467-08186-C3×15iURL10201610-202007

BLACK,TRIM0#,2#,3#,4#,8#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-30320-C0iURL10201510-201511

BLACK,TRIM0#,2#,3#,4#

main64721-30321-C0iURL10201512-202007

BLACK,TRIM0#,2#,3#,4#,8#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0×2iURL10201510-201610

BLACK,TRIM0#,2#,3#,4#

main90467-08186-C3×2iURL10201610-202007

BLACK,TRIM0#,2#,3#,4#,8#

64721HCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0×2iURL10201510-201610

BLACK,TRIM0#,2#,3#,4#

main90467-08186-C3×2iURL10201610-202007

BLACK,TRIM0#,2#,3#,4#,8#

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-30270-C0iURL10201510-201511

BLACK,TRIM0#,2#,3#,4#

main64722-30271-C0iURL10201512-202007

BLACK,TRIM0#,2#,3#,4#,8#

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-20090-C0iURL10201510-202007

BLACK,TRIM0#,2#,3#,4#,8#

64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-30210-C1iURL10201510-201805

BLACK,TRIM0#,2#,3#,4#,8#

64726ACLIP, LUGGAGE TRIM, REAR

main90467-08186-C0×3iURL10201510-201610

BLACK,TRIM0#,2#,3#,4#

main90467-08186-C3×3iURL10201610-202007

BLACK,TRIM0#,2#,3#,4#,8#

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-30020-C0iURL10201510-201512

BLACK,TRIM0#,2#,3#,4#

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main64745-30020-C0iURL10201510-201512

BLACK,TRIM0#,2#,3#,4#

64779ETRAY, SPARE WHEEL COVER

main64779-30040iURL10201510-202007

66310DHOOK ASSY, ROPE

main66310-30011-C0×2iURL10201510-201701

BLACK,TRIM0#,2#,3#,4#

main66310-30011-C1×2iURL10201701-202007

BLACK,TRIM0#,2#,3#,4#,8#

66310GHOOK ASSY, ROPE

main66310-30011-C0×2iURL10201510-201701

BLACK,TRIM0#,2#,3#,4#

main66310-30011-C1×2iURL10201701-202007

BLACK,TRIM0#,2#,3#,4#,8#

66311LHOOK,ROPE

main66311-30010-C0×2iURL10201510-201610

BLACK,TRIM0#,2#,3#,4#

main66311-30010-C1×2iURL10201610-202007

BLACK,TRIM0#,2#,3#,4#,8#

73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-30010-C0iURL10201510-202007

BLACK,TRIM0#,2#,3#,4#,8#

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-51010-C3iURL10201610-202007

BLACK,TRIM0#,2#,3#,4#,8#

main74649-51010-C0iURL10201610-201702

9011906767

main90119-06767

9011906A06

main90119-06A06

9015960350

main90159-60350

9046705145

main90467-05145

9046710167

main90467-10167

9046712069

main90467-12069

91631B0625

main91631-B0625

50 parts on this diagram · 1 diagram in section
