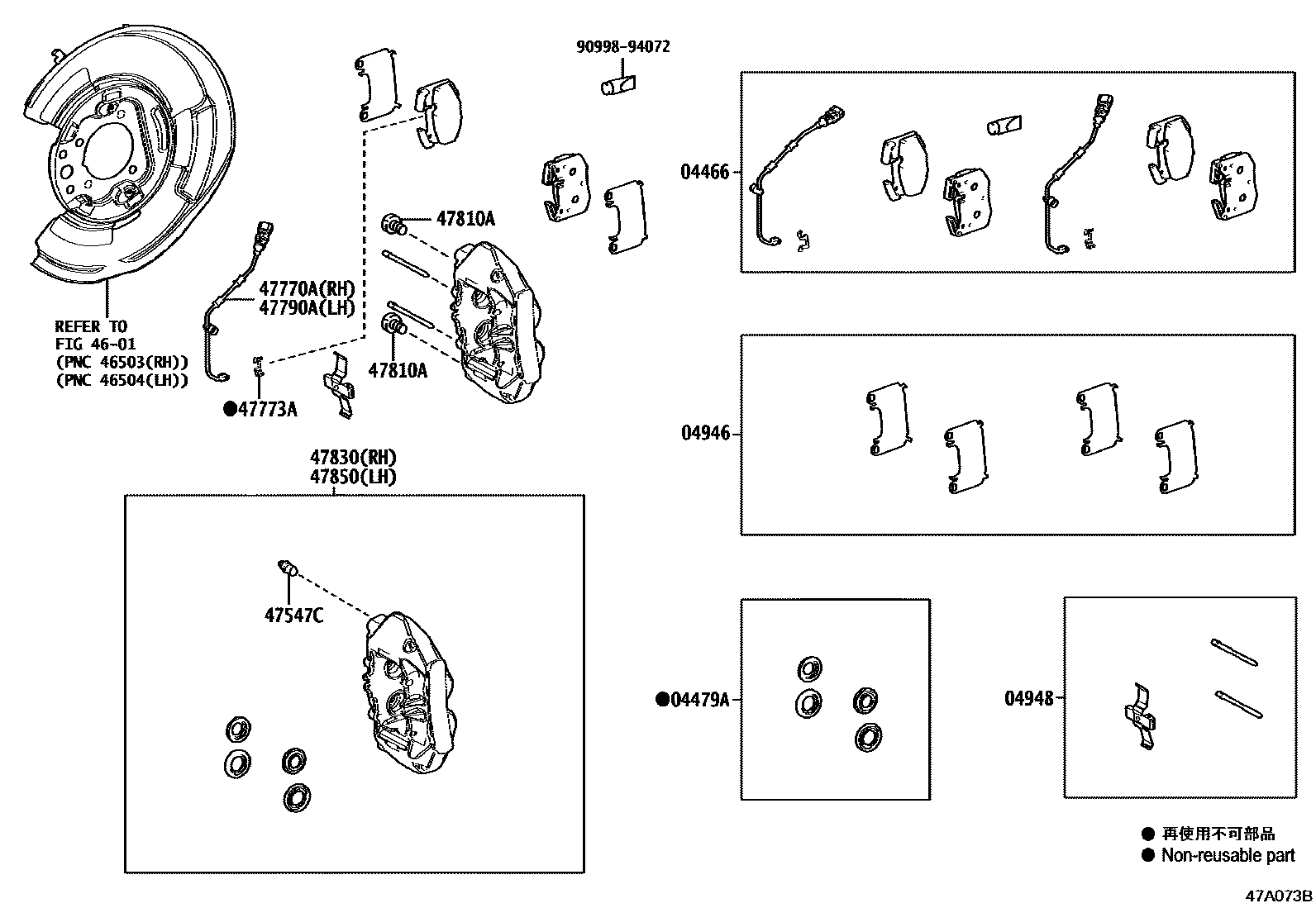

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0W070iURL10201510-202007

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0W030×2iURL10201510-202007

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0W020iURL10201510-202007

04948FITTING KIT, DISC BRAKE, REAR

main04948-0W040×2supersedes 04948-0W041iURL10201908-201910

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main90069-39012×2iURL10201510-202007

47770AWIRE ASSY, PAD WEAR INDICATOR, RH

main47770-24020iURL10201510-202007

47773ARETAINER, PAD WEAR INDICATOR

main47773-50030×2iURL10201510-202007

47790AWIRE ASSY, PAD WEAR INDICATOR, LH

main47770-24020iURL10201510-202007

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12401×4iURL10201709-202007

main90119-12416×4iURL10201510-201708

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0W110iURL10201510-201909

main47830-0W120iURL10201805-202007

main47830-0W140iURL10201909-202001

main47830-0W141supersedes 47830-0W100iURL10202001-202007

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0W110iURL10201510-201909

main47850-0W120iURL10201805-202007

main47850-0W140iURL10201909-202001

main47850-0W141supersedes 47850-0W100iURL10202001-202007

9099894072

main90998-94072

13 parts on this diagram · 1 diagram in section
