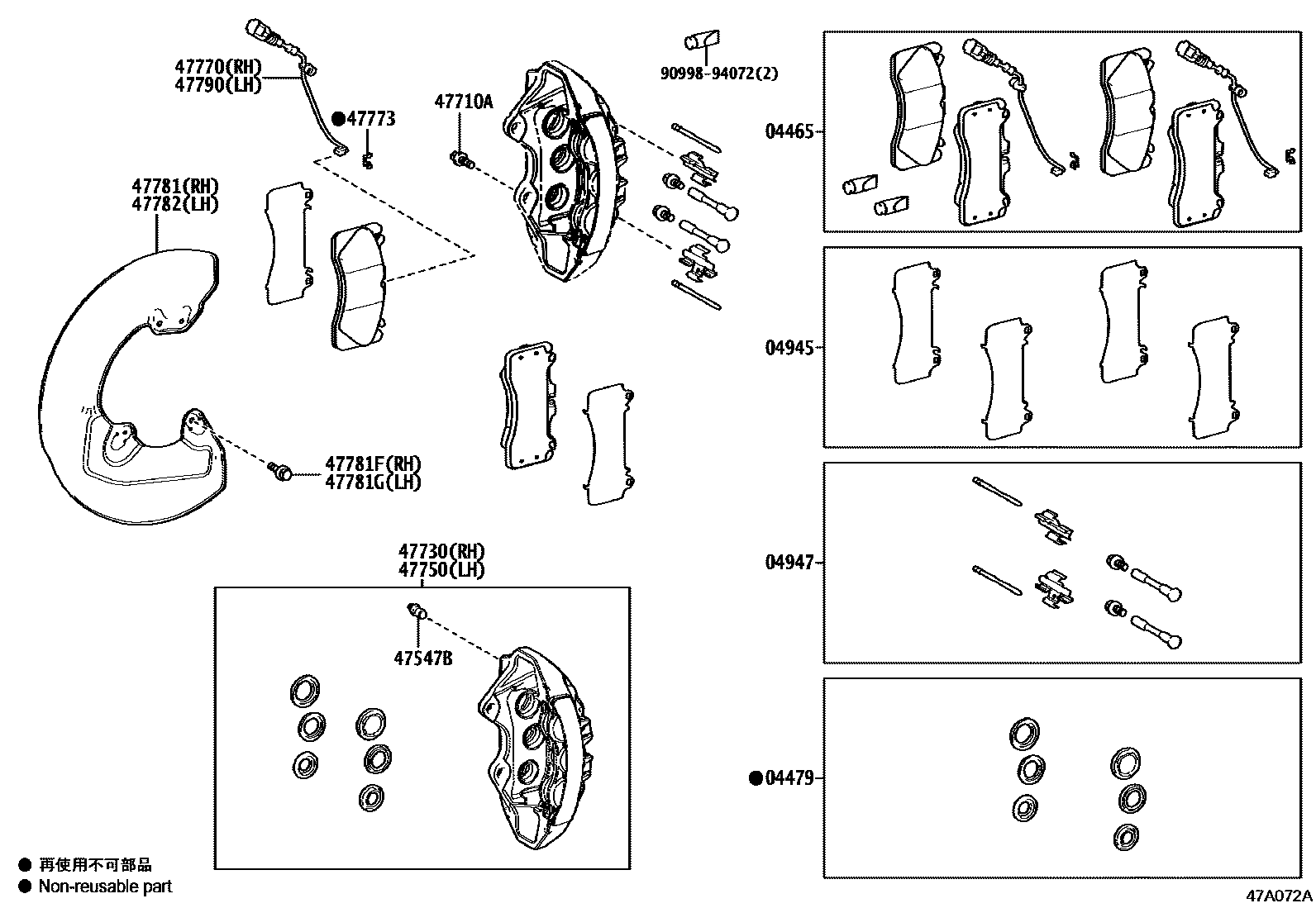

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0W190iURL10201510-201801

main04465-0W191iURL10201801-202007

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0W010×2iURL10201510-202007

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0W020iURL10201510-202007

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0W020×2iURL10201510-202007

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main90069-39012×2iURL10201510-202007

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415×4iURL10201510-202007

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0W150iURL10201510-201909

main47730-0W160iURL10201805-202007

main47730-0W180iURL10201909-202001

main47730-0W181supersedes 47730-0W140iURL10202001-202007

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0W150iURL10201510-201909

main47750-0W160iURL10201805-202007

main47750-0W180iURL10201909-202001

main47750-0W181supersedes 47750-0W140iURL10202001-202007

47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH

main47770-24010iURL10201510-201606

main47770-24012iURL10201606-202007

47773RETAINER, PAD WEAR INDICATOR

main47773-50030×2iURL10201510-202007

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-24040iURL10201510-202007

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06508×4iURL10201510-202007

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06508×4iURL10201510-202007

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-24040iURL10201510-202007

47790WIRE ASSY, PAD WEAR INDICATOR, FRONT LH

main47770-24010iURL10201510-201606

main47770-24012iURL10201606-202007

9099894072

main90998-94072

16 parts on this diagram · 1 diagram in section
