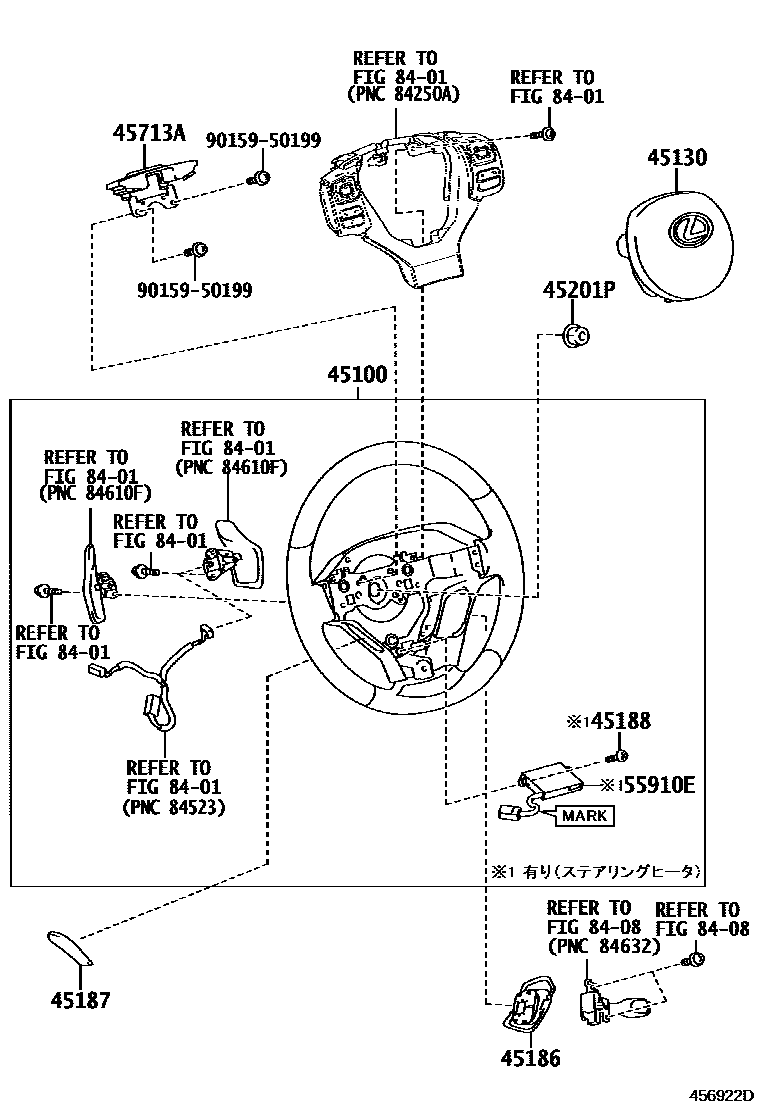

STEERING WHEEL

0001 13������� 0002 13�������

45100WHEEL ASSY, STEERING

main45100-24391-C4iURL10201510-201709

main45100-24391-C6iURL10201510-201709

main45100-30F60-C0iURL10201709-202007

main45100-30F60-C1iURL10201709-202007

main45100-30F90-C0iURL10201805-201909

45130BUTTON ASSY, HORN

main45130-30750-C0iURL10201510-202007

BLACK,TRIM0#,2#,3#,4#

main45130-30750-J0iURL10201805-201909

BLUE,TRIM8#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-53030-C0iURL10201510-202007

BLACK,TRIM0#,2#,3#,4#,8#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-53020-C0iURL10201510-202007

BLACK,TRIM0#,2#,3#,4#,8#

45188SCREW, STEERING WHEEL PAD ATTACHING

main90168-40113×2iURL10201510-201709

45201PNUT, STEERING WHEEL SET

main90179-12071iURL10201510-202007

45713ADAMPER, STEERING SHAKE

main45713-53011iURL10201510-202007

55910ECONTROL ASSY, STEERING WHEEL HEATER

main55910-53011iURL10201510-201709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

11 parts on this diagram · 2 diagrams in section
