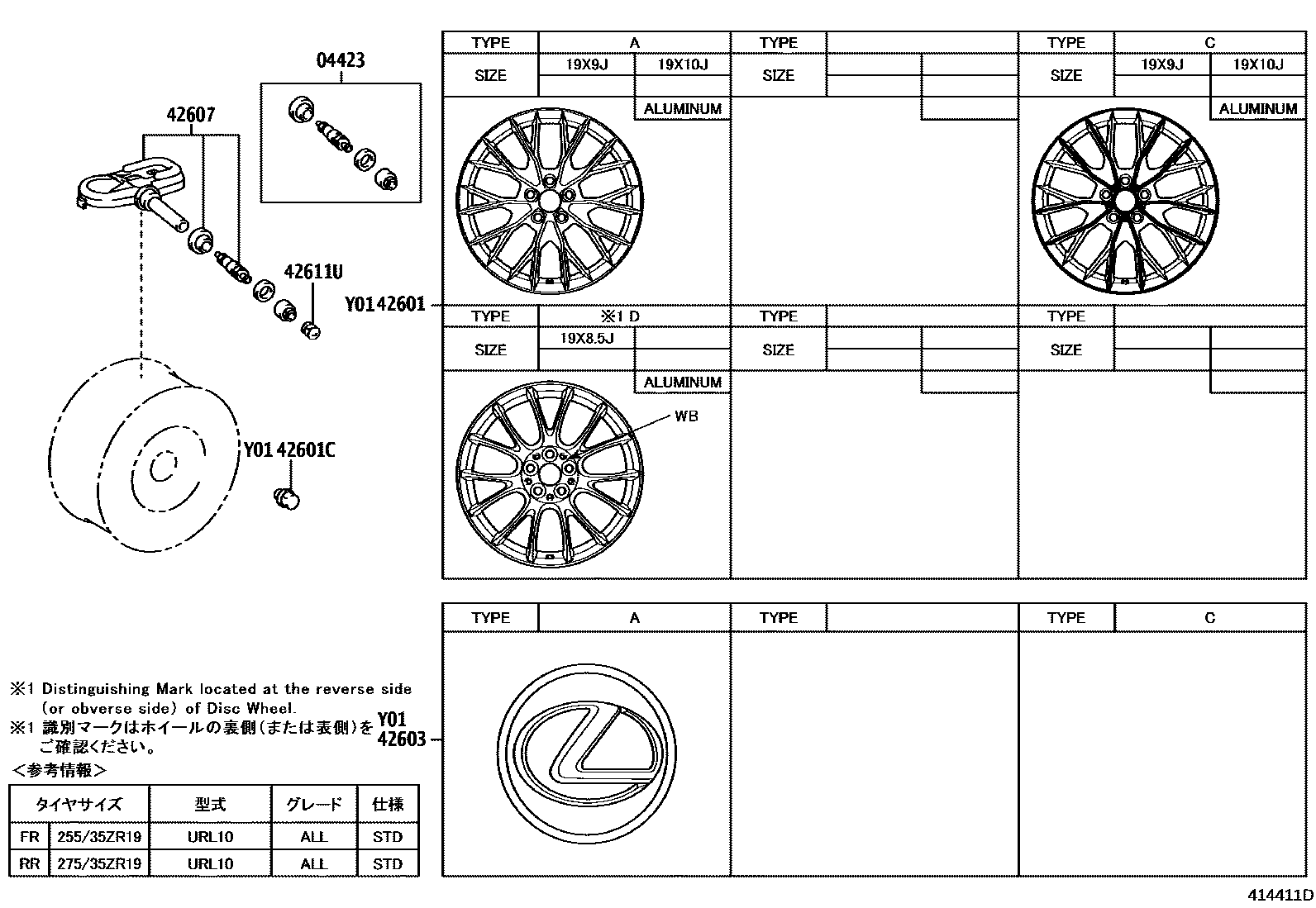

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060×4iURL10201510-202007

42601WHEEL, DISC

main42611-30D40×2iURL10201805-201905

main42611-30D41×2supersedes 4261A-30471iURL10201906-201909

main42611-30F60×2supersedes 4261A-30470iURL10201510-201908

main42611-30F61×2supersedes 42611-30F90iURL10201909-202007

main42611-30F70×2supersedes 4261A-30470iURL10201510-201908

main42611-30F71×2supersedes 42611-30F90iURL10201909-202007

main42611-30K20×2iURL10201805-201905

main42611-30K21×2supersedes 4261A-30471iURL10201906-201909

main4261A-53270×4supersedes 4261A-30470iURL10201510-201908

main4261A-53271×4supersedes 42611-30F90iURL10201909-202007

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iURL10201510-201805

main90942-01115×20iURL10201805-202007

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-53110×4iURL10201510-202007

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-30060×4iURL10201510-202007

42611UCAP, TIRE VALVE

main90942-05037×4iURL10201510-202007

6 parts on this diagram · 2 diagrams in section
