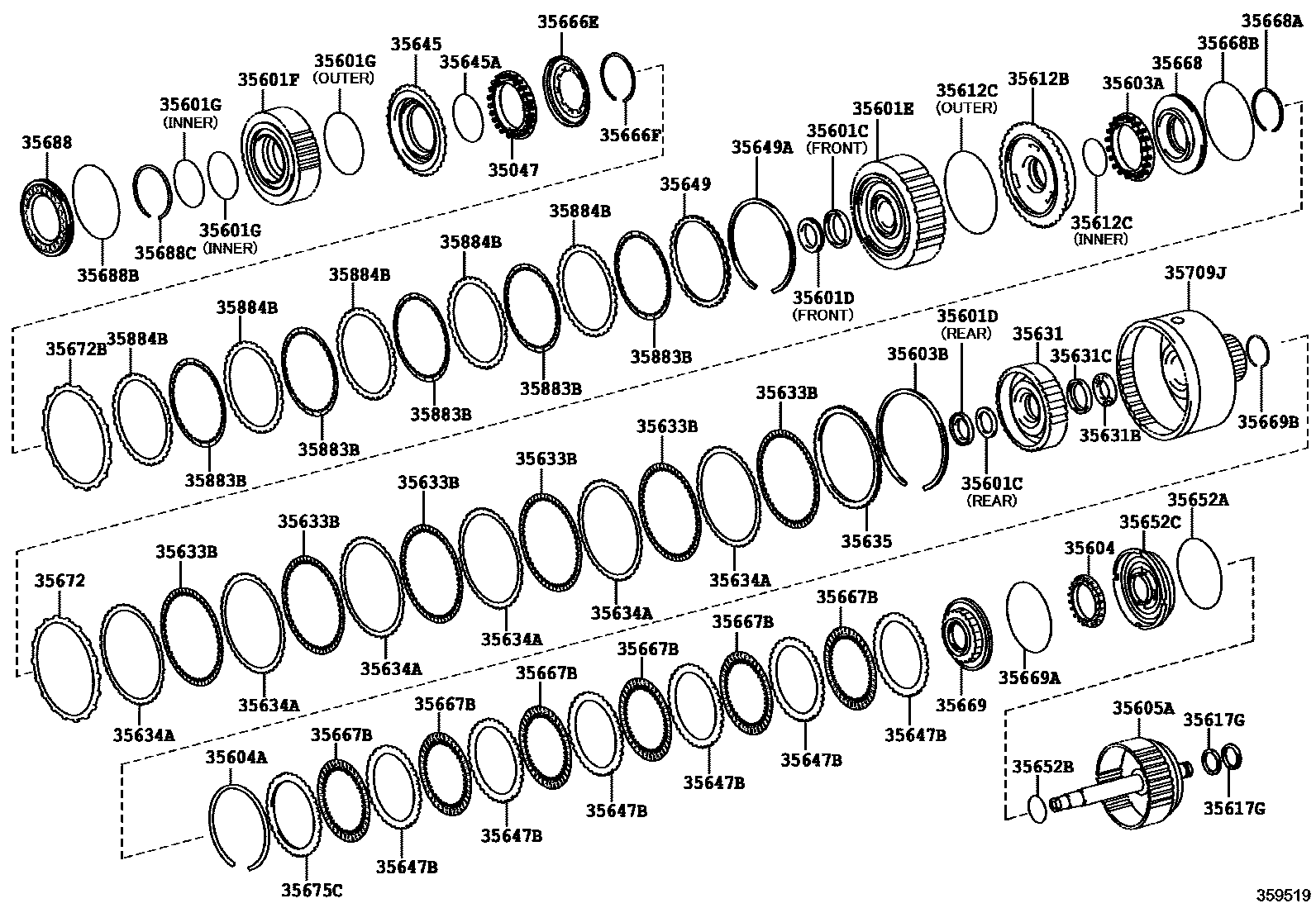

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35047SPRING SUB-ASSY, REVERSE CLUTCH RETURN
35601CRACE, THRUST BEARING (FOR FRONT CLUTCH DRUM)
35601DBEARING, THRUST NEEDLE ROLLER (FOR FRONT CLUTCH DRUM)
35601EDRUM SUB-ASSY, FORWARD CLUTCH
35601FDRUM SUB-ASSY, REVERSE CLUTCH
35601GRING, O (FOR REVERSE CLUTCH DRUM)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35603BRING, SHAFT SNAP (FOR FORWARD CLUTCH PISTON)
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35604ARING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON)
35605ADRUM SUB-ASSY, DIRECT CLUTCH
35612BPISTON, FORWARD CLUTCH
35612CRING, O(FOR FORWARD CLUTCH PISTON)
35617GRING, CLUTCH DRUM OIL SEAL
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)
35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35635FLANGE, FORWARD CLUTCH
35645PISTON, REVERSE CLUTCH
35645ARING, O (FOR REVERSE CLUTCH PISTON)
35647BPLATE, CLUTCH, NO.2
35649FLANGE, REVERSE CLUTCH
35649ARING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
35652ARING (FOR REAR CLUTCH OUTER)
35652BRING (FOR REAR CLUTCH PISTON INNER)
35652CPISTON, DIRECT CLUTCH
35666EBALANCER, REVERSE CLUTCH
35666FRING, SNAP (FOR REVERSE CLUTCH BALANCER)
35667BDISK, CLUTCH, NO.2
35668BALANCER, CLUTCH, NO.1
35668ARING, SNAP(FOR CLUTCH BALANCER)
35668BRING, O(FOR CLUTCH BALANCER)
35669BALANCER, CLUTCH, NO.2
35669ARING, O (FOR CLUTCH BALANCER NO.2)
35669BRING, SNAP (FOR CLUTCH BALANCER)
35672PLATE, CLUTCH CUSHION
35672BPLATE, CLUTCH CUSHION, NO.2
35675CFLANGE, DIRECT CLUTCH
35688BALANCER, CLUTCH, NO.3
35688BRING, O (FOR CLUTCH BALANCER NO.3)
35688CRING, SNAP (FOR CLUTCH BALANCER NO.3)
35709JDRUM SUB-ASSY, SUN GEAR INPUT
35883BDISC, REVERSE CLUTCH
35884BPLATE, REVERSE CLUTCH, NO1
46 parts on this diagram · 1 diagram in section
