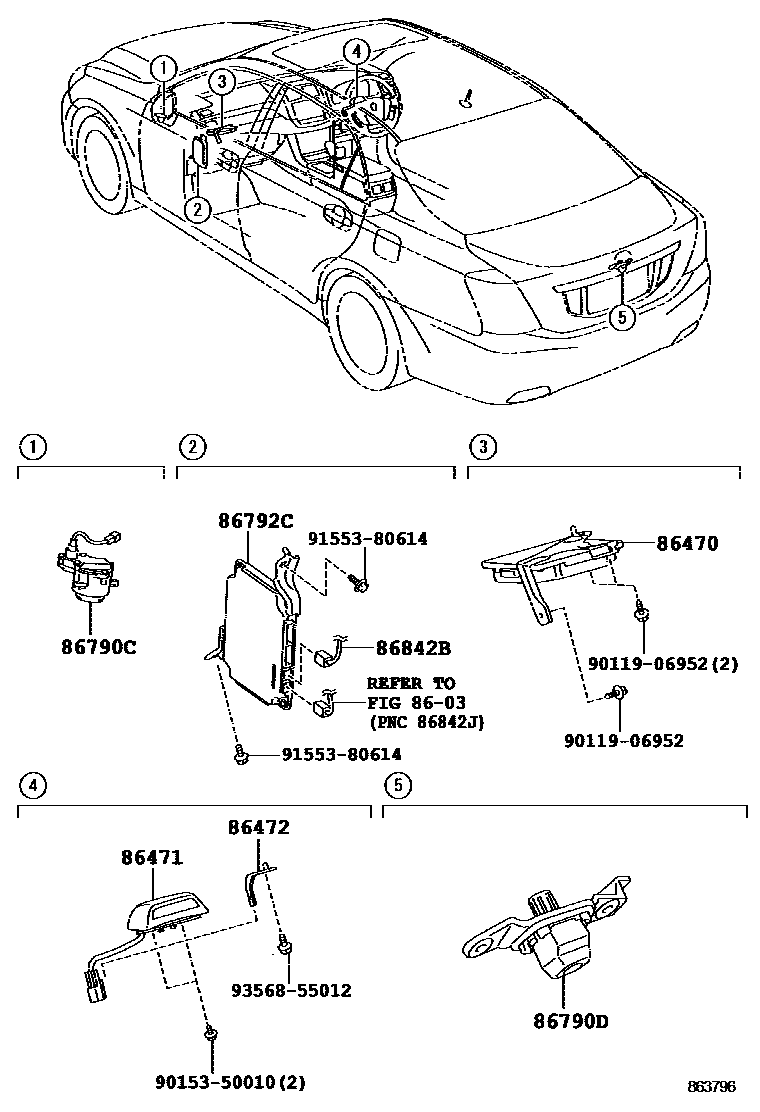

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1 0003 1

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86470COMPUTER ASSY, DRIVER MONITOR

main86470-30020

86471CAMERA, DRIVER MONITOR

main86471-30020

86472BRACKET, DRIVER MONITOR

main86472-50010

86790CCAMERA ASSY, TELEVISION, SIDE

86790DCAMERA ASSY, TELEVISION, RR

main86790-30130iURS206,UZS207200903

86792CCOMPUTER, PARKING ASSIST

86842BWIRE, NAVIGATION, NO.2

main86842-30340iURS206..G200903-201307

main86842-30340iURS206..G200903-201307

main86842-30340iURS206..G200903-201307

main86842-30340iURS206..G200903-201307

9011906952

main90119-06952

9015350010

main90153-50010

9155380614

main91553-80614

9356855012

main93568-55012

12 parts on this diagram · 3 diagrams in section
