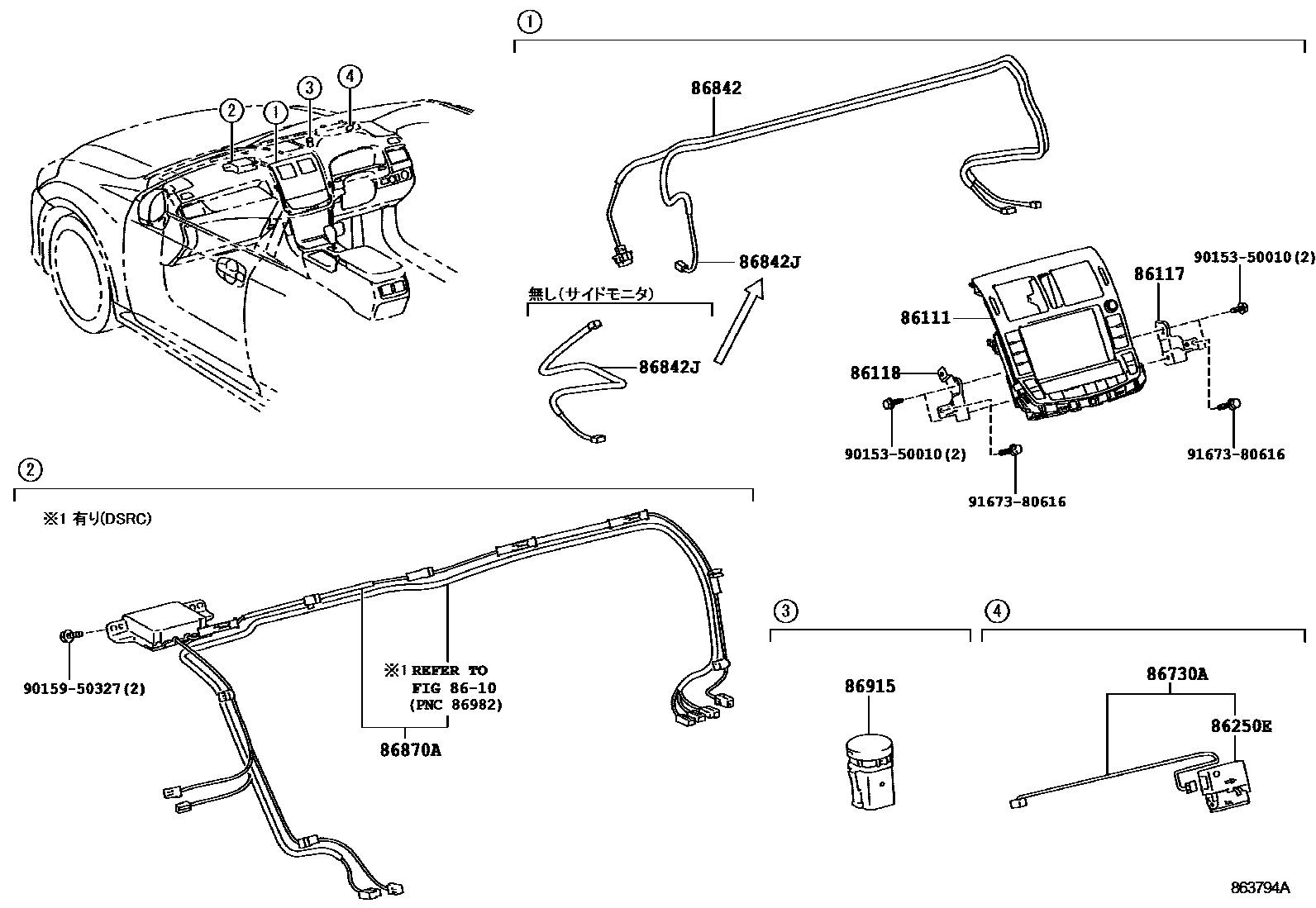

NAVIGATION & FRONT MONITOR DISPLAY

8610RADIO COMMUNICATION & ETC

→ Go to FIG 86-10

86111MULTI-DISPLAY

main86111-30490iURS206,UZS207200903

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-30070iURS206,UZS207200903

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-30030iURS206,UZS207200903

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52020iURS206,UZS207200903

86730AMICROPHONE ASSY, TELEPHONE

main86730-30160iURS206,UZS207200903-201307

86842WIRE, NAVIGATION, NO.1

main86842-30200iURS206,UZS207200903-201307

86842JWIRE, NAVIGATION, NO.2

main86842-30220iURS206,UZS207200903-201307

main86842-30250iURS206; UZS207200903-201307

86870AANTENNA ASSY, GPS & VICS

main86870-30150supersedes 86870-30130iURS206,UZS207201011-201307

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iURS206..G200903-201307

9015350010

main90153-50010

9015950327

main90159-50327

9167380616

main91673-80616

13 parts on this diagram · 1 diagram in section
