CLEARANCE & BACK SONAR

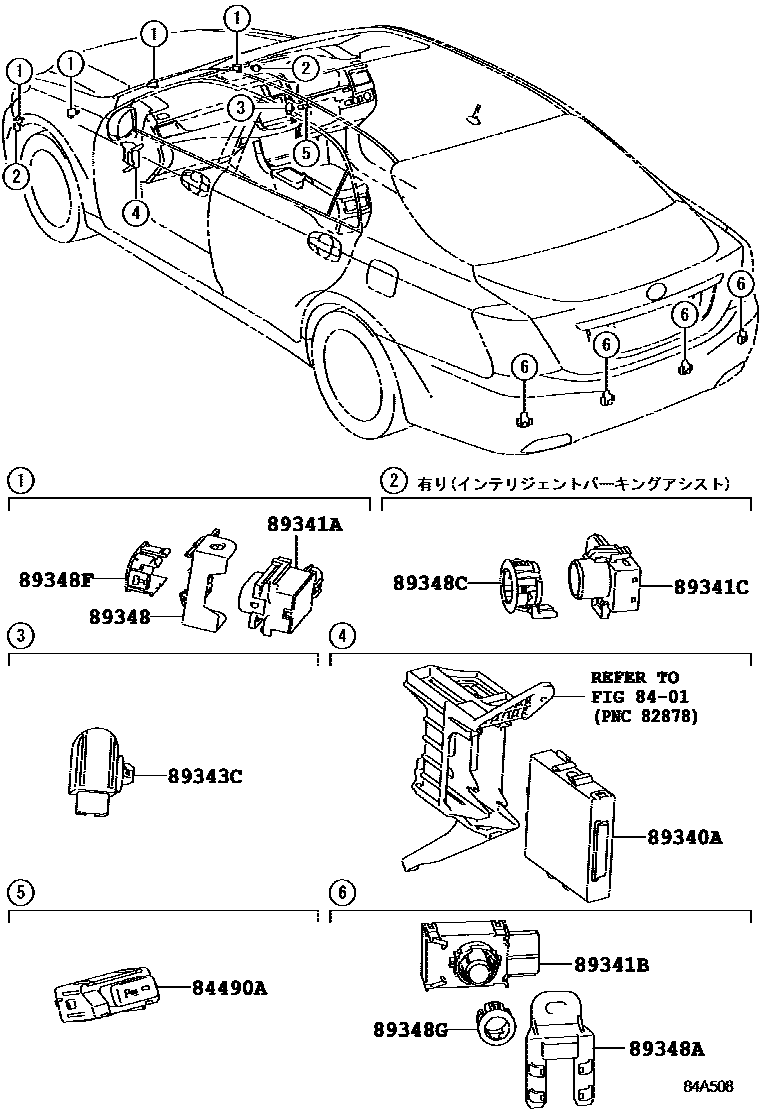

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-30010iURS206,UZS207200903

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-30120iURS206,UZS207200903

89341ASENSOR, ULTRASONIC, NO.1

main89341-30030-A1×4iURS206,UZS207200903-201307

main89341-30030-B0×4iURS206,UZS207200903-201307

main89341-30030-B1×4iURS206,UZS207200903-201307

main89341-30030-C0×4iURS206,UZS207200903-201307

main89341-30030-D0×4iURS206,UZS207200903-201011

main89341-30030-F0×4iURS206,UZS207200903-201307

main89341-30030-J0×4iURS206,UZS207200903-201307

89341BSENSOR, ULTRASONIC, NO.2

main89341-33110-A0×4iURS206,UZS207200903-201307

main89341-33110-B2×4iURS206,UZS207200903-201307

main89341-33110-B6×4iURS206,UZS207200903-201307

main89341-33110-C0×4iURS206,UZS207200903-201307

main89341-33110-D2×4iURS206,UZS207200903-201011

main89341-33110-F0×4iURS206,UZS207200903-201307

main89341-33110-J3×4iURS206,UZS207200903-201307

89341CSENSOR, ULTRASONIC, NO.3

main89341-30060-A0×2iURS206..A,G; URS206..C200903-201307

main89341-30060-B0×2iURS206..A,G; URS206..C200903-201307

main89341-30060-B2×2iURS206..A,G; URS206..C200903-201307

main89341-30060-C0×2iURS206..A,G; URS206..C200903-201307

main89341-30060-D1×2iURS206..A,G; URS206..C200903-201011

main89341-30060-F0×2iURS206..A,G; URS206..C200903-201307

main89341-30060-J0×2iURS206..A,G; URS206..C200903-201307

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-72010iURS206,UZS207200903

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-30020×4iURS206,UZS207200903-201307

89348ARETAINER, ULTRASONIC SENSOR, NO.2

main89348-33020×4iURS206,UZS207200903-201307

89348CRETAINER, ULTRASONIC SENSOR, NO.3

main89348-12010-A3×2iURS206..A,G; URS206..C200903-201307

main89348-12010-B0×2iURS206..A,G; URS206..C200903-201307

main89348-12010-B7×2iURS206..A,G; URS206..C200903-201307

main89348-12010-C1×2iURS206..A,G; URS206..C200903-201307

main89348-12010-D1×2iURS206..A,G; URS206..C200903-201011

main89348-12010-F1×2iURS206..A,G; URS206..C200903-201307

main89348-12010-J0×2iURS206..A,G; URS206..C200903-201307

89348FBEZEL, ULTRASONIC SENSOR, NO.1

main89348-30010-A1×4iURS206,UZS207200903-201307

main89348-30010-B0×4iURS206,UZS207200903-201307

main89348-30010-B1×4iURS206,UZS207200903-201307

main89348-30010-C0×4iURS206,UZS207200903-201307

main89348-30010-D0×4iURS206,UZS207200903-201011

main89348-30010-F0×4iURS206,UZS207200903-201307

main89348-30010-J0×4iURS206,UZS207200903-201307

89348GBEZEL, ULTRASONIC SENSOR, NO.2

main89348-33010-A0×4iURS206,UZS207200903-201307

main89348-33010-B2×4iURS206,UZS207200903-201307

main89348-33010-B7×4iURS206,UZS207200903-201307

main89348-33010-C0×4iURS206,UZS207200903-201307

main89348-33010-D2×4iURS206,UZS207200903-201011

main89348-33010-F0×4iURS206,UZS207200903-201307

main89348-33010-J3×4iURS206,UZS207200903-201307

12 parts on this diagram · 1 diagram in section
