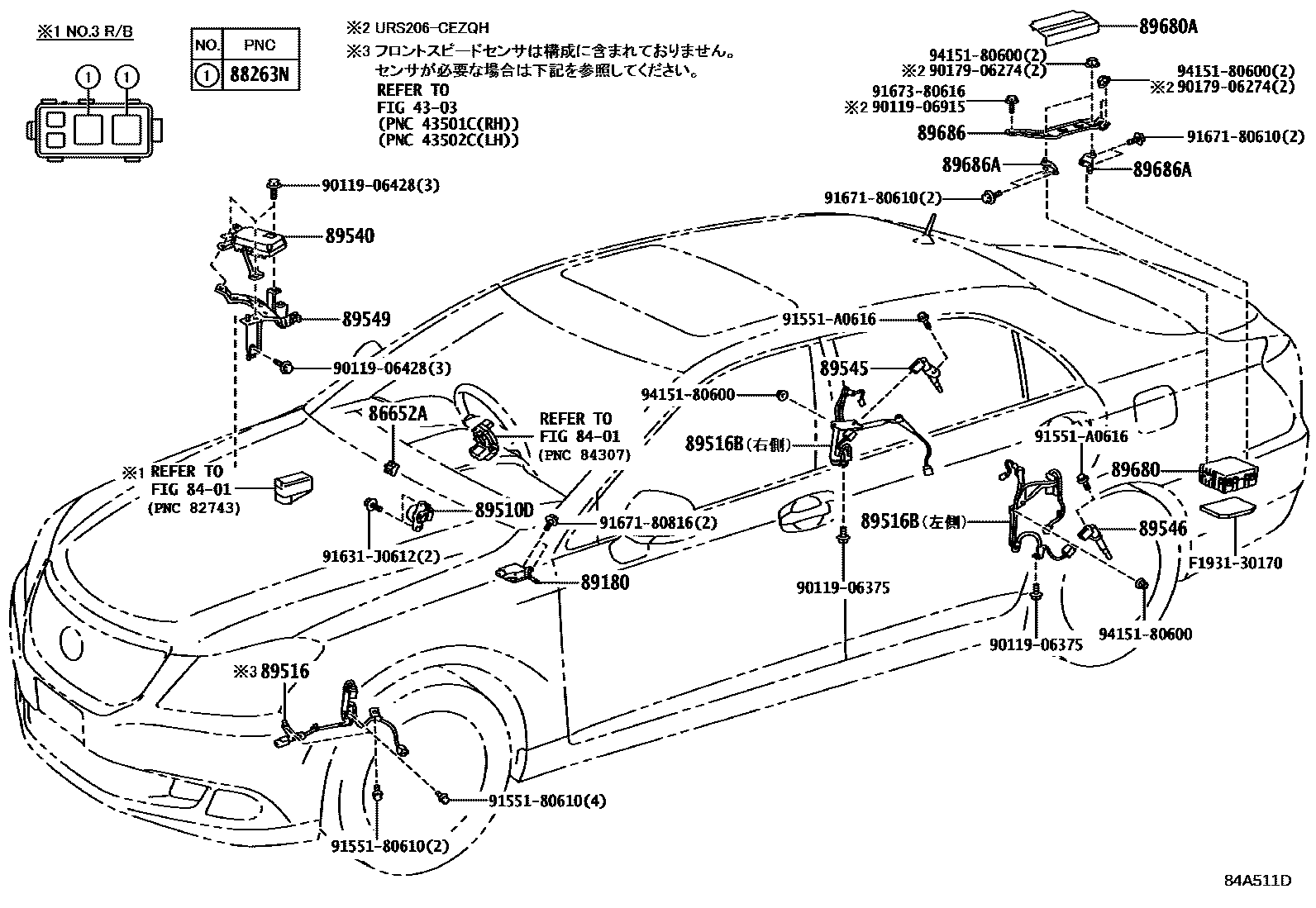

ABS & VSC

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iURS206,UZS207200903

88263NRELAY, ABS MOTOR

main88263-21010×2iURS206200903

89180SENSOR ASSY, YAWRATE

main89180-30090iURS206,UZS207200903

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-28010iURS206200903

89516WIRE, SKID CONTROL SENSOR

main89516-30040iUZS207200903-201204

main89516-30050iUZS207200903

main89516-30060iURS206200903

main89516-30070iURS206200903

main89516-30210iUZS207201205

89516BWIRE, SKID CONTROL SENSOR

main89516-22040iURS206,UZS207200903-201307

main89516-30120iURS206,UZS207200903-201307

89540COMPUTER ASSY, SKID CONTROL

main89540-30A20iURS206200903

89545SENSOR, SPEED, REAR RH

main89545-30070iURS206,UZS207200903-201307

89546SENSOR, SPEED, REAR LH

main89546-30070iURS206,UZS207200903-201307

89549BRACKET, SKID CONTROL COMPUTER

main88269-30190iURS206200903

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-33010iURS206200903

89680ACOVER, BRAKE CONTROL POWER SUPPLY

mainF197130020iURS206200903-201307

89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-30060iURS206200903

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-30070×2iURS206200903

9011906375

main90119-06375

9011906428

main90119-06428

9011906915

main90119-06915

9017906274

main90179-06274

9155180610

main91551-80610

91551A0616

main91551-A0616

91631J0612

main91631-J0612

9167180610

main91671-80610

9167180816

main91671-80816

9167380616

main91673-80616

9415180600

main94151-80600

F193130170

mainF1931-30170

27 parts on this diagram · 2 diagrams in section
