REAR MOULDING

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main90467-10162iURS206,UZS207200903

75825PAD, LUGGAGE COMPARTMENT DOOR MOULDING

main75825-30120iURS206,UZS207200903-201005

sub75825-30121

main75825-30121iURS206,UZS207201005

75826BPAD, LUGGAGE COMPARTMENT DOOR MOULDING, NO.2

main75826-30100iURS206,UZS207200903

75827CPAD, LUGGAGE COMPERTMENT DOOR MOULDING, NO.3

main75826-30110iURS206,UZS207200903

75827DPAD, LUGGAGE COMPARTMENT DOOR MOULDING, RH

main75827-30110iURS206,UZS207200903

75828DPAD, LUGGAGE COMPARTMENT DOOR MOULDING, LH

main75828-30100iURS206,UZS207200903

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-30900-A0iURS206,UZS207200903-200910

WHITE PEARL CS.,062

sub76801-30901

main76801-30900-B0iURS206,UZS207200903-200910

PREMIUM SILVER PEARL,1F3

sub76801-30901

main76801-30900-B1iURS206,UZS207200903-200910

SILVER ME.,1F7

sub76801-30901

main76801-30900-C0iURS206,UZS207200903-200910

BLACK,202

sub76801-30901

main76801-30900-D0iURS206,UZS207200903-200910

BLACKISH RED MC.,3R0

sub76801-30901

main76801-30900-F0iURS206,UZS207200903-200910

SATIN GOLD ME.,5A8

sub76801-30901

main76801-30900-J0iURS206,UZS207200903-200910

DK.BLUE MC.,8S6

sub76801-30901

main76801-30901-A0iURS206,UZS207200910-201005

WHITE PEARL CS.,062

sub76801-30903

main76801-30901-B0iURS206,UZS207200910-201005

PREMIUM SILVER PEARL,1F3

sub76801-30903

main76801-30901-B1iURS206,UZS207200910-201005

SILVER ME.,1F7

sub76801-30903

main76801-30901-C0iURS206,UZS207200910-201005

BLACK,202

sub76801-30903

main76801-30901-D0iURS206,UZS207200910-201005

BLACKISH RED MC.,3R0

sub76801-30903

main76801-30901-F0iURS206,UZS207200910-201005

SATIN GOLD ME.,5A8

sub76801-30903

main76801-30901-J0iURS206,UZS207200910-201005

DK.BLUE MC.,8S6

sub76801-30903

main76801-30903-A0iURS206,UZS207201005

WHITTE PEARL CS.,062

sub76801-30903

main76801-30903-B0iURS206,UZS207201005

PREMIUM SILVER PEARL,1F3

sub76801-30903

main76801-30903-B1iURS206,UZS207201005

SILVER ME.,1F7

sub76801-30903

main76801-30903-C0iURS206,UZS207201005

BLACK,202

sub76801-30903

main76801-30903-D0iURS206,UZS207201005

BLACKISH RED MC.,3R0

sub76801-30903

main76801-30903-F0iURS206,UZS207201005

SATIN GOLD ME.,5A8

sub76801-30903

main76801-30903-J0iURS206,UZS207201005

DK.BLUE MC.,8S6

sub76801-30903

8112

8401

8606

9010905043

main90109-05043

9011905021

main90119-05021

9017905102

main90179-05102

9021012008

main90210-12008

9056204007

main90562-04007

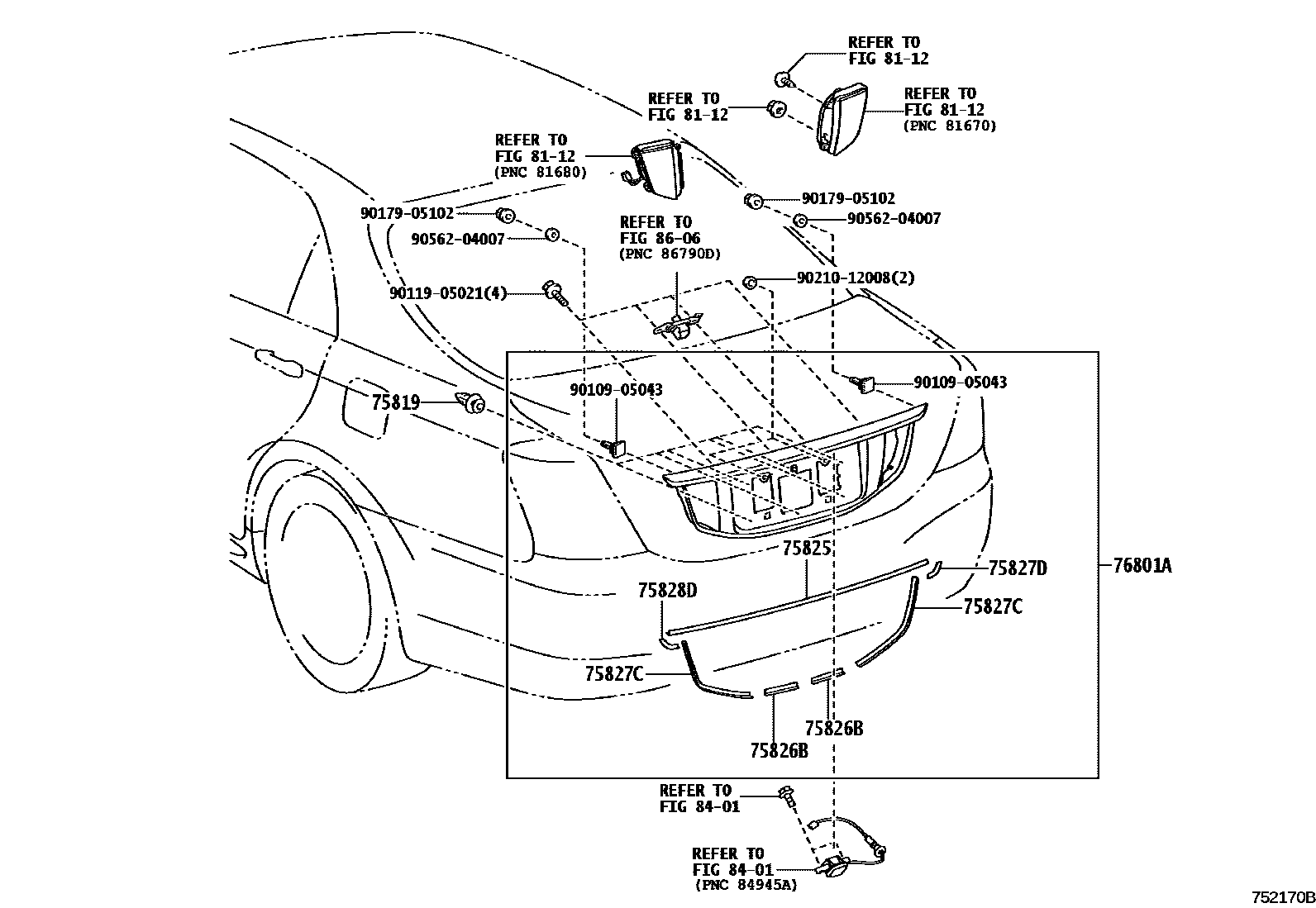

15 parts on this diagram · 1 diagram in section
