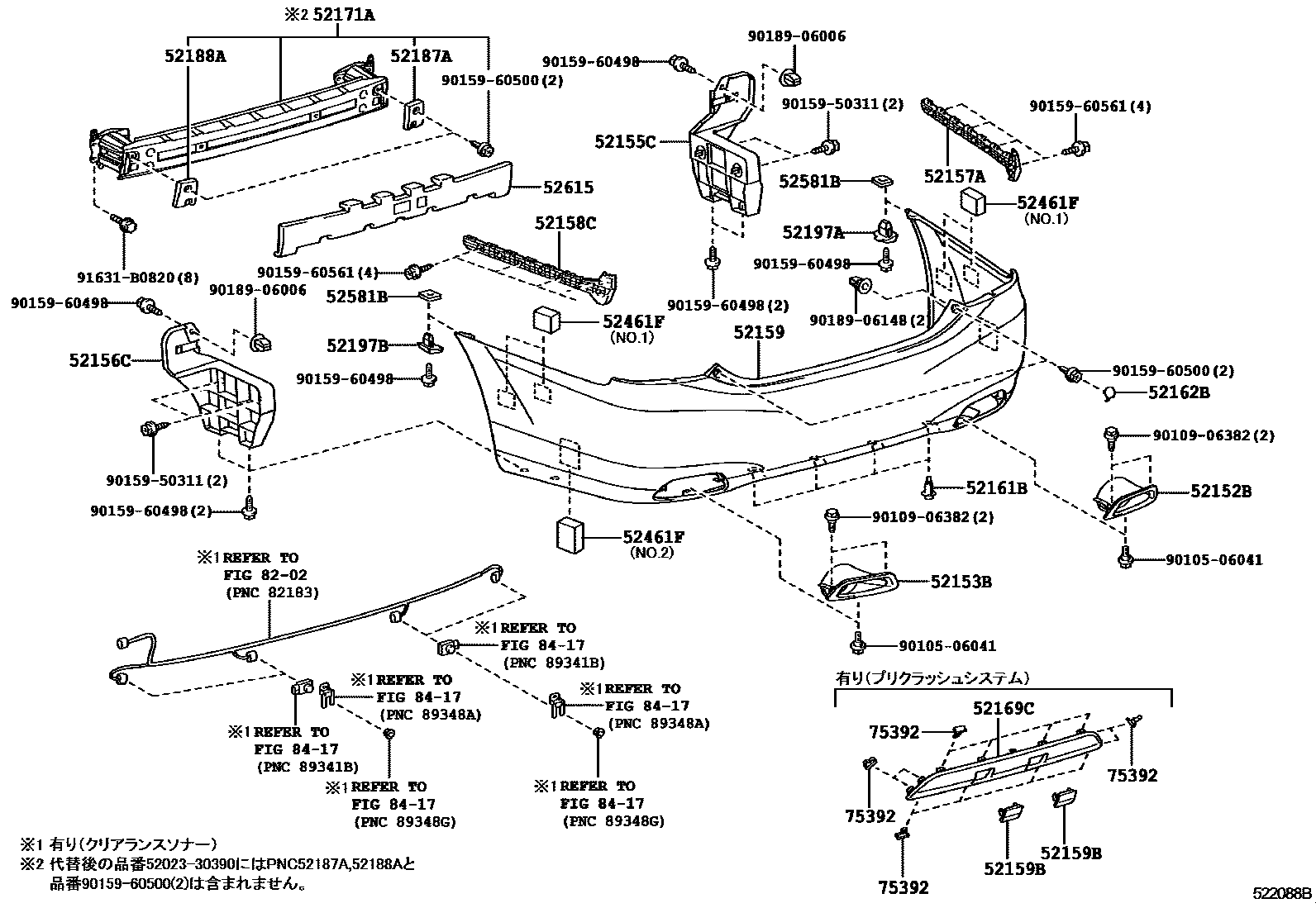

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52152BEXTENSION, REAR BUMPER, RH

main52106-30100iURS206,UZS207200903

52153BEXTENSION, REAR BUMPER, LH

main52107-30120iURS206,UZS207200903

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-30100iURS206,UZS207200903

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-30070iURS206,UZS207200903

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-30080iURS206,UZS207200903

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-30100iURS206,UZS207200903

52159COVER, REAR BUMPER

main52159-30590-A0supersedes 52159-30580-A0iURS206,UZS207200903-201307

main52159-30590-B0supersedes 52159-30580-B0iURS206,UZS207200903-201307

main52159-30590-B1supersedes 52159-30580-B1iURS206,UZS207200903-201307

main52159-30590-C0supersedes 52159-30580-C0iURS206,UZS207200903-201307

main52159-30590-D0supersedes 52159-30580-D0iURS206,UZS207200903-201011

main52159-30590-F0supersedes 52159-30580-F0iURS206,UZS207200903-201307

main52159-30590-J0supersedes 52159-30580-J0iURS206,UZS207200903-201307

main52159-30600-A0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201307

main52159-30600-B0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201307

main52159-30600-B1iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201307

main52159-30600-C0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201307

main52159-30600-D0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

main52159-30600-F0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201307

main52159-30600-J0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201307

main52159-30610-A0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

main52159-30610-B0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

main52159-30610-B1iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

main52159-30610-C0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

main52159-30610-D0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

main52159-30610-F0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

main52159-30610-J0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

52159BPLATE, REAR BUMPER

main52162-30140-A0×2iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201307

main52162-30140-B2×2iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201307

main52162-30140-C0×2iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201307

main52162-30140-D0×2iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

main52162-30140-F1×2iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

main52162-30140-J0×2iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

52161BPIECE, REAR BUMPER

main52161-16010×4iURS206,UZS207200903

52162BPLATE, REAR BUMPER, NO.1

main52162-30130-A0×2iURS206,UZS207200903-201307

WHITE PEARL CS.,062

main52162-30130-B0×2iURS206,UZS207200903-201307

PREMIUM SILVER PEARL,1F3

main52162-30130-B1×2iURS206,UZS207200903-201307

SILVER ME.,1F7

main52162-30130-C0×2iURS206,UZS207200903-201307

BLACK,202

main52162-30130-D0×2iURS206,UZS207200903-201011

BLACKISH RED MC.,3R0

main52162-30130-F0×2iURS206,UZS207200903-201307

SATIN GOLD ME.,5A8

main52162-30130-J0×2iURS206,UZS207200903-201307

DK.BLUE MC.,8S6

52169CCOVER, REAR BUMPER, LOWER

main52169-30040-A0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

main52169-30040-B0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

main52169-30040-C0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

main52169-30040-D0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

main52169-30040-F0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201307

main52169-30040-J0iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-30350iURS206,UZS207200903-201211

main52023-30390iURS206,UZS207201212

52187AREINFORCEMENT, REAR BUMPER ARM, RH

main52187-30100iURS206,UZS207200903

52188AREINFORCEMENT, REAR BUMPER ARM, LH

main52188-30120iURS206,UZS207200903

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-30040iURS206,UZS207200903

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-30040iURS206,UZS207200903

52461FPAD, REAR BUMPER

main52462-30070×4iURS206,UZS207200903

main52462-30080×2iURS206,UZS207200903

52581BPROTECTOR, REAR BUMPER

main52581-30060×2iURS206,UZS207200903

52615ABSORBER, REAR BUMPER ENERGY

main52615-30280iURS206,UZS207200903

75392RETAINER, OUTSIDE MOULDING

main75392-35200×12iURS206,UZS207..C,G,IFOUR; URS206..C,G; URS206..G200903-201011

8202WIRING & CLAMP

→ Go to FIG 82-02

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

9010506041

main90105-06041

9010906382

main90109-06382

9015950311

main90159-50311

9015960498

main90159-60498

9015960500

main90159-60500

9015960561

main90159-60561

9018906006

main90189-06006

9018906148

main90189-06148

91631B0820

main91631-B0820

31 parts on this diagram · 2 diagrams in section
