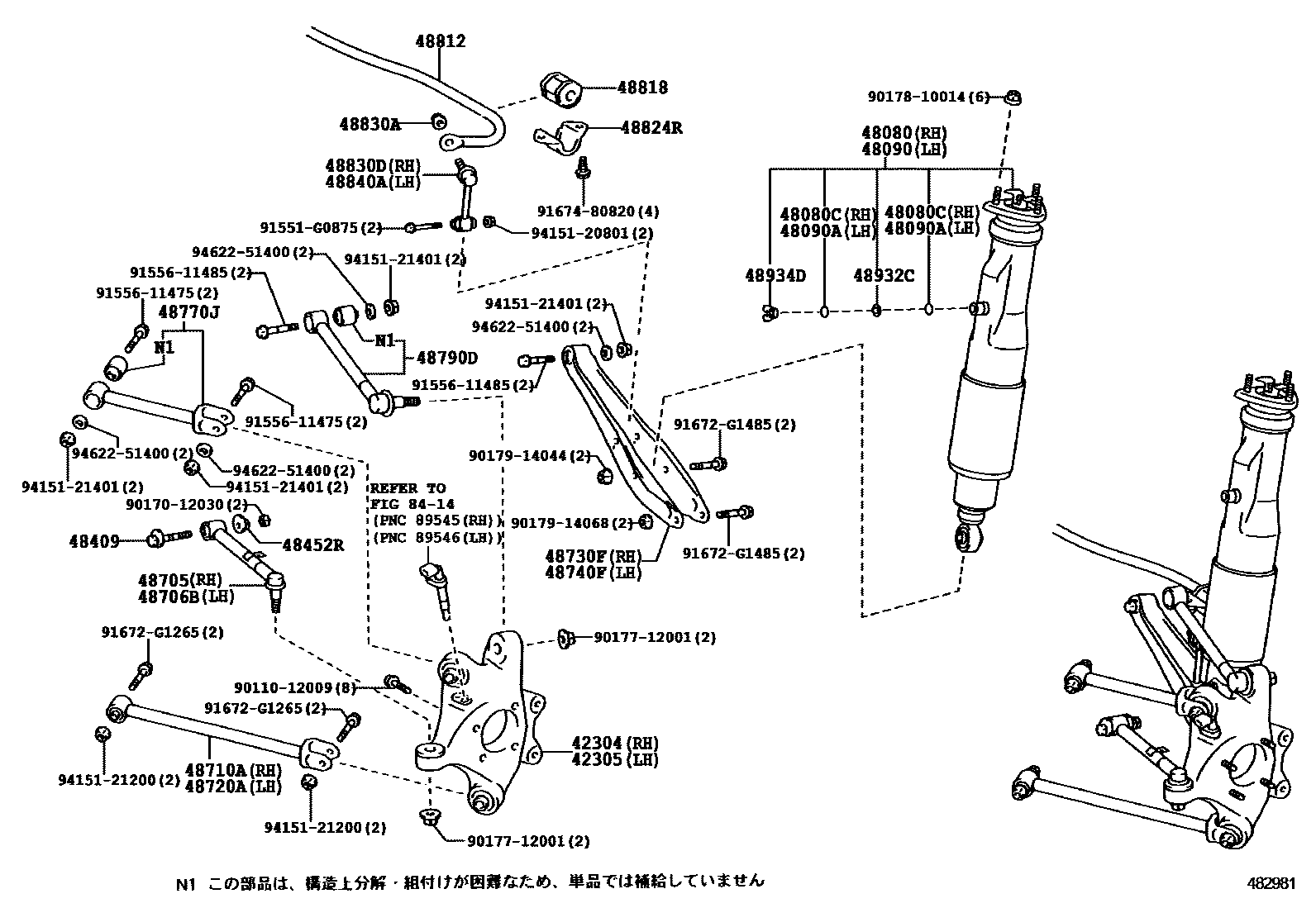

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-30100iURS206,UZS207200903-201212

main42304-30140iURS206,UZS207201212

main42304-30110iURS206..A200903-201212

main42304-30150iURS206..A201212

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-30100iURS206,UZS207200903-201212

main42305-30140iURS206,UZS207201212

main42305-30110iURS206..A200903-201212

main42305-30150iURS206..A201212

48080CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER

main48080-30180iURS206,UZS207200903-201010

main48080-30181iURS206,UZS207201011

48080CRING, O(FOR REAR PNEUMATIC CYLINDER RH)

main90301-04011×2iURS206,UZS207200903

48090CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER

main48090-30180iURS206,UZS207200903-201010

main48090-30181iURS206,UZS207201011

48090ARING, O(FOR REAR PNEUMATIC CYLINDER LH)

main90301-04011×2iURS206,UZS207200903

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-30020×2iURS206,UZS207200903

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-30040×2iURS206,UZS207200903

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-30110iURS206,UZS207200903

main48705-30130iURS206..A200903

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48706-30060iURS206,UZS207200903

main48706-30070iURS206..A200903

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-30220iURS206,UZS207200903

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-30220iURS206,UZS207200903

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-30130iURS206,UZS207200903

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-30130iURS206,UZS207200903

48770JARM ASSY, UPPER CONTROL, REAR NO.1

main48770-30100×2iURS206,UZS207200903

main48770-30110×2iURS206..A200903

48790DARM ASSY, UPPER CONTROL, REAR NO.2

main48790-30110×2iURS206,UZS207200903

main48790-30120×2iURS206..A200903

48812BAR, STABILIZER, REAR

main48812-30380iURS206,UZS207200903

main48812-30390iURS206..A200903

48818BUSH, STABILIZER, REAR

main48818-30160×2iURS206,UZS207200903

main48818-30170×2iURS206..A200903

48824RBRACKET, STABILIZER(FOR REAR)

main48832-30060×2iURS206,UZS207200903

48830ANUT(FOR REAR STABILIZER LINK)

main90179-12151×2iURS206,UZS207200903

48830DLINK ASSY, REAR STABILIZER, RH

main48830-30090iURS206,UZS207200903

48840ALINK ASSY, REAR STABILIZER, LH

main48830-30090iURS206,UZS207200903

48932CPLATE, HEIGHT CONTROL TUBE

main48932-30010×2iURS206,UZS207200903

48934DCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010×2iURS206,UZS207200903

8414ABS & VSC

→ Go to FIG 84-14

9011012009

main90110-12009

9017012030

main90170-12030

9017712001

main90177-12001

9017810014

main90178-10014

9017914044

main90179-14044

9017914068

main90179-14068

91551G0875

main91551-G0875

9155611475

main91556-11475

9155611485

main91556-11485

91672G1265

main91672-G1265

91672G1485

main91672-G1485

9167480820

main91674-80820

9415120801

main94151-20801

9415121200

main94151-21200

9415121401

main94151-21401

9462251400

main94622-51400

41 parts on this diagram · 1 diagram in section
