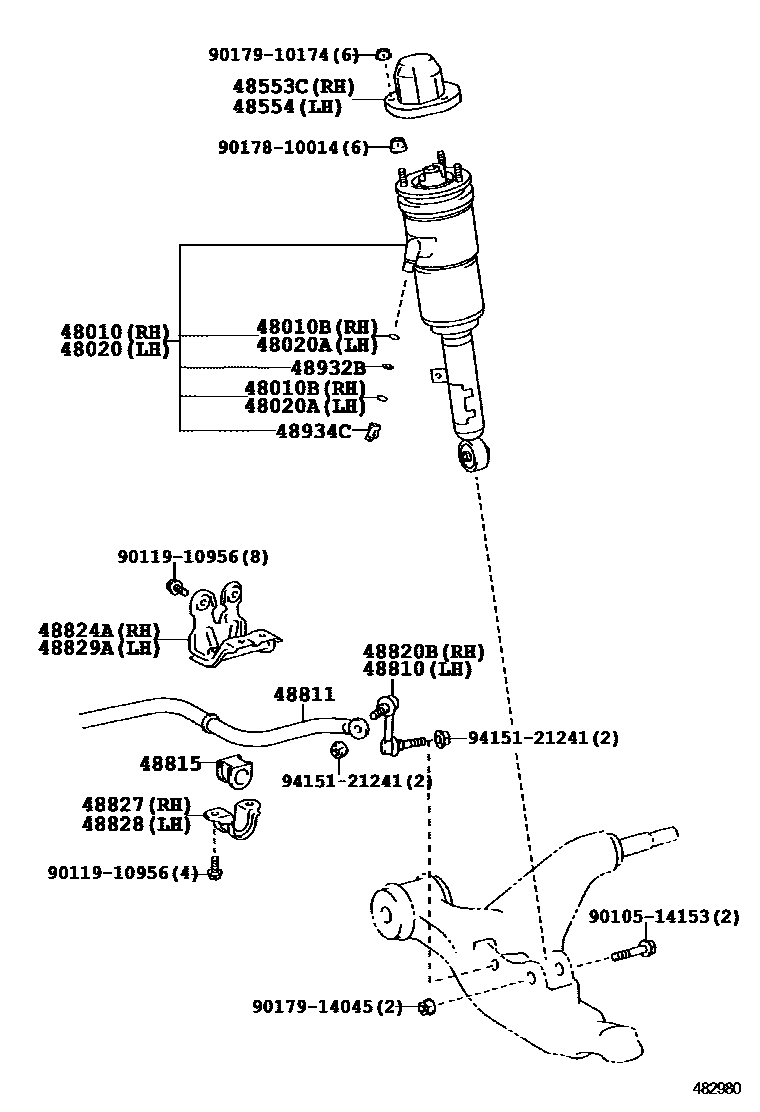

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48010CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER

main48010-30210iURS206200903-201010

main48010-30211iURS206201011

main48010-30220iUZS207200903-201010

main48010-30221iUZS207201011

48010BRING, O(FOR FRONT PNEUMATIC CYLINDER RH)

main90301-04011×2iURS206,UZS207200903

48020CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER

main48020-30210iURS206200903-201010

main48020-30211iURS206201011

main48020-30220iUZS207200903-201010

main48020-30221iUZS207201011

48020ARING, O(FOR FRONT PNEUMATIC CYLINDER LH)

main90301-04011×2iURS206,UZS207200903

48553CCAP, FRONT SHOCK ABSORBER, RH

main48553-30100iURS206,UZS207200903

48554CAP, FRONT SHOCK ABSORBER, LH

main48553-30100iURS206,UZS207200903

48810LINK ASSY, FRONT STABILIZER, LH

main48810-30070iURS206200903

main48810-30080iUZS207200903

48811BAR, STABILIZER, FRONT

main48811-30740iURS206200903

main48811-30750iUZS207200903

main48811-30760iURS206..A200903

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-30630×2iURS206,UZS207200903

main48815-30561×2iURS206..A200903

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-30090iURS206200903

main48820-30100iUZS207200903

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-30090iURS206200903-201106

main48809-30130iURS206201107

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-30130iURS206200903

main48824-30140iUZS207200903

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-30130iURS206200903

main48824-30140iUZS207200903

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48809-30090iURS206200903-201106

main48809-30130iURS206201107

48932BPLATE, HEIGHT CONTROL TUBE

main48932-30010×2iURS206,UZS207200903

48934CCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010×2iURS206,UZS207200903

9010514153

main90105-14153

9011910956

main90119-10956

9017810014

main90178-10014

9017910174

main90179-10174

9017914045

main90179-14045

9415121241

main94151-21241

22 parts on this diagram · 2 diagrams in section
