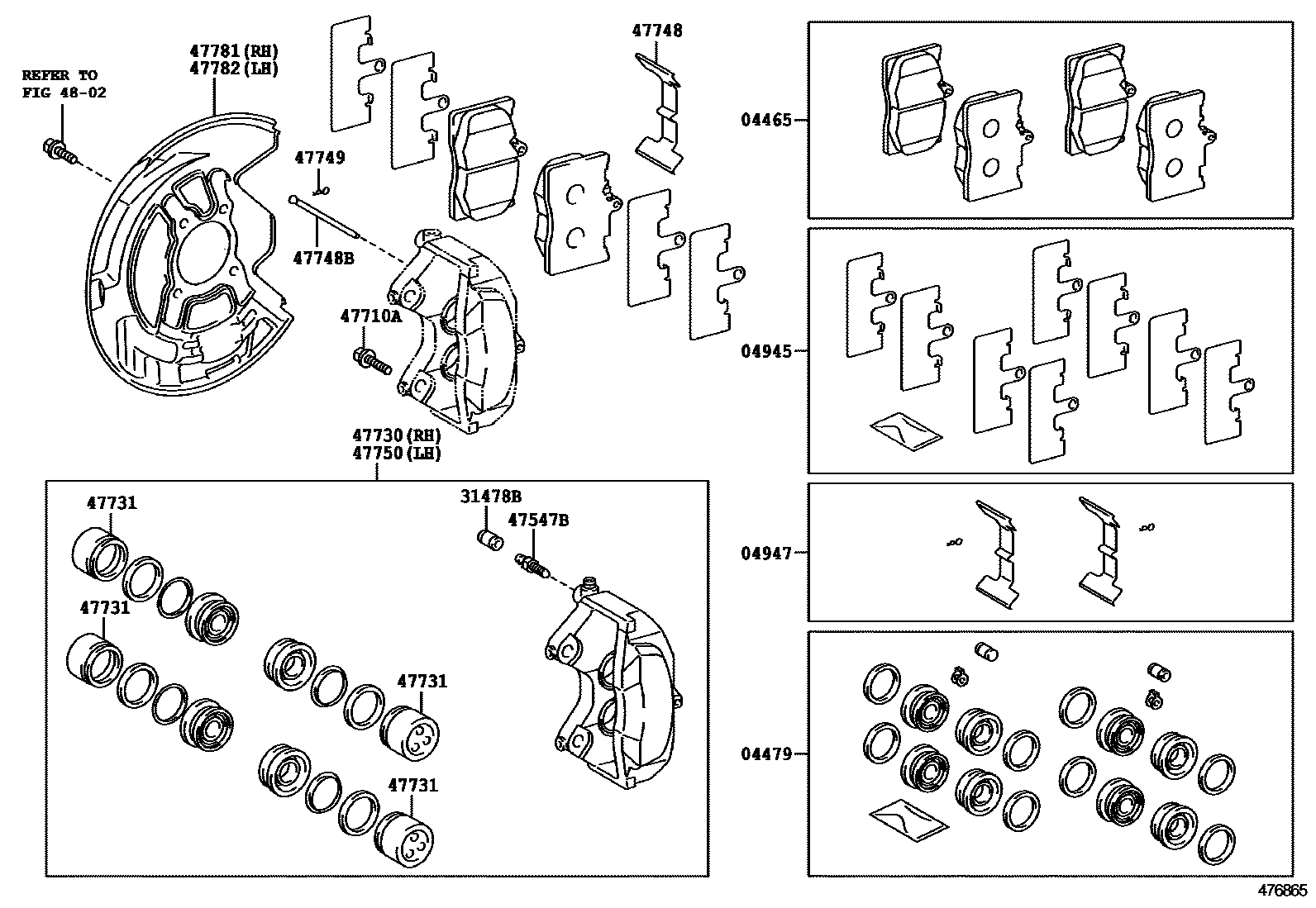

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-30340iUZS207200903

main04465-30430iURS206200903-201109

sub04465-30470

main04465-30470iURS206201110

sub04465-30510

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-30260iUZS207200903

main04479-50130iURS206200903

sub04478-22040

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-30180iUZS207200903

main04945-30320iURS206200903-200908

sub04945-30321

main04945-30321iURS206200908-201109

sub04945-30350

main04945-30330iURS206201110

sub04945-30350

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22070iURS206200903

main04947-30150iUZS207200903

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iURS206200903

main31478-30010iUZS207200903

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iUZS207200903

main47547-50010iURS206200903

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415iURS206,UZS207201111-201307

main91552-K1240iURS206,UZS207200903-201111

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22460iURS206200903

main47730-30530iUZS207200903

47731PISTON, FRONT DISC BRAKE

main47731-33070iUZS207200903

sub47731-30570

main47731-50070iURS206200903

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-22460iURS206200903

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50020iURS206200903

47749CLIP, PIN HOLD

main47749-50030iURS206200903

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22460iURS206200903

main47750-30530iUZS207200903

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22200iURS206200903-201307

main47781-30230iUZS207200903-201307

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22200iURS206200903-201307

main47782-30230iUZS207200903-201307

4802

16 parts on this diagram · 2 diagrams in section
