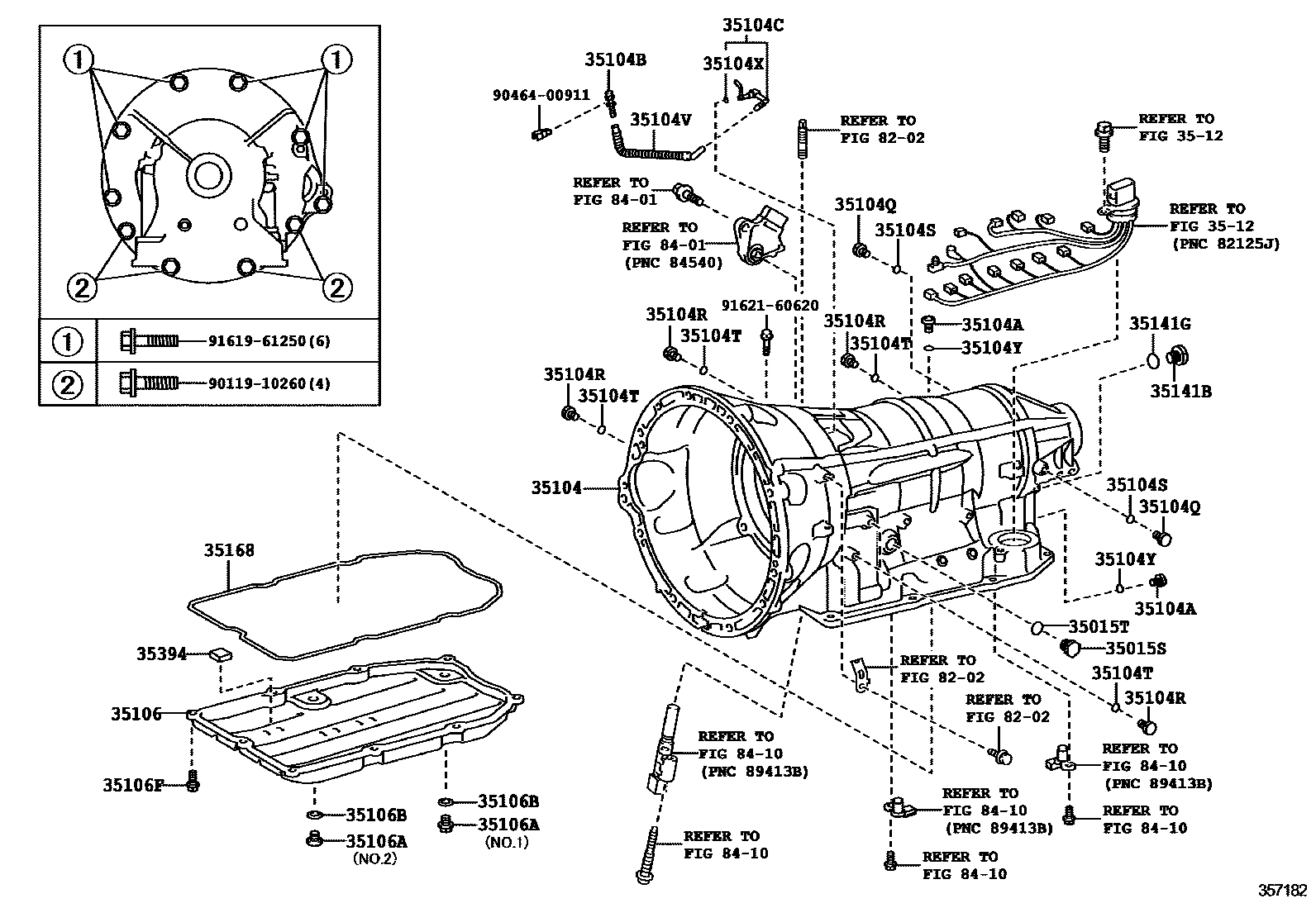

TRANSMISSION CASE & OIL PAN (ATM)

0001 1AA80E 0002 1A761H

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iURS206,UZS207200903

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iURS206,UZS207200903

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-30220iUZS207200903

main35104-50030iURS206200903

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×5iUZS207200903

main90341-14011×2iURS206200903

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iURS206200903

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03197iURS206200903

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-12036×2iURS206200903

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-08001×5iURS206200903

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-09026×2iURS206200903

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-06196×5iURS206200903

35104VHOSE (FOR BREATHER PLUG)

main90447-11059iURS206200903

35104XRING, O (FOR BREATHER PLUG)

main90301-04015iURS206200903

35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030×2iURS206200903

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30260iUZS207200903

main35106-30300iURS206200903

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iURS206; UZS207200903

main90341-10021iURS206200903

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iURS206,UZS207200903

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173×20iUZS207200903

main90119-06982×9iURS206200903

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iUZS207200903

main90341-24017iURS206200903

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iUZS207200903

main90301-20013iURS206200903

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-50010iURS206200903

main35168-60010iUZS207200903

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×6iUZS207200903

main35394-48010×3iURS206200903

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011910260

main90119-10260

9046400911

main90464-00911

9161961250

main91619-61250

9162160620

main91621-60620

29 parts on this diagram · 2 diagrams in section
