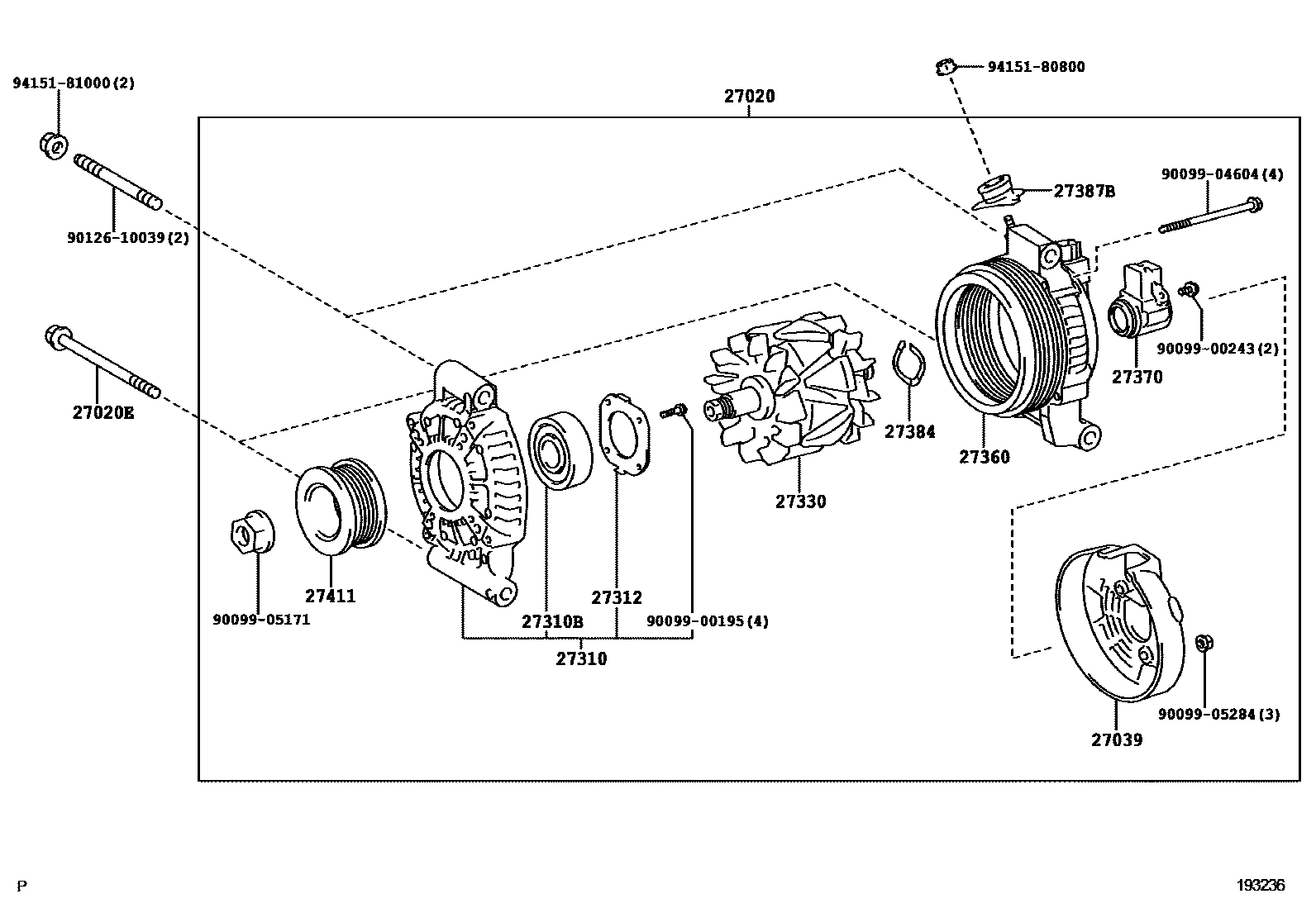

ALTERNATOR

0001 112V 180A 0002 112V 130A

27020ALTERNATOR ASSY

main27060-38041i1URFSE..URS206200903

sub27060-38070

main27060-50310i3UZFE..UZS207200903

27020EBOLT(FOR ALTERNATOR)

main90105-10557i1URFSE..URS206200903

main90119-10791i3UZFE..UZS207200903

27039COVER, ALTERNATOR REAR END

main27039-38130i1URFSE..URS206200903

main27039-50430i3UZFE..UZS207200903

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-38130i1URFSE..URS206200903

main27310-50310i3UZFE..UZS207200903

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i3UZFE..UZS207200903

main90099-10226i1URFSE..URS206200903

27312PLATE, RETAINER

main27312-42010i1URFSE..URS206200903

main27312-72100i3UZFE..UZS207200903

27330ROTOR ASSY, ALTERNATOR

main27330-33090i3UZFE..UZS207200903

main27330-38140i1URFSE..URS206200903

27360COIL ASSY, ALTERNATOR

main27360-38130i1URFSE..URS206200903

main27360-50280i3UZFE..UZS207200903

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58460i1URFSE,3UZFE..URS206,UZS207200903

27384WASHER

main27384-38130i1URFSE..URS206200903

main27384-50030i3UZFE..UZS207200903

27387INSULATOR, TERMINAL

main27387-50310i3UZFE..UZS207200903

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-38130i1URFSE..URS206200903

27411PULLEY, ALTERNATOR

main27411-50030i1URFSE..URS206200903

main27411-50190i3UZFE..UZS207200903

9009900195

main90099-00195

9009900243

main90099-00243

9009904604

main90099-04604

9009905171

main90099-05171

9009905284

main90099-05284

9012610039

main90126-10039

9415180800

main94151-80800

9415181000

main94151-81000

21 parts on this diagram · 2 diagrams in section
