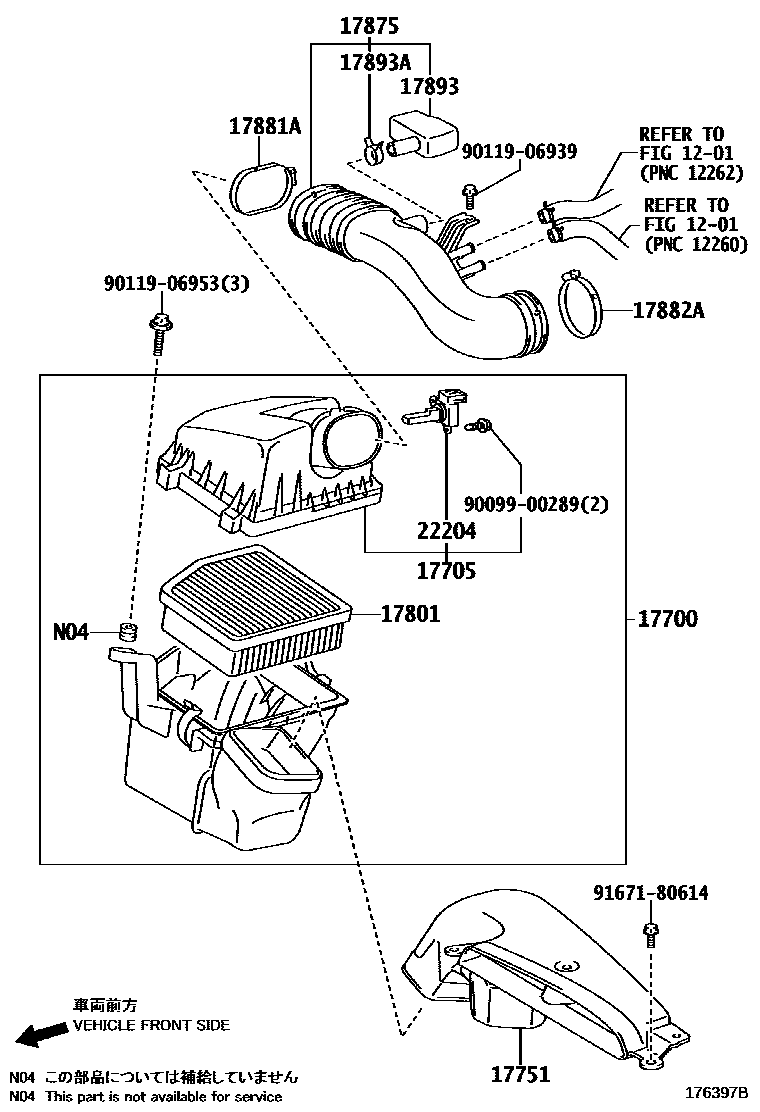

AIR CLEANER

0001 1 0002 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-38200i1URFSE..URS206200903-201204

main17700-38201i1URFSE..URS206201205

main17700-50271i3UZFE..UZS207200903

17705CAP SUB-ASSY, AIR CLEANER

main17705-38140i1URFSE..URS206200903

main17705-50180i3UZFE..UZS207200903

17751INLET, AIR CLEANER, NO.1

main17751-38070i1URFSE..URS206200903

main17751-50160i3UZFE..UZS207200903

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-38040i1URFSE..URS206200903-201204

main17801-38041i1URFSE..URS206201205

main17801-50060i3UZFE..UZS207200903

17875PIPE, INTAKE AIR CONNECTOR

main17875-38030i1URFSE..URS206200903

main17875-50300i3UZFE..UZS207200903

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-01064i1URFSE..URS206200903

main90460-90005i3UZFE..UZS207200903

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-90005i3UZFE..UZS207200903

main90460-95005i1URFSE..URS206200903

17893RESONATOR, INTAKE AIR

main17893-38030i1URFSE..URS206200903

17893ACLAMP, HOSE

main90467-26007i1URFSE..URS206200903-201007

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-15010i3UZFE..UZS207200903

main22204-38020i1URFSE..URS206200903

9009900289

main90099-00289

9011906939

main90119-06939

9011906953

main90119-06953

9167180614

main91671-80614

15 parts on this diagram · 2 diagrams in section
