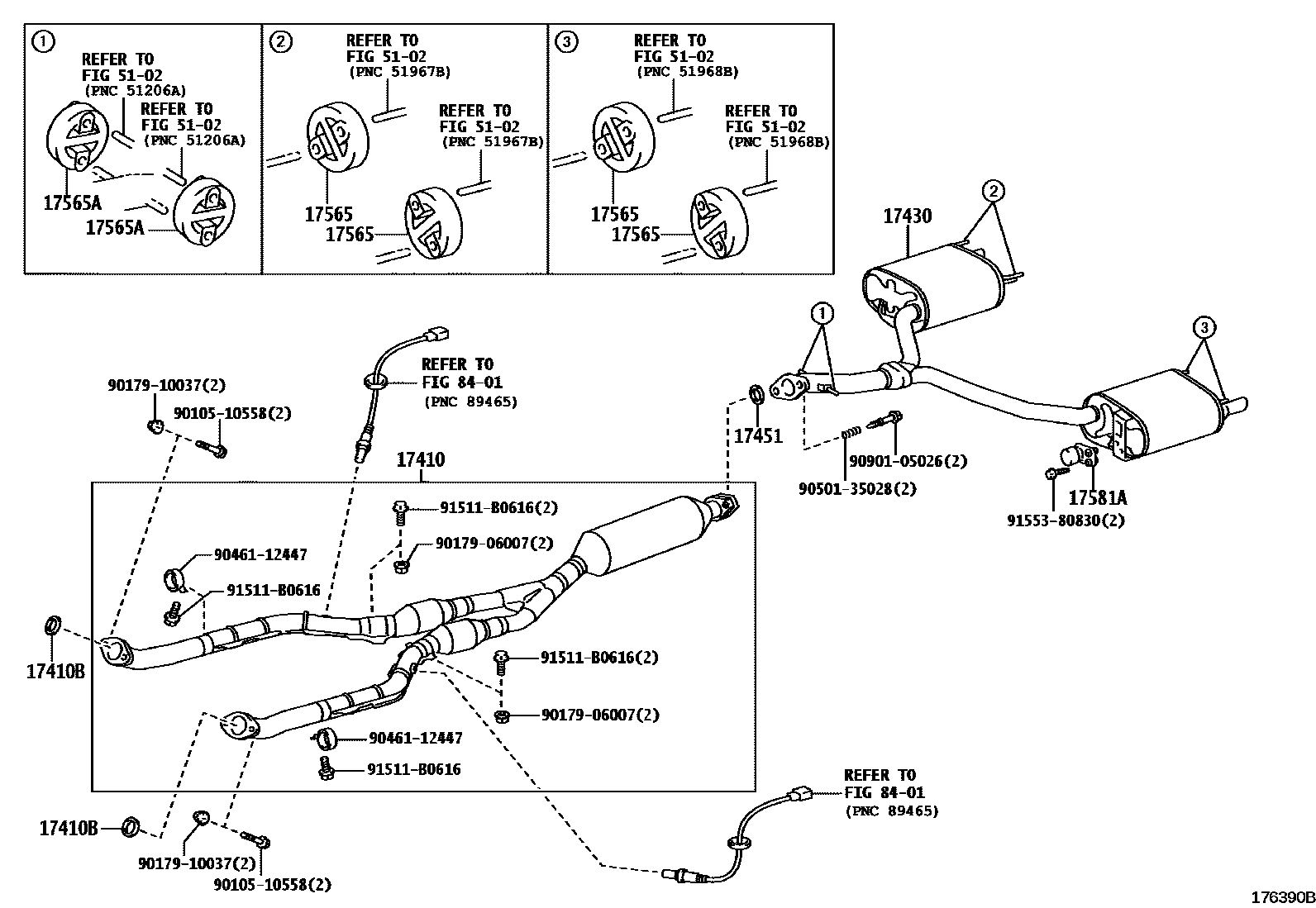

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-38350i1URFSE..URS206200903-201001

main17410-38351i1URFSE..URS206201002-201301

main17410-38352i1URFSE..URS206201302

main17410-50540i3UZFE..UZS207200903-201001

main17410-50541i3UZFE..UZS207201002-201301

main17410-50542i3UZFE..UZS207201302

17410BGASKET, EXHAUST PIPE

main90917-06059i3UZFE..UZS207200903

main90917-06078×2i1URFSE..URS206200903

main90917-06089i3UZFE..UZS207200903

17430PIPE ASSY, EXHAUST, TAIL

main17430-38610i1URFSE..URS206200903

main17430-50330i3UZFE..UZS207200903

17451GASKET, EXHAUST PIPE

main17451-31011i1URFSE,3UZFE..URS206,UZS207200903-201102

main17451-31012i1URFSE,3UZFE..URS206,UZS207201103

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22030×4i1URFSE,3UZFE..URS206,UZS207200903

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040×2i1URFSE,3UZFE..URS206,UZS207200903

17581ADAMPER, EXHAUST PIPE

main17581-46140i1URFSE,3UZFE..URS206,UZS207200903

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510558

main90105-10558

9017906007

main90179-06007

9017910037

main90179-10037

9046112447

main90461-12447

9050135028

main90501-35028

9090105026

main90901-05026

91511B0616

main91511-B0616

9155380830

main91553-80830

17 parts on this diagram · 2 diagrams in section
