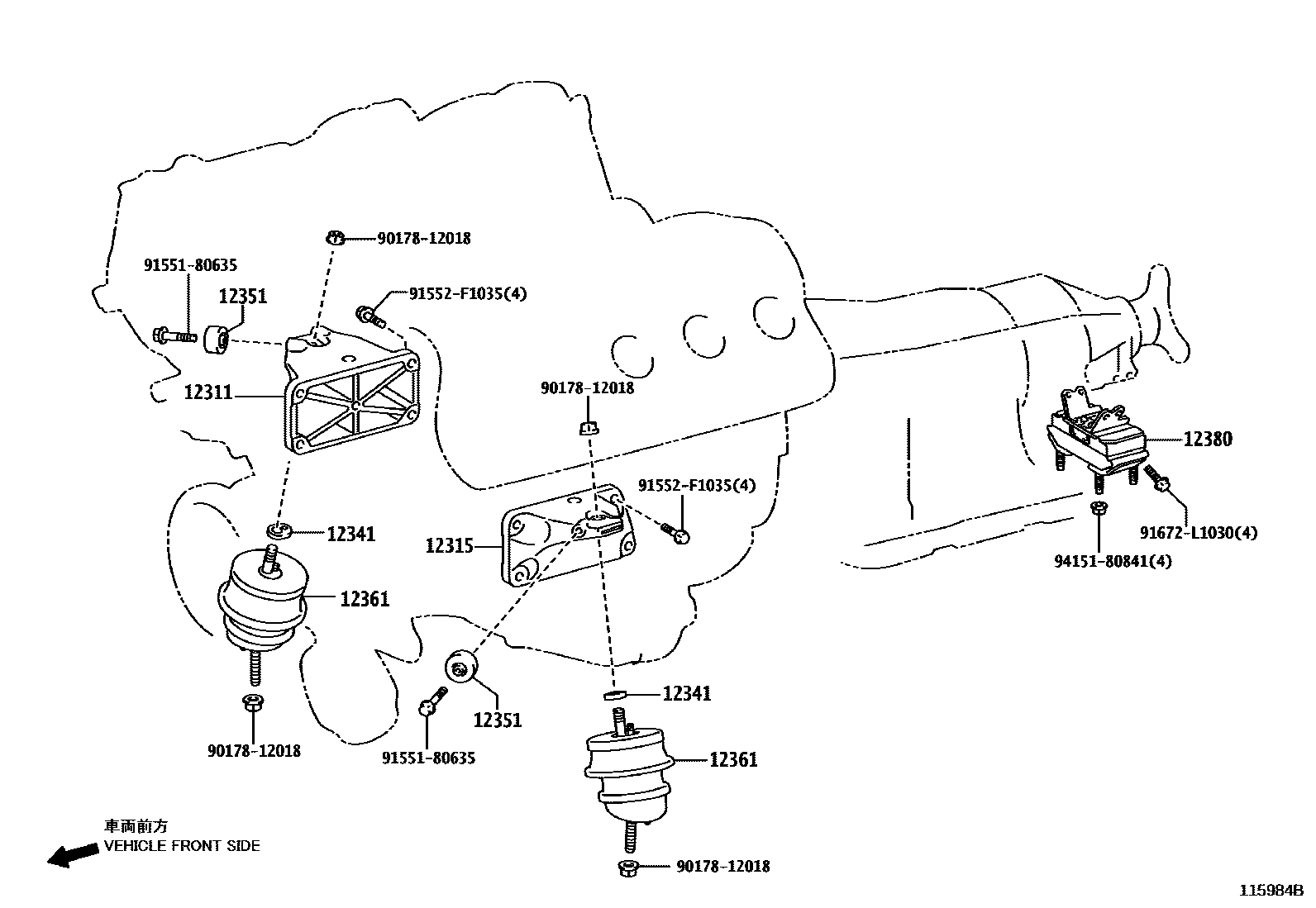

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-38090i1URFSE..URS206200903

main12311-50160i3UZFE..UZS207200903

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-38070i1URFSE..URS206200903

main12315-50120i3UZFE..UZS207200903

12341SPACER, ENGINE MOUNTING

main12319-38010×2i1URFSE..URS206200903

12351DAMPER, ENGINE MOUNTING

main12351-38020×2i1URFSE..URS206200903

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-38240×2i1URFSE..URS206200903

main12361-50230×2i3UZFE..UZS207200903-200905

main12361-50231×2i3UZFE..UZS207200906

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-38020i1URFSE..URS206200903

9017812018

main90178-12018

9155180635

main91551-80635

91552F1035

main91552-F1035

91672L1030

main91672-L1030

9415180841

main94151-80841

11 parts on this diagram · 2 diagrams in section
