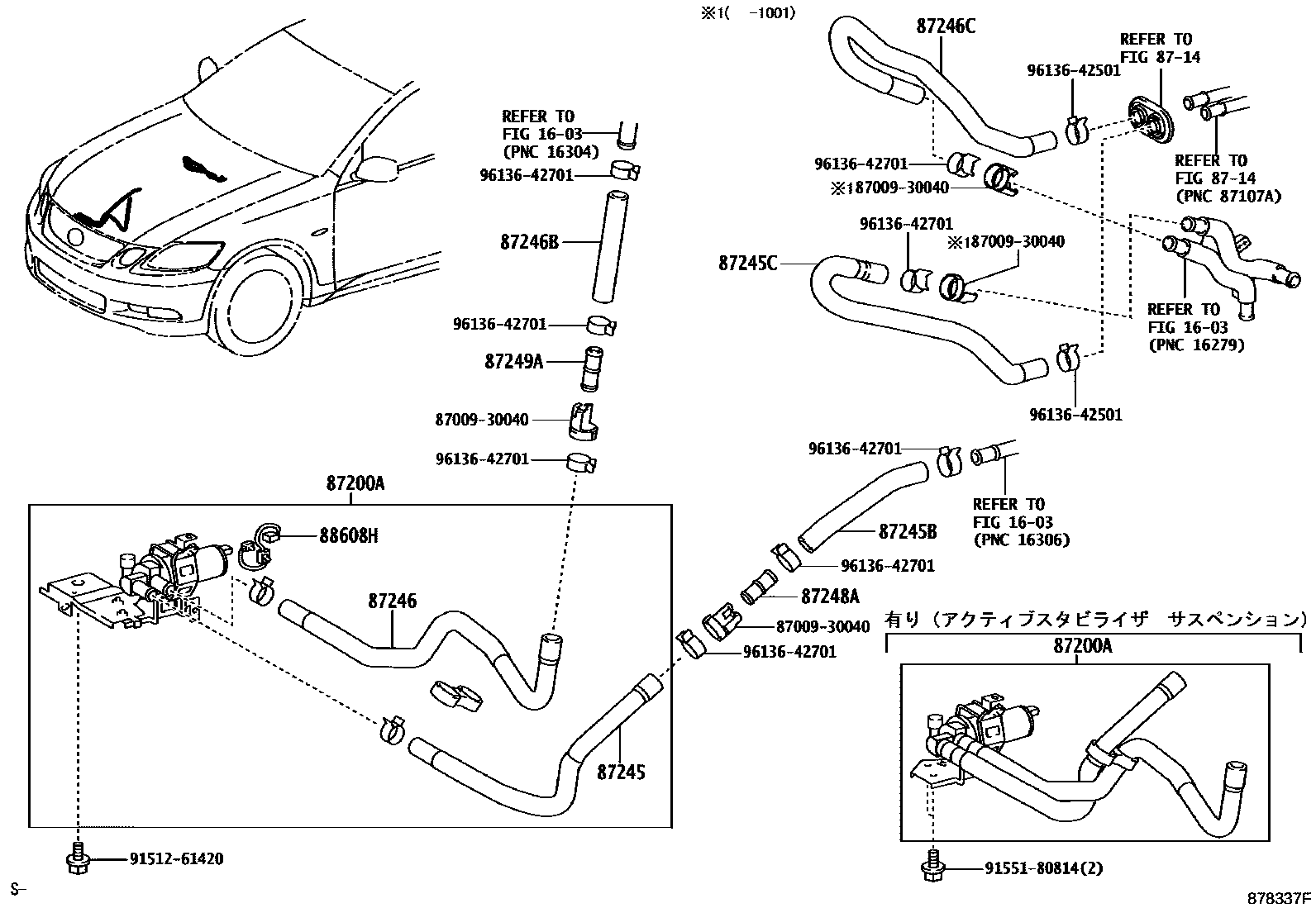

HEATING & AIR CONDITIONING - WATER PIPING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87200APUMP ASSY, WATER(FOR HEATER)

main87200-30240supersedes 87200-30230iGWS191200709

87245HOSE, HEATER WATER, INLET

main87245-30B60iGWS191200602-200709

87245BHOSE, HEATER WATER, INLET B

main87245-30B80iGWS191200709

87245CHOSE, HEATER WATER ,INLET C

main87245-30A70supersedes 87245-53180iGWS191200602-200709

main87245-53180iGWS191200709

87246HOSE, HEATER WATER, OUTLET

main87245-30B70iGWS191200709

87246BHOSE, HEATER WATER, OUTLET B

main87245-30B90iGWS191200602-200709

87246CHOSE, HEATER WATER, OUTLET C

main87245-30A41iGWS191200602-200709

87248APIPE, HEATER WATER INLET, A

main87248-30450iGWS191200602-200709

87249APIPE, HEATER WATER OUTLET, A

main87248-30450iGWS191200602-200709

88608HHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2

main88608-3A210iGWS191200602-200709

8700930040HOSE SET, WATER, NO.1

main87009-30040

9151261420

main91512-61420

9155180814

main91551-80814

9613642501

main96136-42501

9613642701

main96136-42701

17 parts on this diagram · 1 diagram in section
