8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

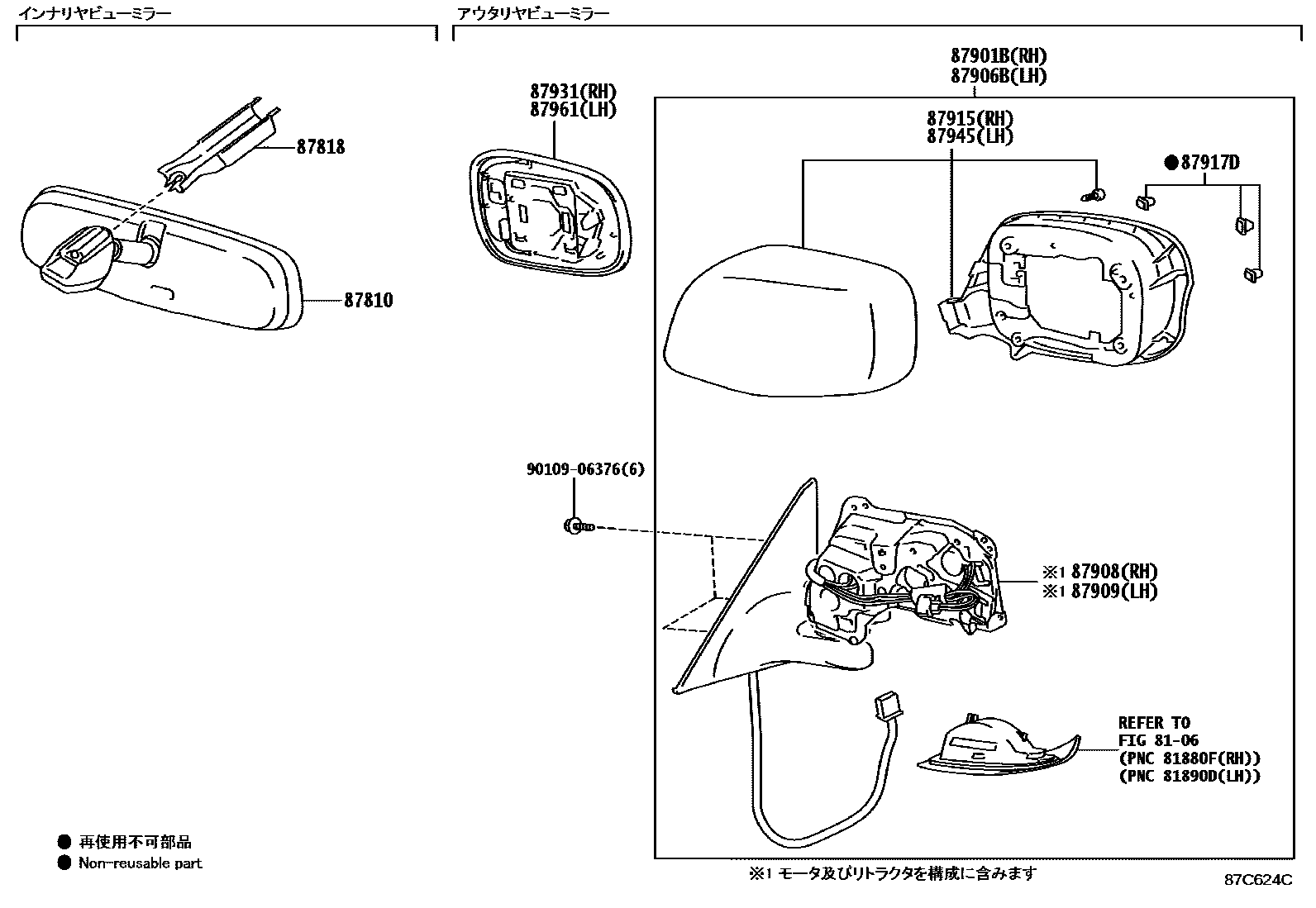

87810MIRROR ASSY, INNER REAR VIEW

main87810-30330i200602-200611

main87810-30331i200612-200709

main87810-30332i200909-201112

87818COVER, INNER RR VIEW MIRROR

main87818-30020i200709

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-30200-A0i200709-200909

WHITE PEARL CS.,077

main87901-30200-B0i200709-200909

PREMIUM SILVER,1F2

main87901-30200-B1i200709-200909

DK.GRAY MC.,1G0

main87901-30200-B2i200709-200909

FROSTY PEARL MC.,1G5

main87901-30200-C0i200709-200909

BLACK,212

main87901-30200-C1i200709-200909

BLACK OPAL MC.,214

main87901-30200-D0i200709-200909

RED MC.CS.,3R1

main87901-30200-E0i200709-200909

BEIGE ME.,4T1

main87901-30200-G0i200709-200909

JADE GREEN ME.,6V0

main87901-30200-J0i200709-200909

PREMIUM LT.BLUE.,8T9

main87901-30200-J1i200709-200909

DK.BLUE MC. CC.,8U0

main87901-30230-A0i200602-200607

WHITE PEARL CS.,062

main87901-30230-A1i200602-200709

BLUISH PEARL CS.,074

main87901-30230-A2i200607-200709

WHITE PEARL CS.,077

main87901-30230-B0i200602-200607

DK.GRAY MC.,1E0

main87901-30230-B1i200602-200709

PREMIUM SILVER,1F2

main87901-30230-B2i200607-200709

DK.GRAY MC.,1G0

main87901-30230-C0i200602-200607

BLACK,202

main87901-30230-C1i200607-200709

BLACK,212

main87901-30230-D0i200602-200709

RED MC.CS.,3R1

main87901-30230-E0i200602-200709

PREMIUM BEIGE,4S7

main87901-30230-G0i200602-200607

OLIVE M.M.,6T7

main87901-30230-G1i200607-200709

JADE GREEN ME.,6V0

main87901-30230-J0i200602-200607

DARK BLUE MC.,8P8

main87901-30230-J1i200602-200709

PREMIUM LT.BLUE.,8T9

main87901-30230-J2i200607-200709

DK.BLUE MC. CC.,8U0

main87901-30230-K0i200602-200709

DK.PURPLE M.M.,9AB

main87901-30270-A0i200909-201112

WHITE PEARL CS.,077

main87901-30270-B0i200909-201112

PREMIUM SILVER,1F2

main87901-30270-B1i200909-201112

DK.GRAY MC.,1G0

main87901-30270-B2i200909-201112

FROSTY PEARL MC.,1G5

main87901-30270-C0i200909-201112

BLACK,212

main87901-30270-C1i200909-201112

BLACK OPAL MC.,214

main87901-30270-C2i201007-201112

STARLIGHT BLACK GF.,217

main87901-30270-D0i200909-201112

RED MC.CS.,3R1

main87901-30270-E0i200909-201112

SLEEK ECRU ME.,4U7

main87901-30270-G0i200909-201112

DEEP PERIDOT MC.,6V6

main87901-30270-J0i200909-201007

PREMIUM LT.BLUE.,8T9

main87901-30270-J1i200909-201112

LAPIS LAZULI MC.,8V3

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87906-30260-A0i200709-200909

WHITE PEARL CS.,077

main87906-30260-B0i200709-200909

PREMIUM SILVER,1F2

main87906-30260-B1i200709-200909

DK.GRAY MC.,1G0

main87906-30260-B2i200709-200909

FROSTY PEARL MC.,1G5

main87906-30260-C0i200709-200909

BLACK,212

main87906-30260-C1i200709-200909

BLACK OPAL MC.,214

main87906-30260-D0i200709-200909

RED MC.CS.,3R1

main87906-30260-E0i200709-200909

BEIGE ME.,4T1

main87906-30260-G0i200709-200909

JADE GREEN ME.,6V0

main87906-30260-J0i200709-200909

PREMIUM LT.BLUE.,8T9

main87906-30260-J1i200709-200909

DK.BLUE MC. CC.,8U0

main87906-30290-A0i200602-200607

WHITE PEARL CS.,062

main87906-30290-A1i200602-200709

BLUISH PEARL CS.,074

main87906-30290-A2i200607-200709

WHITE PEARL CS.,077

main87906-30290-B0i200602-200607

DK.GRAY MC.,1E0

main87906-30290-B1i200602-200709

PREMIUM SILVER,1F2

main87906-30290-B2i200607-200709

DK.GRAY MC.,1G0

main87906-30290-C0i200602-200607

BLACK,202

main87906-30290-C1i200607-200709

BLACK,212

main87906-30290-D0i200602-200709

RED MC.CS.,3R1

main87906-30290-E0i200602-200709

PREMIUM BEIGE,4S7

main87906-30290-G0i200602-200607

OLIVE M.M.,6T7

main87906-30290-G1i200607-200709

JADE GREEN ME.,6V0

main87906-30290-J0i200602-200607

DARK BLUE MC.,8P8

main87906-30290-J1i200602-200709

PREMIUM LT.BLUE.,8T9

main87906-30290-J2i200607-200709

DK.BLUE MC. CC.,8U0

main87906-30290-K0i200602-200709

DK.PURPLE M.M.,9AB

main87906-30330-A0i200909-201112

WHITE PEARL CS.,077

main87906-30330-B0i200909-201112

PREMIUM SILVER,1F2

main87906-30330-B1i200909-201112

DK.GRAY MC.,1G0

main87906-30330-B2i200909-201112

FROSTY PEARL MC.,1G5

main87906-30330-C0i200909-201112

BLACK,212

main87906-30330-C1i200909-201112

BLACK OPAL MC.,214

main87906-30330-C2i201007-201112

STARLIGHT BLACK GF.,217

main87906-30330-D0i200909-201112

RED MC.CS.,3R1

main87906-30330-E0i200909-201112

SLEEK ECRU ME.,4U7

main87906-30330-G0i200909-201112

DEEP PERIDOT MC.,6V6

main87906-30330-J0i200909-201007

PREMIUM LT.BLUE.,8T9

main87906-30330-J1i200909-201112

LAPIS LAZULI MC.,8V3

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-30A60-A0i200709-200909

WHITE PEARL CS.,077

main87908-30A60-B0i200709-200909

PREMIUM SILVER,1F2

main87908-30A60-B1i200709-200909

DK.GRAY MC.,1G0

main87908-30A60-B2i200709-200909

FROSTY PEARL MC.,1G5

main87908-30A60-C0i200709-200909

BLACK,212

main87908-30A60-C1i200709-200909

BLACK OPAL MC.,214

main87908-30A60-D0i200709-200909

RED MC.CS.,3R1

main87908-30A60-E0i200709-200909

BEIGE ME.,4T1

main87908-30A60-G0i200709-200909

JADE GREEN ME.,6V0

main87908-30A60-J0i200709-200909

PREMIUM LT.BLUE.,8T9

main87908-30A60-J1i200709-200909

DK.BLUE MC. CC.,8U0

main87908-30B70-A0i200909-201112

WHITE PEARL CS.,077

main87908-30B70-B0i200909-201112

PREMIUM SILVER,1F2

main87908-30B70-B1i200909-201112

DK.GRAY MC.,1G0

main87908-30B70-B2i200909-201112

FROSTY PEARL MC.,1G5

main87908-30B70-C0i200909-201112

BLACK,212

main87908-30B70-C1i200909-201112

BLACK OPAL MC.,214

main87908-30B70-C2i201007-201112

STARLIGHT BLACK GF.,217

main87908-30B70-D0i200909-201112

RED MC.CS.,3R1

main87908-30B70-E0i200909-201112

SLEEK ECRU ME.,4U7

main87908-30B70-G0i200909-201112

DEEP PERIDOT MC.,6V6

main87908-30B70-J0i200909-201007

PREMIUM LT.BLUE.,8T9

main87908-30B70-J1i200909-201112

LAPIS LAZULI MC.,8V3

main87908-3A380-A0i200602-200607

WHITE PEARL CS.,062

main87908-3A380-A1i200602-200709

BLUISH PEARL CS.,074

main87908-3A380-A2i200607-200709

WHITE PEARL CS.,077

main87908-3A380-B0i200602-200607

DK.GRAY MC.,1E0

main87908-3A380-B1i200602-200709

PREMIUM SILVER,1F2

main87908-3A380-B2i200607-200709

DK.GRAY MC.,1G0

main87908-3A380-C0i200602-200607

BLACK,202

main87908-3A380-C1i200607-200709

BLACK,212

main87908-3A380-D0i200602-200709

RED MC.CS.,3R1

main87908-3A380-E0i200602-200709

PREMIUM BEIGE,4S7

main87908-3A380-G0i200602-200607

OLIVE M.M.,6T7

main87908-3A380-G1i200607-200709

JADE GREEN ME.,6V0

main87908-3A380-J0i200602-200607

DARK BLUE MC.,8P8

main87908-3A380-J1i200602-200709

PREMIUM LT.BLUE.,8T9

main87908-3A380-J2i200607-200709

DK.BLUE MC. CC.,8U0

main87908-3A380-K0i200602-200709

DK.PURPLE M.M.,9AB

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-30A20-A0i200602-200607

WHITE PEARL CS.,062

main87909-30A20-A1i200602-200709

BLUISH PEARL CS.,074

main87909-30A20-A2i200607-200709

WHITE PEARL CS.,077

main87909-30A20-B0i200602-200607

DK.GRAY MC.,1E0

main87909-30A20-B1i200602-200709

PREMIUM SILVER,1F2

main87909-30A20-B2i200607-200709

DK.GRAY MC.,1G0

main87909-30A20-C0i200602-200607

BLACK,202

main87909-30A20-C1i200607-200709

BLACK,212

main87909-30A20-D0i200602-200709

RED MC.CS.,3R1

main87909-30A20-E0i200602-200709

PREMIUM BEIGE,4S7

main87909-30A20-G0i200602-200607

OLIVE M.M.,6T7

main87909-30A20-G1i200607-200709

JADE GREEN ME.,6V0

main87909-30A20-J0i200602-200607

DARK BLUE MC.,8P8

main87909-30A20-J1i200602-200709

PREMIUM LT.BLUE.,8T9

main87909-30A20-J2i200607-200709

DK.BLUE MC. CC.,8U0

main87909-30A20-K0i200602-200709

DK.PURPLE M.M.,9AB

main87909-30B10-A0i200709-200909

WHITE PEARL CS.,077

main87909-30B10-B0i200709-200909

PREMIUM SILVER,1F2

main87909-30B10-B1i200709-200909

DK.GRAY MC.,1G0

main87909-30B10-B2i200709-200909

FROSTY PEARL MC.,1G5

main87909-30B10-C0i200709-200909

BLACK,212

main87909-30B10-C1i200709-200909

BLACK OPAL MC.,214

main87909-30B10-D0i200709-200909

RED MC.CS.,3R1

main87909-30B10-E0i200709-200909

BEIGE ME.,4T1

main87909-30B10-G0i200709-200909

JADE GREEN ME.,6V0

main87909-30B10-J0i200709-200909

PREMIUM LT.BLUE.,8T9

main87909-30B10-J1i200709-200909

DK.BLUE MC. CC.,8U0

main87909-30C40-A0i200909-201112

WHITE PEARL CS.,077

main87909-30C40-B0i200909-201112

PREMIUM SILVER,1F2

main87909-30C40-B1i200909-201112

DK.GRAY MC.,1G0

main87909-30C40-B2i200909-201112

FROSTY PEARL MC.,1G5

main87909-30C40-C0i200909-201112

BLACK,212

main87909-30C40-C1i200909-201112

BLACK OPAL MC.,214

main87909-30C40-C2i201007-201112

STARLIGHT BLACK GF.,217

main87909-30C40-D0i200909-201112

RED MC.CS.,3R1

main87909-30C40-E0i200909-201112

SLEEK ECRU ME.,4U7

main87909-30C40-G0i200909-201112

DEEP PERIDOT MC.,6V6

main87909-30C40-J0i200909-201007

PREMIUM LT.BLUE.,8T9

main87909-30C40-J1i200909-201112

LAPIS LAZULI MC.,8V3

87915COVER, OUTER MIRROR, RH

main87915-50020-A0i200602-200607

WHITE PEARL CS.,062

main87915-50020-A3i200602-200709

BLUISH PEARL CS.,074

main87915-50020-A4i200607-200709

WHITE PEARL CS.,077

main87915-50020-B1i200602-200607

DK.GRAY MC.,1E0

main87915-50020-B2i200602-200709

PREMIUM SILVER,1F2

main87915-50020-B3i200607-200709

DK.GRAY MC.,1G0

main87915-50020-C0i200602-200607

BLACK,202

main87915-50020-C1i200607-200709

BLACK,212

main87915-50020-D2i200602-200709

RED MC.CS.,3R1

main87915-50020-E2i200602-200709

PREMIUM BEIGE,4S7

main87915-50020-G2i200602-200607

OLIVE M.M.,6T7

main87915-50020-G3i200607-200709

JADE GREEN ME.,6V0

main87915-50020-J0i200602-200607

DARK BLUE MC.,8P8

main87915-50020-J2i200602-200709

PREMIUM LT.BLUE.,8T9

main87915-50020-J3i200607-200709

DK.BLUE MC. CC.,8U0

main87915-50020-K0i200602-200709

DK.PURPLE M.M.,9AB

87917DCLIP, OUTER MIRROR

main87917-3A060×2i200709-201112

87931OUTER MIRROR, RH

main87931-30710i200602-200709

main87931-30A60i200709-201112

87945COVER, OUTER MIRROR, LH

main87945-50020-A0i200602-200607

WHITE PEARL CS.,062

main87945-50020-A3i200602-200709

BLUISH PEARL CS.,074

main87945-50020-A4i200607-200709

WHITE PEARL CS.,077

main87945-50020-B1i200602-200607

DK.GRAY MC.,1E0

main87945-50020-B2i200602-200709

PREMIUM SILVER,1F2

main87945-50020-B3i200607-200709

DK.GRAY MC.,1G0

main87945-50020-C0i200602-200607

BLACK,202

main87945-50020-C1i200607-200709

BLACK,212

main87945-50020-D2i200602-200709

RED MC.CS.,3R1

main87945-50020-E2i200602-200709

PREMIUM BEIGE,4S7

main87945-50020-G2i200602-200607

OLIVE M.M.,6T7

main87945-50020-G3i200607-200709

JADE GREEN ME.,6V0

main87945-50020-J0i200602-200607

DARK BLUE MC.,8P8

main87945-50020-J2i200602-200709

PREMIUM LT.BLUE.,8T9

main87945-50020-J3i200607-200709

DK.BLUE MC. CC.,8U0

main87945-50020-K0i200602-200709

DK.PURPLE M.M.,9AB

87961MIRROR OUTER, LH

main87961-30A20i200602-200709

main87961-30B10i200709-201112

9010906376

main90109-06376
