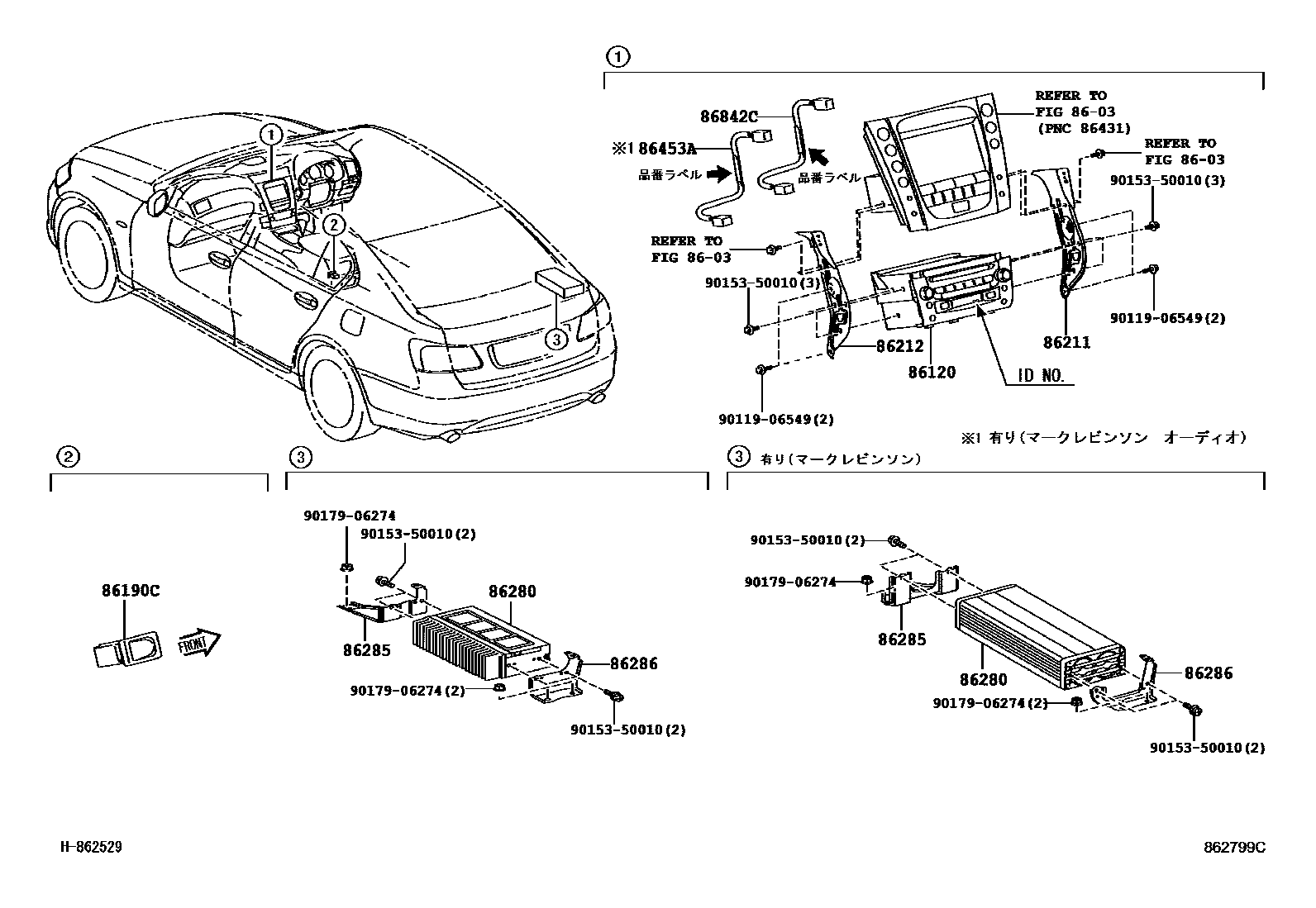

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1������ & ��������

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86120-30C60-C0supersedes 86120-30C70-C0iGWS191200602-200709

main86120-30C60-E0supersedes 86120-30C70-E0iGWS191200602-200709

main86120-30F60-C0supersedes 86120-30F70-C0iGWS191200709-200909

main86120-30F60-E0supersedes 86120-30F70-E0iGWS191200709-200909

main86120-30M10-C0supersedes 86120-30M00-C0iGWS191200909-201112

main86120-30M10-E0supersedes 86120-30M00-E0iGWS191200909-201112

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-30010iGWS191200909-201112

main86190-48010iGWS191200709-200909

86211BRACKET, RADIO, NO.1

main86211-30300iGWS191200602-200709

main86211-30360iGWS191200909-201112

86212BRACKET, RADIO, NO.2

main86212-30280iGWS191200602-200709

main86212-30330iGWS191200909-201112

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W350supersedes 86280-30520iGWS191200602-200709

main86280-0W720supersedes 86280-30620iGWS191200909

86285BRACKET, AMPLIFIER, NO.1

main86285-30360supersedes 86285-30350iGWS191200909

main86286-30080supersedes 86285-30290iGWS191200602-200709

86286BRACKET, AMPLIFIER, NO.2

main86286-30070supersedes 86286-30060iGWS191200602-200709

main86286-30130supersedes 86286-30120iGWS191200909

86453AWIRE, MULTI-MEDIA MODULE

main86453-30040iGWS191200602-200709

86842CWIRE, NAVIGATION

main86842-30170iGWS191200602-200709

9011906549

main90119-06549

9015350010

main90153-50010

9017906274

main90179-06274

13 parts on this diagram · 3 diagrams in section
