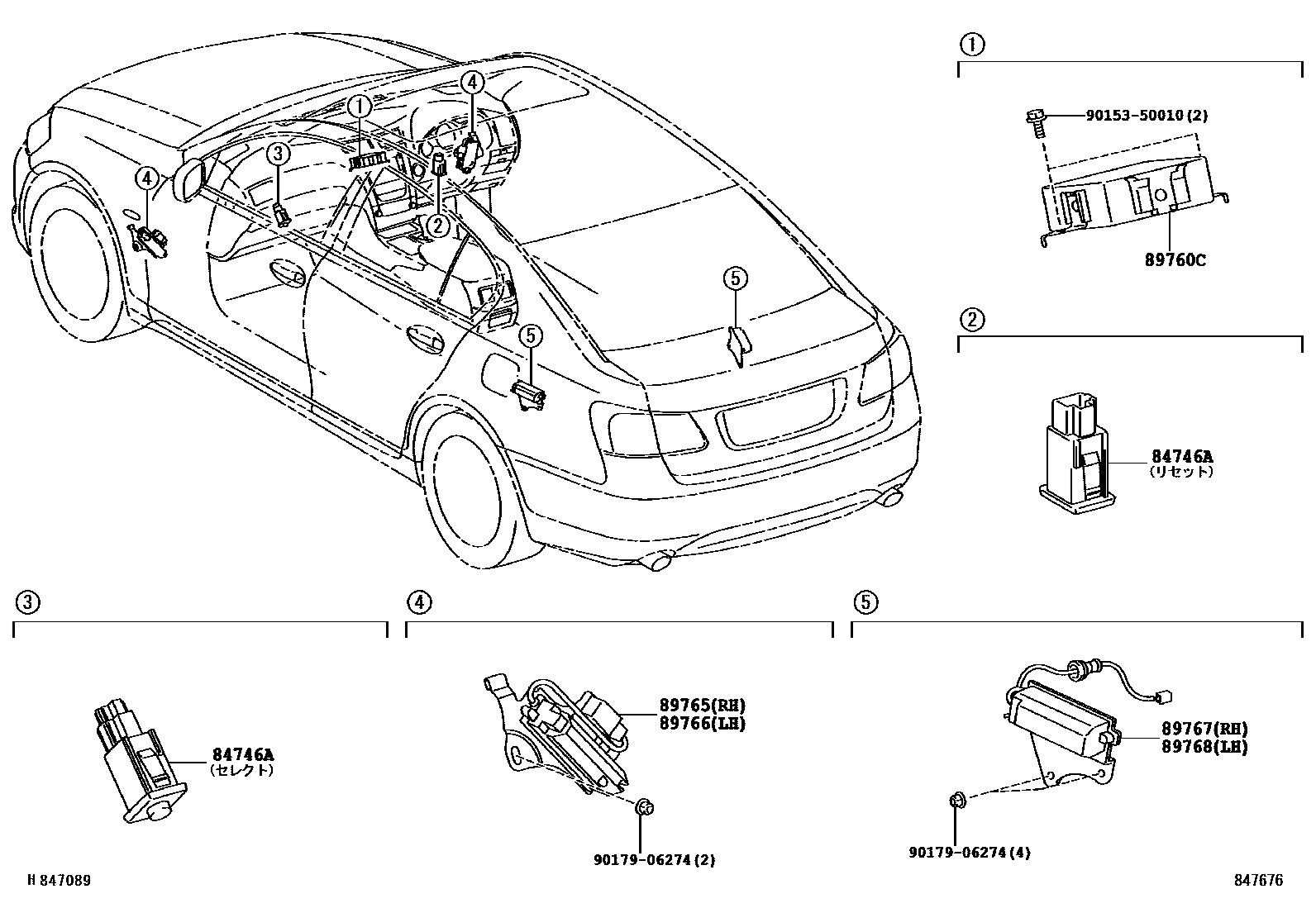

TIRE PRESSURE WARNING SYSTEM

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-24010supersedes 84746-50010iGWS191200709-201112

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-30030iGWS191200602-200611

main89760-30031iGWS191200612-200709

main89760-30032iGWS191200709

89765ANTENNA, TIRE PRESSURE, FRONT RH

main89765-30010iGWS191200602-200709

89766ANTENNA, TIRE PRESSURE, FRONT LH

main89766-30010iGWS191200602-200709

89767ANTENNA, TIRE PRESSURE, REAR RH

main89767-30010iGWS191200602-200709

89768ANTENNA, TIRE PRESSURE, REAR LH

main89768-30010iGWS191200602-200709

9015350010

main90153-50010

9017906274

main90179-06274

8 parts on this diagram · 1 diagram in section
