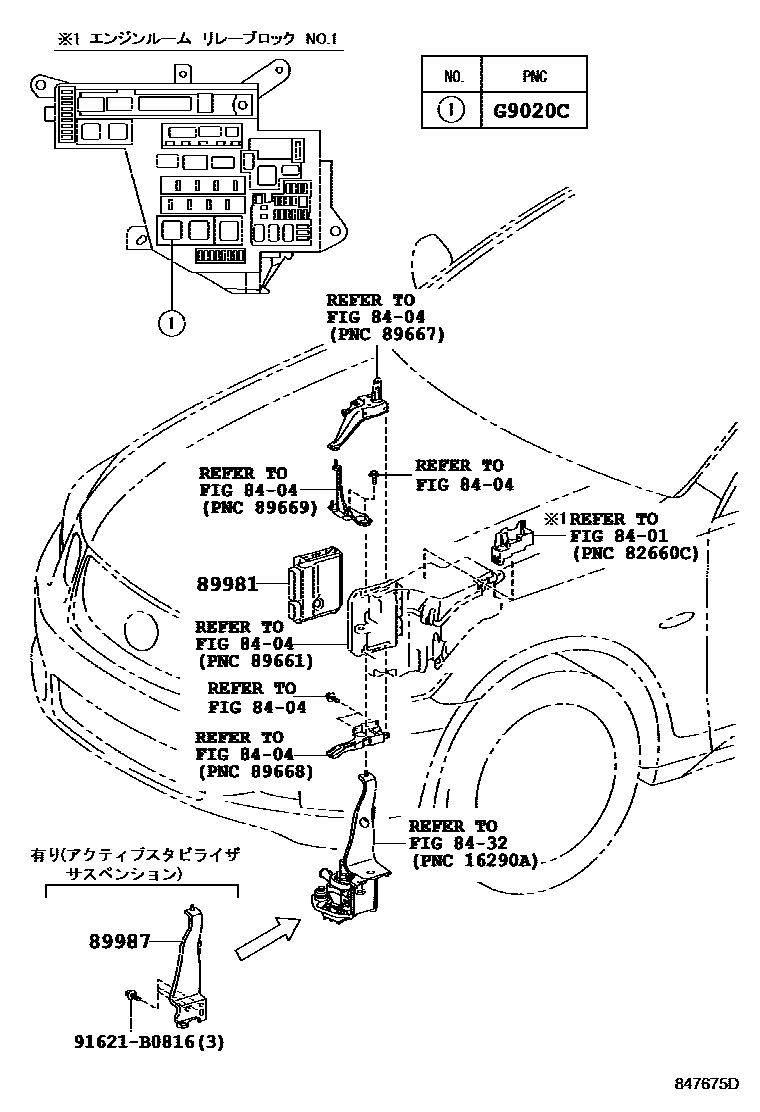

HEV CONTROL COMPUTER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

8432INVERTER COOLING

→ Go to FIG 84-32

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-30010iGWS191200602-200709

main89981-30060iGWS191200709-200809

main89981-30120iGWS191200809-200909

main89981-30190iGWS191200909-201112

89987BRACKET, COMPUTER, NO.1

main89987-30020iGWS191200602-200709

G9020CRELAY, OIL PUMP

main90987-02025iGWS191200602-200709

91621B0816

main91621-B0816

7 parts on this diagram · 1 diagram in section
