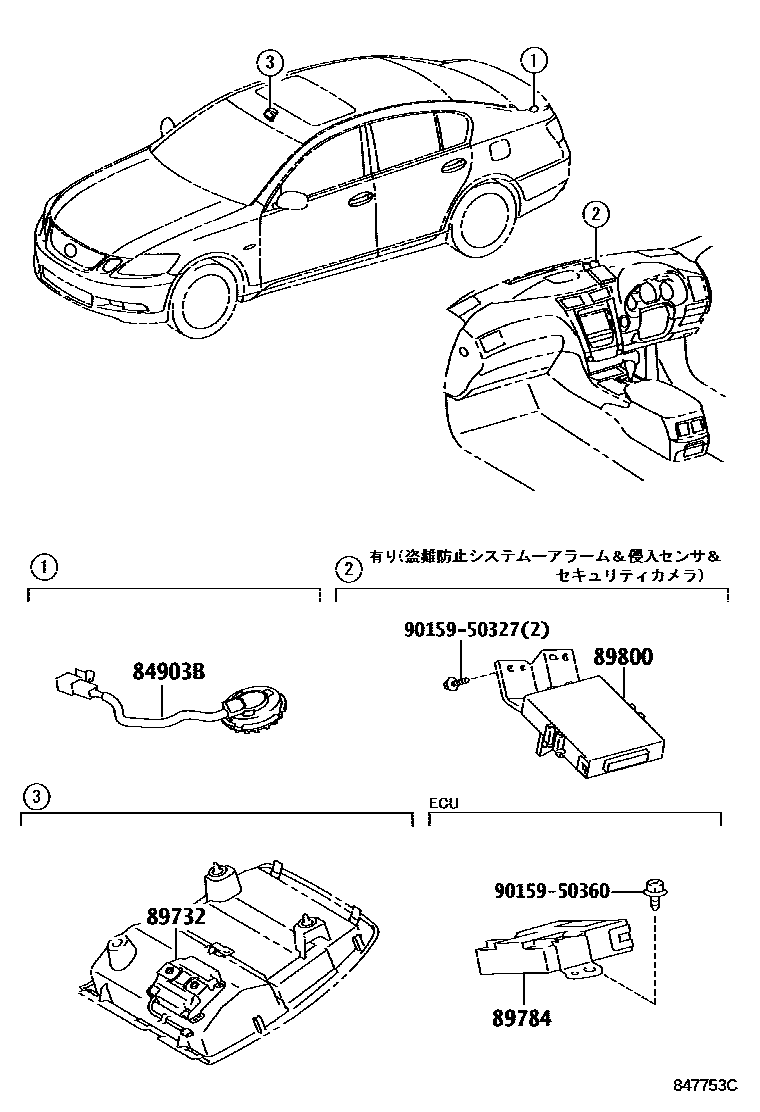

ANTI-THEFT DEVICE

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-50210iGWS191200602-200709

89732SENSOR, THEFT WARNING RADAR

main89732-30040supersedes 89732-30033iGWS191200602-200604

main89732-30041supersedes 89732-30033iGWS191200605-200609

main89732-30042supersedes 89732-30033iGWS191200610-200709

main89732-30043supersedes 89732-30033iGWS191200809-200904

main89732-30044supersedes 89732-30033iGWS191200904-201112

main89732-30050supersedes 89732-30033iGWS191200602-200604

main89732-30051supersedes 89732-30033iGWS191200605-200709

main89732-30052supersedes 89732-30033iGWS191200809-200904

main89732-30053supersedes 89732-30033iGWS191200904-201112

main89732-30060supersedes 89732-30033iGWS191200602-200604

main89732-30061supersedes 89732-30033iGWS191200605-200609

main89732-30062supersedes 89732-30033iGWS191200709-200808

main89732-30063supersedes 89732-30033iGWS191200809-200904

main89732-30064supersedes 89732-30033iGWS191200904-201112

89784COMPUTER, IMMOBILIZER CODE

main89784-30010iGWS191200602-200603

main89784-30011iGWS191200603-200709

main89784-30040iGWS191200909

89800COMPUTER ASSY, REMOTE SECURITY

main89800-30010iGWS191200602-200709

9015950327

main90159-50327

9015950360

main90159-50360

6 parts on this diagram · 1 diagram in section
