CLEARANCE & BACK SONAR

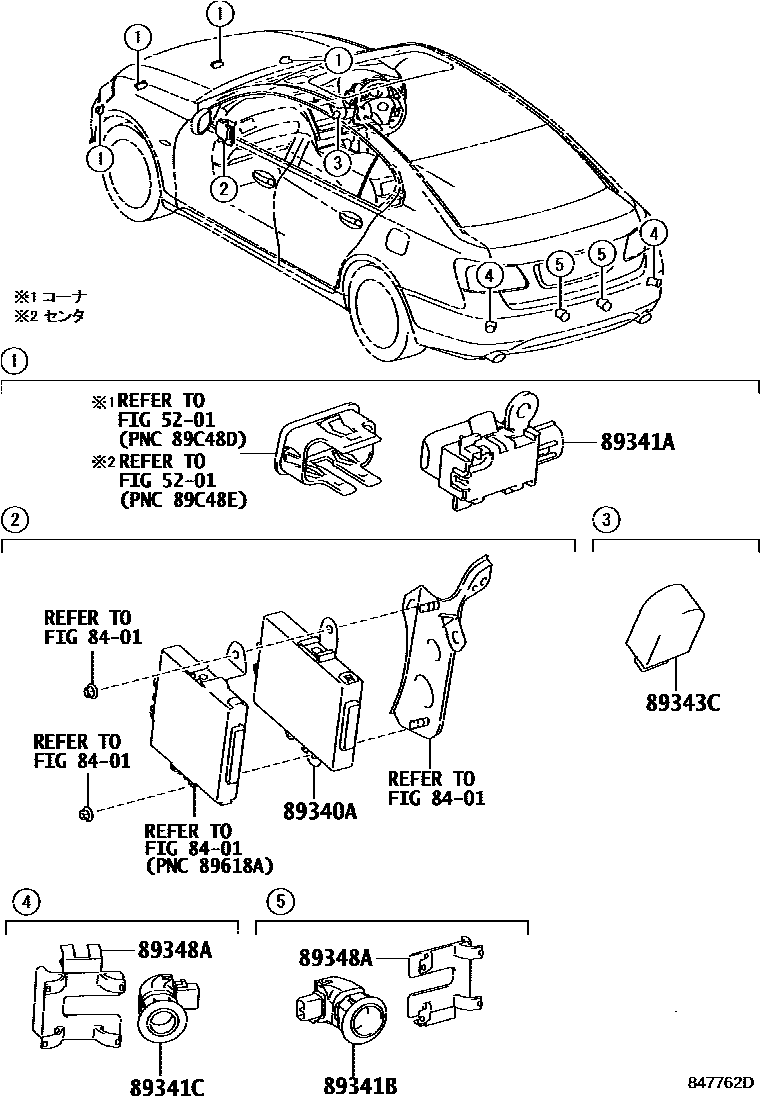

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-30021i200602-200709

89341ASENSOR, ULTRASONIC, NO.1

main89341-44150-A1×4i200602-200607

main89341-44150-A2×4i200602-200709

main89341-44150-A3×4i200607-200709

main89341-44150-B1×4i200602-200607

main89341-44150-B2×4i200602-200709

main89341-44150-B5×4i200607-200709

main89341-44150-B6×4i200709-201112

main89341-44150-C1×4i200602-200607

main89341-44150-C3×4i200607-200709

main89341-44150-C4×4i200709-201112

main89341-44150-C5×4i201007-201112

main89341-44150-D1×4i200602-200709

main89341-44150-E1×4i200602-200709

main89341-44150-E2×4i200709-200909

main89341-44150-E3×4i200909-201112

main89341-44150-G0×4i200602-200607

main89341-44150-G1×4i200607-200709

main89341-44150-G3×4i200909-201112

main89341-44150-J2×4i200602-200607

main89341-44150-J3×4i200602-200709

main89341-44150-J4×4i200607-200709

main89341-44150-J6×4i200909-201112

main89341-44150-K0×4i200602-200709

89341BSENSOR, ULTRASONIC, NO.2

main89341-30020-A1×2i200602-200607

main89341-30020-A2×2i200602-200709

main89341-30020-A4×2i200607-200709

main89341-30020-B2×2i200602-200607

main89341-30020-B3×2i200602-200709

main89341-30020-B4×2i200607-200709

main89341-30020-C0×2i200602-200607

main89341-30020-C1×2i200607-200709

main89341-30020-D1×2i200602-200709

main89341-30020-E0×2i200602-200709

main89341-30020-G0×2i200602-200607

main89341-30020-G3×2i200607-200709

main89341-30020-J0×2i200602-200607

main89341-30020-J5×2i200602-200709

main89341-30020-J6×2i200607-200709

main89341-30020-K0×2i200602-200709

main89341-30021-A4×2i200709-201112

main89341-30021-B3×2i200709-201112

main89341-30021-B4×2i200709-201112

main89341-30021-B8×2i200709-201112

main89341-30021-C1×2i200709-201112

main89341-30021-C2×2i200709-201112

main89341-30021-C3×2i201007-201112

main89341-30021-D1×2i200709-201112

main89341-30021-E2×2i200709-200909

main89341-30021-E5×2i200909-201112

main89341-30021-G3×2i200709-200909

main89341-30021-G4×2i200909-201112

main89341-30021-J5×2i200709-201007

main89341-30021-J6×2i200709-200909

main89341-30021-J9×2i200909-201112

89341CSENSOR, ULTRASONIC, NO.3

main89341-30010-A1×2i200602-200607

main89341-30010-A3×2i200602-200709

main89341-30010-A5×2i200607-200709

main89341-30010-B3×2i200602-200607

main89341-30010-B4×2i200602-200709

main89341-30010-B5×2i200607-200709

main89341-30010-B9×2i200709-201112

main89341-30010-C0×2i200602-200607

main89341-30010-C3×2i200607-200709

main89341-30010-C4×2i200709-201112

main89341-30010-C5×2i201007-201112

main89341-30010-D2×2i200602-200709

main89341-30010-E1×2i200602-200709

main89341-30010-E3×2i200709-200909

main89341-30010-E6×2i200909-201112

main89341-30010-G0×2i200602-200607

main89341-30010-G3×2i200607-200709

main89341-30010-G5×2i200909-201112

main89341-30010-J0×2i200602-200607

main89341-30010-J6×2i200602-200709

main89341-30010-J7×2i200607-200709

main89341-30010-K0×2i200602-200709

main89341-30010-R1×2i200909-201112

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-30010i200602-200709

89348ARETAINER, ULTRASONIC SENSOR, NO.2

main89348-44010×4i200602-200709

8 parts on this diagram · 1 diagram in section
