ABS & VSC
82663GCOVER, RELAY BLOCK, LOWER
8401SWITCH & RELAY & COMPUTER
86650KBUZZER ASSY, SKID CONTROL
88263MRELAY, ABS SOLENOID
88263NRELAY, ABS MOTOR
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89540COMPUTER ASSY, SKID CONTROL
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89549BRACKET, SKID CONTROL COMPUTER
89680SUPPLY ASSY, BRAKE CONTROL POWER
89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
89701ABLOCK SUB-ASSY, ABS RELAY
89771COVER, ABS RELAY BLOCK, UPPER
9011906779
main90119-06779
9011906915
main90119-06915
9017906264
main90179-06264
9017906274
main90179-06274
9155180610
main91551-80610
91551A0616
main91551-A0616
9155380812
main91553-80812
91554A0612
main91554-A0612
91631B0616
main91631-B0616
9167180610
main91671-80610

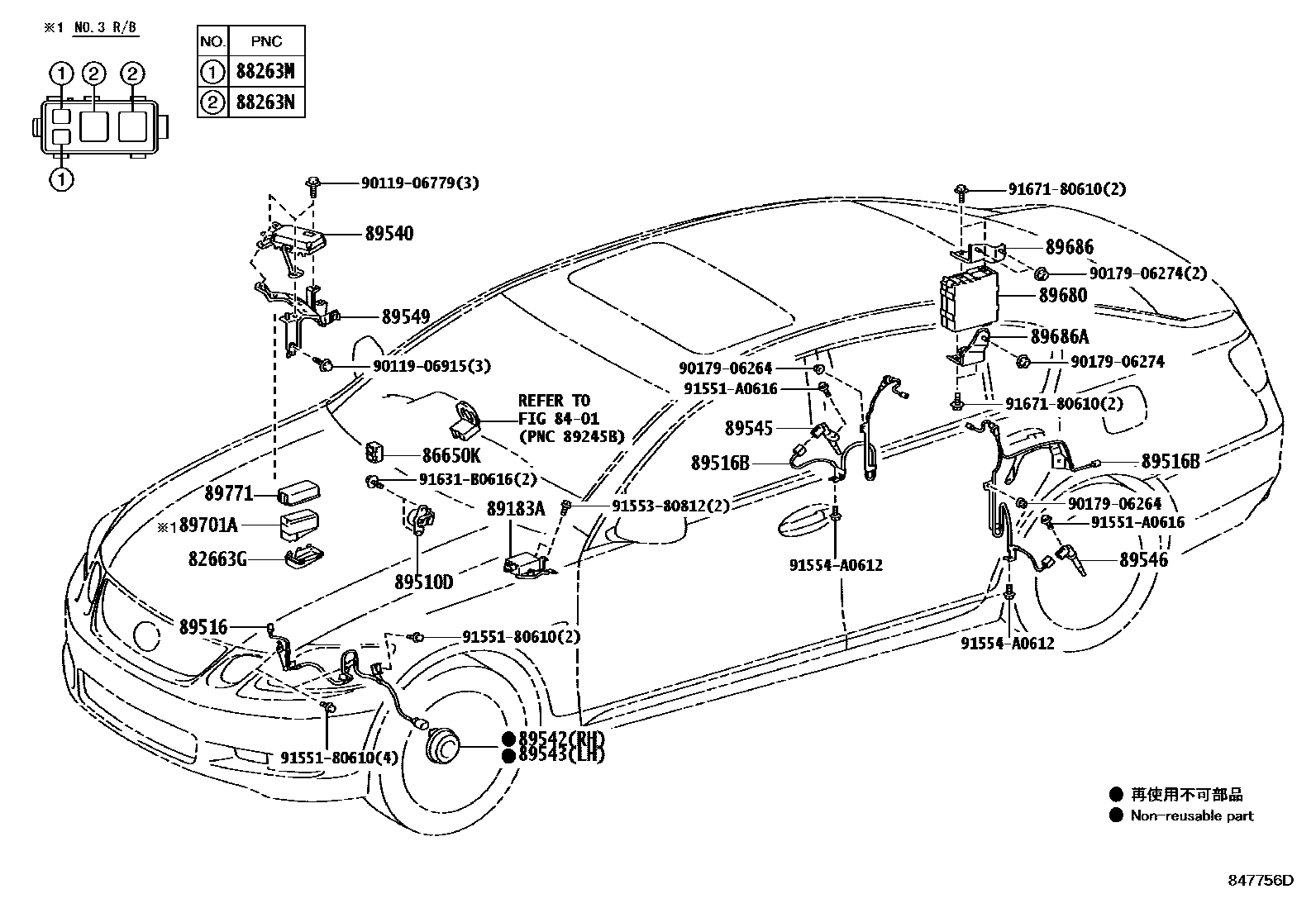

30 parts on this diagram · 1 diagram in section
