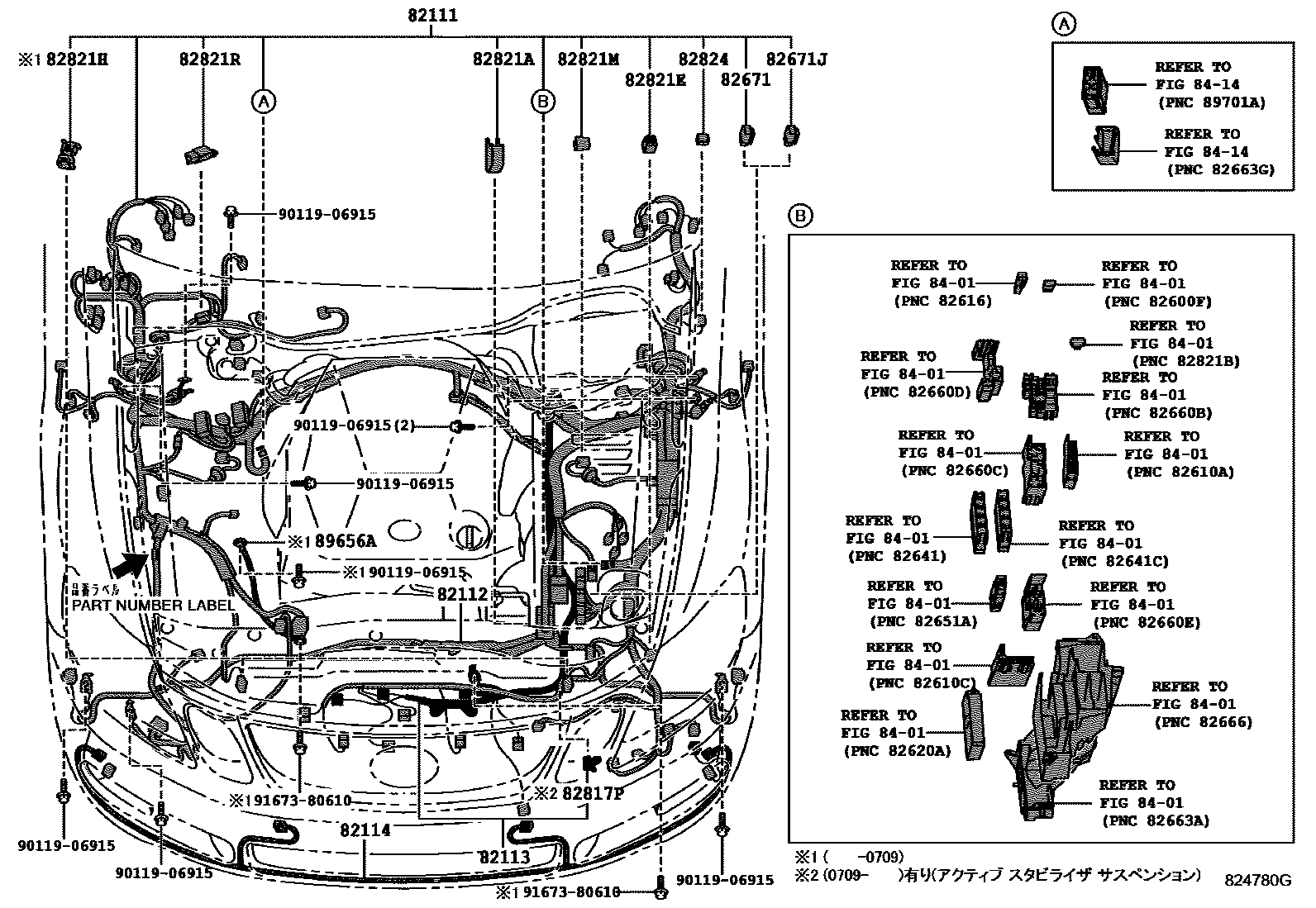

WIRING & CLAMP

82111WIRE, ENGINE ROOM MAIN

main82111-30L32i200809-201005

main82111-30L30supersedes 82111-30L94i200602-200709

main82111-30L80supersedes 82111-30L94i200602-200709

main82111-30L90supersedes 82111-30L94i200602-200709

main82111-30L91i200709-200809

main82111-30L92i200809-200909

main82111-30L93i200909-201005

main82111-30L94i201006

main82111-30W51i201007-201109

82112WIRE, ENGINE ROOM, NO.2

main82112-30A30supersedes 82112-30A20i200602-200709

main82112-30A31supersedes 82112-30A21i200709-200809

main82112-30A32supersedes 82112-30A22i200809

82113WIRE, ENGINE ROOM, NO.3

main82113-30510supersedes 82113-30620i200602-200709

main82113-30670supersedes 82113-30620i200709

82114WIRE, ENGINE ROOM, NO.4

main82114-30070i200602-200709

main82114-30071i200709-201112

82671BLOCK, JUNCTION

main82671-30340i200602-200709

82671JBLOCK, JUNCTION, NO.2

main82671-30350i200602-200709

82817PPROTECTOR, WIRING HARNESS, NO.14

main82817-30M50i200709

82821ACOVER, CONNECTOR

main82821-12560i200602-200709

82821ECOVER, CONNECTOR

main82821-35040i200602-200709

82821HCOVER, CONNECTOR

main82821-30650×2i200602-200709

82821MCOVER, CONNECTOR

main82821-30600×2i200602-200709

82821RCOVER, CONNECTOR

main82821-22120i200602-200709

82824CONNECTOR, WIRING HARNESS

main82824-22060i200602-200709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

89656AWIRE, POWER STEERING EARTH

main89656-30010i200602-200709

9011906915

main90119-06915

9167380610

main91673-80610

18 parts on this diagram · 12 diagrams in section
