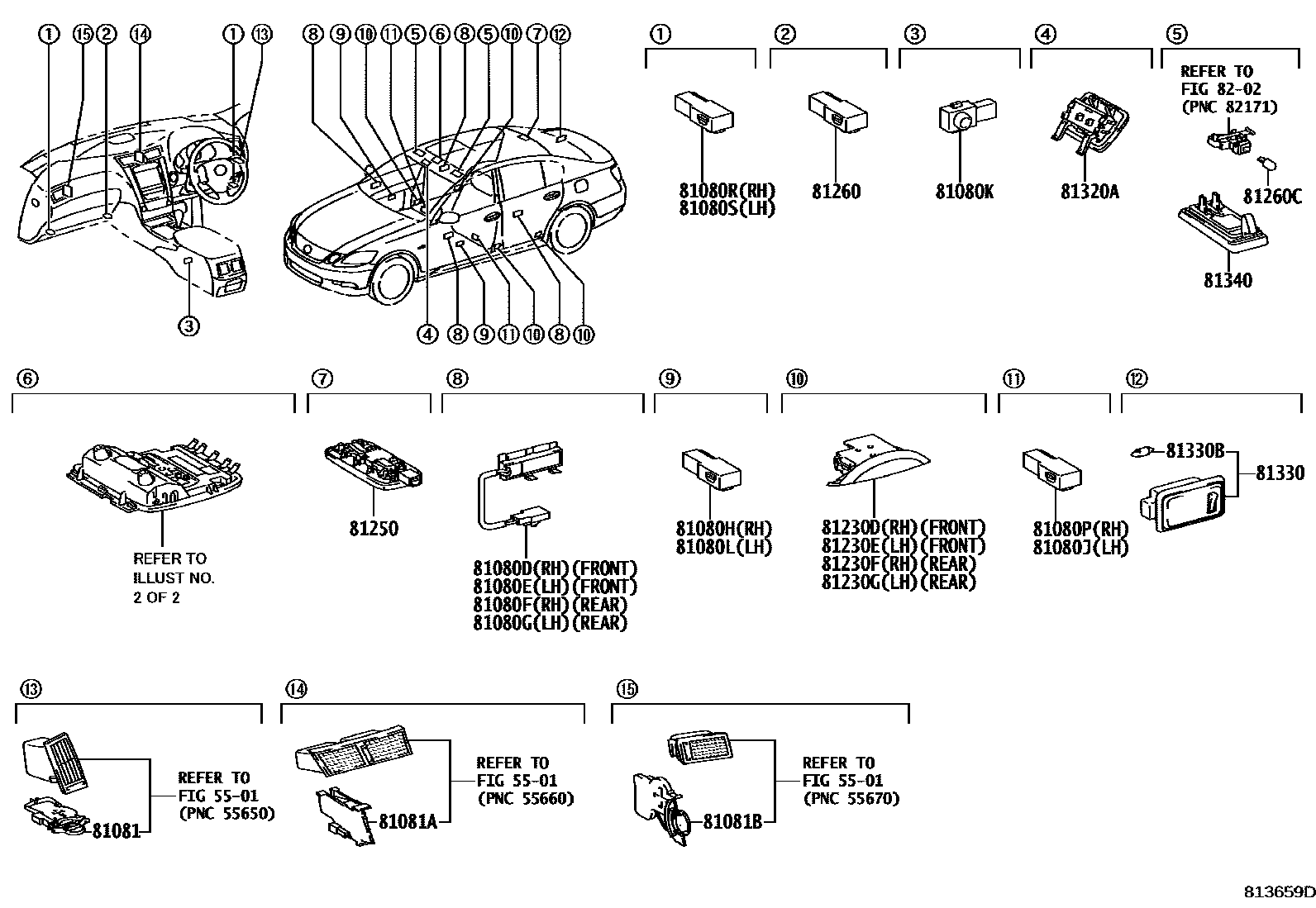

INTERIOR LAMP
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
81081ALAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2
81081BLAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.3
81230DLAMP ASSY, FRONT DOOR COURTESY, RH
81230ELAMP ASSY, FRONT DOOR COURTESY, LH
81230FLAMP ASSY, REAR DOOR COURTESY, RH
81230GLAMP ASSY, REAR DOOR COURTESY, LH
81250LAMP ASSY, ROOM, NO.2
IVORY,TRIM0#
GRAY,TRIM1#,28,29
LT.GRAY,TRIM1#,2#
IVORY,TRIM0#
IVORY,TRIM02,03
WATER WHITE,TRIM04
LT.GRAY,TRIM1#,2#
81260LAMP ASSY, GLOVE BOX
81260CBULB(FOR MAP LAMP)
81320ALAMP ASSY, STEERING SPOT
IVORY,TRIM0#
IVORY,TRIM02,03
WATER WHITE,TRIM04
GRAY,TRIM1#,28,29
LT.GRAY,TRIM1#,20,21,22,23,26
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
IVORY,TRIM0#
IVORY,TRIM02,03
WATER WHITE,TRIM04
GRAY,TRIM1#,28,29
8202WIRING & CLAMP
27 parts on this diagram · 2 diagrams in section
