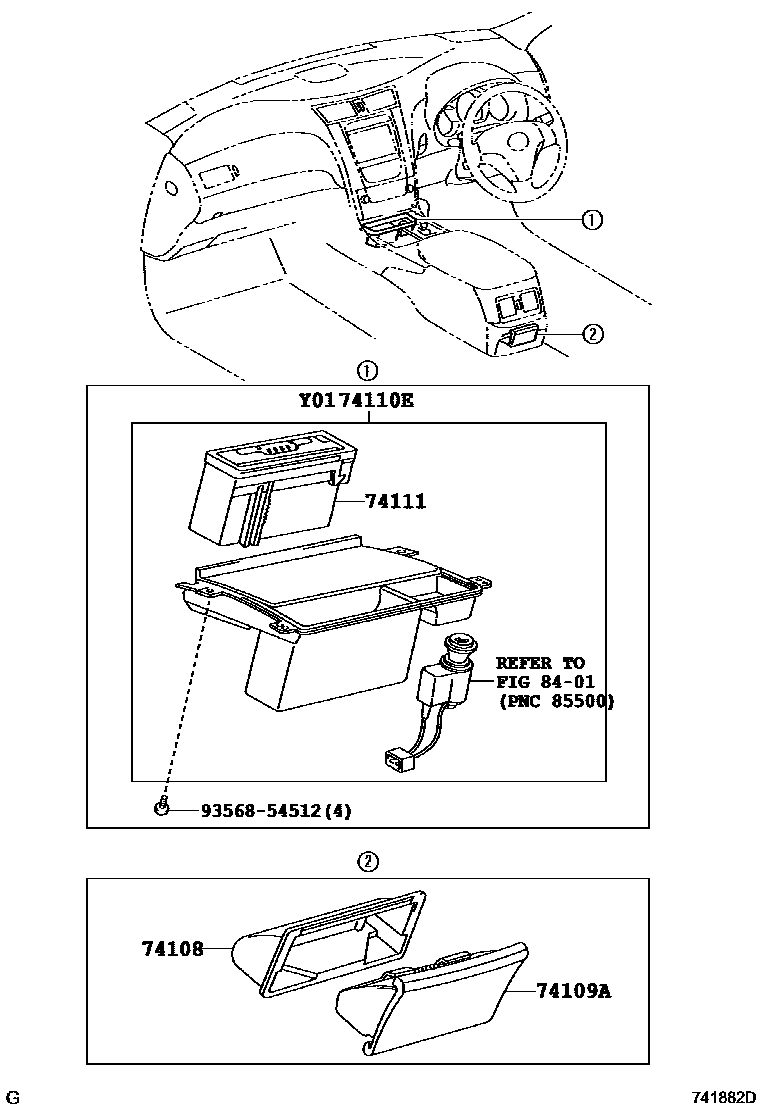

ASH RECEPTACLE

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-30080iGWS191200602-201112

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-30110-A0iGWS191200709-200909

IVORY,TRIM00,01

sub74109-30110

main74109-30110-A1iGWS191200909-201112

IVORY,TRIM02,03

sub74109-30110

main74109-30110-B1iGWS191200709-201112

LT.GRAY,TRIM1#

sub74109-30110

main74109-30110-C0iGWS191200602-200709

BLACK,TRIM2#

sub74109-30110

main74109-30110-C0iGWS191200709-201112

BLACK,TRIM04,2#

sub74109-30110

74110ERECEPTACLE ASSY, FRONT ASH

main74110-30400-B0iGWS191200602-200709

DK.GRAY,TRIM1#

main74110-30400-B1iGWS191200709-201112

GRAY,TRIM04,10,22,23

main74110-30400-D0iGWS191200709-201112

REDDISH BROWN,TRIM01,03,20,21

main74110-30400-D0iGWS191200602-200709

REDDISH BROWN,TRIM2#

main74110-30400-E0iGWS191200709-201112

MIDIUM BROWN,TRIM00,02,11,26

main74110-30400-E0iGWS191200602-200709

MIDIUM BROWN,TRIM0#

74111BOX, FRONT ASH RECEPTACLE

main74111-30190iGWS191200602-200709

8401

9356854512

main93568-54512

6 parts on this diagram · 1 diagram in section
