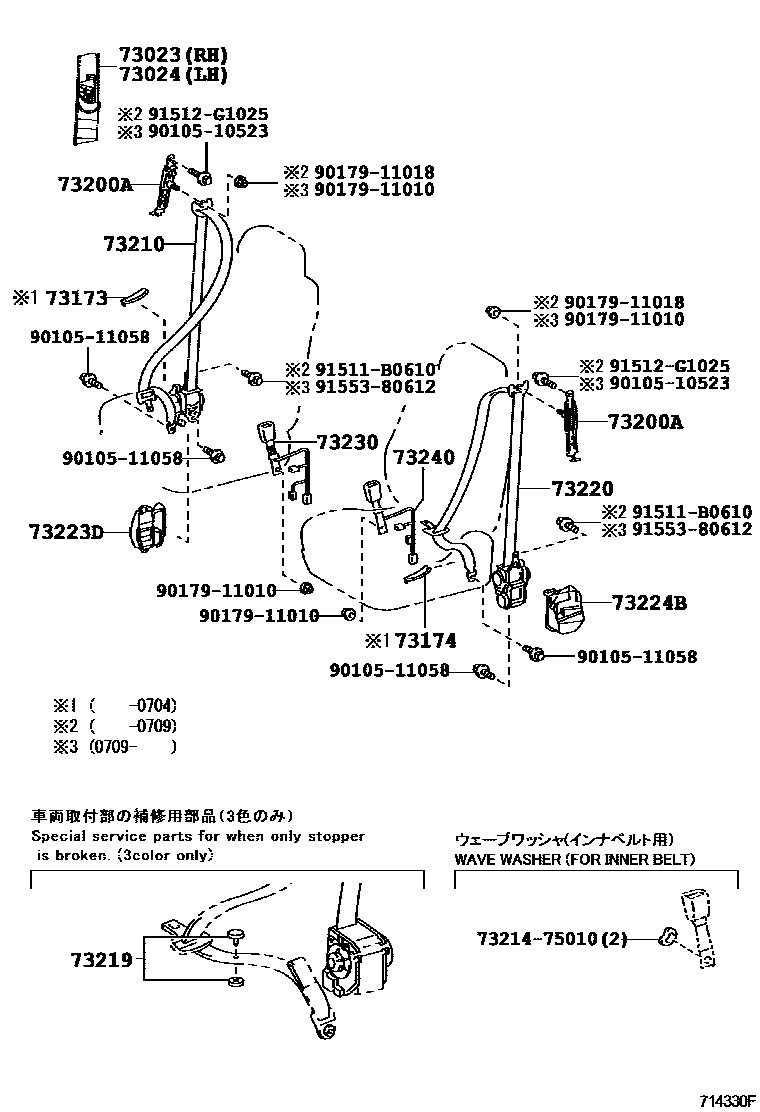

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1����� 0003 1��������� & �������

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-30010-A2iGWS191200709-200809

IVORY,TRIM0#

main73023-30010-B2iGWS191200709-200809

LT.GRAY,TRIM1#,2#

main73023-30010-B5iGWS191200602-200709

GRAY,TRIM1#,28,29

main73023-30020-A0iGWS191200809-200909

IVORY,TRIM0#

main73023-30020-A1iGWS191200909-201112

IVORY,TRIM02,03

main73023-30020-A2iGWS191200909-201112

WATER WHITE,TRIM04

main73023-30020-B0iGWS191200809-201112

LT.GRAY,TRIM1#,2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-30010-A2iGWS191200602-200709

IVORY,TRIM0#

main73024-30010-B2iGWS191200709-200809

LT.GRAY,TRIM1#,2#

main73024-30010-B5iGWS191200602-200709

GRAY,TRIM1#,28,29

main73024-30020-A0iGWS191200809-200909

IVORY,TRIM0#

main73024-30020-A1iGWS191200909-201112

IVORY,TRIM02,03

main73024-30020-A2iGWS191200909-201112

WATER WHITE,TRIM04

main73024-30020-B0iGWS191200809-201112

LT.GRAY,TRIM1#,2#

73173COVER, FRONT SEAT BELT HOLE, RH

main73173-30060-A0iGWS191200602-200704

IVORY,TRIM0#

main73173-30060-B0iGWS191200602-200704

GRAY,TRIM1#

main73173-30060-C0iGWS191200602-200704

BLACK,TRIM28,29

73174COVER, FRONT SEAT BELT HOLE, LH

main73174-30060-A0iGWS191200602-200704

IVORY,TRIM0#

main73174-30060-B0iGWS191200602-200704

GRAY,TRIM1#

main73174-30060-C0iGWS191200602-200704

BLACK,TRIM28,29

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-51020×2iGWS191200709

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-30A90-A0iGWS191200602-200709

IVORY,TRIM0#

main73210-30A90-B0iGWS191200602-200709

GRAY,TRIM1#

main73210-30A90-B1iGWS191200709-200808

GRAY,TRIM1#

main73210-30A90-C0iGWS191200602-200709

BLACK,TRIM28,29

main73210-30A90-C1iGWS191200709-200808

BLACK,TRIM2#

main73210-30D40-A0iGWS191200809-200909

IVORY,TRIM0#

main73210-30D40-A1iGWS191200909-201112

IVORY,TRIM02,03

main73210-30D40-B0iGWS191200809-200909

GRAY,TRIM1#

main73210-30D40-B2iGWS191200909-201112

GRAY/WATER WHITE,TRIM04

main73210-30D40-B3iGWS191200909-201112

GRAY/LT.GRAY,TRIM1#

main73210-30D40-C0iGWS191200809-200909

BLACK,TRIM2#

main73210-30D40-C2iGWS191200909-201112

BLACK,TRIM2#

main73210-30D30-C2iGWS191201007-201109

73219STOPPER, TONGUE PLATE

main73219-33010iGWS191200709

main73219-33020iGWS191200709

main73219-33030iGWS191200709

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-30A90-A0iGWS191200602-200709

IVORY,TRIM0#

main73220-30A90-B0iGWS191200602-200709

GRAY,TRIM1#

main73220-30A90-B1iGWS191200709-200808

GRAY,TRIM1#

main73220-30A90-C0iGWS191200602-200709

BLACK,TRIM28,29

main73220-30A90-C1iGWS191200709-200808

BLACK,TRIM2#

main73220-30D00-A0iGWS191200809-200908

IVORY,TRIM0#

main73220-30D00-B0iGWS191200809-200908

GRAY,TRIM1#

main73220-30D00-C0iGWS191200809-200908

BLACK,TRIM2#

main73220-30D01-A1iGWS191200909-200912

IVORY,TRIM02,03

main73220-30D01-B2iGWS191200909-200912

GRAY/WATER WHITE,TRIM04

main73220-30D01-B3iGWS191200909-200912

GRAY/LT.GRAY,TRIM1#

main73220-30D01-C2iGWS191200909-200912

BLACK,TRIM2#

main73220-30D20-A1iGWS191200912-201112

IVORY,TRIM02,03

main73220-30D20-B2iGWS191200912-201112

GRAY/WATER WHITE,TRIM04

main73220-30D20-B3iGWS191200912-201112

GRAY/LT.GRAY,TRIM1#

main73220-30D20-C2iGWS191200912-201112

BLACK,TRIM2#

main73220-30D10-C2iGWS191201007-201109

73223COVER, SEAT BELT RETRACTOR

main73223-30070iGWS191200602-200709

73223DCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-30120iGWS191200602-200709

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-30090iGWS191200602-200709

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-30A10-A0iGWS191200709-200909

IVORY,TRIM0#

main73230-30A10-A1iGWS191200909-201112

IVORY,TRIM02,03

main73230-30A10-A2iGWS191200909-201112

WATER WHITE,TRIM04

main73230-30A10-B0iGWS191200602-200709

GRAY,TRIM1#

main73230-30A10-B1iGWS191200709-201112

LT.GRAY,TRIM1#

main73230-30A10-C0iGWS191200709-201112

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-30A20-A0iGWS191200709-200909

IVORY,TRIM0#

main73230-30A20-A1iGWS191200909-201112

IVORY,TRIM02,03

main73230-30A20-A2iGWS191200909-201112

WATER WHITE,TRIM04

main73230-30A20-B0iGWS191200602-200709

GRAY,TRIM1#

main73230-30A20-B1iGWS191200709-201112

LT.GRAY,TRIM1#

main73230-30A20-C0iGWS191200709-201112

BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511058

main90105-11058

9017911010

main90179-11010

9017911018

main90179-11018

91511B0610

main91511-B0610

91512G1025

main91512-G1025

9155380612

main91553-80612

21 parts on this diagram · 3 diagrams in section
