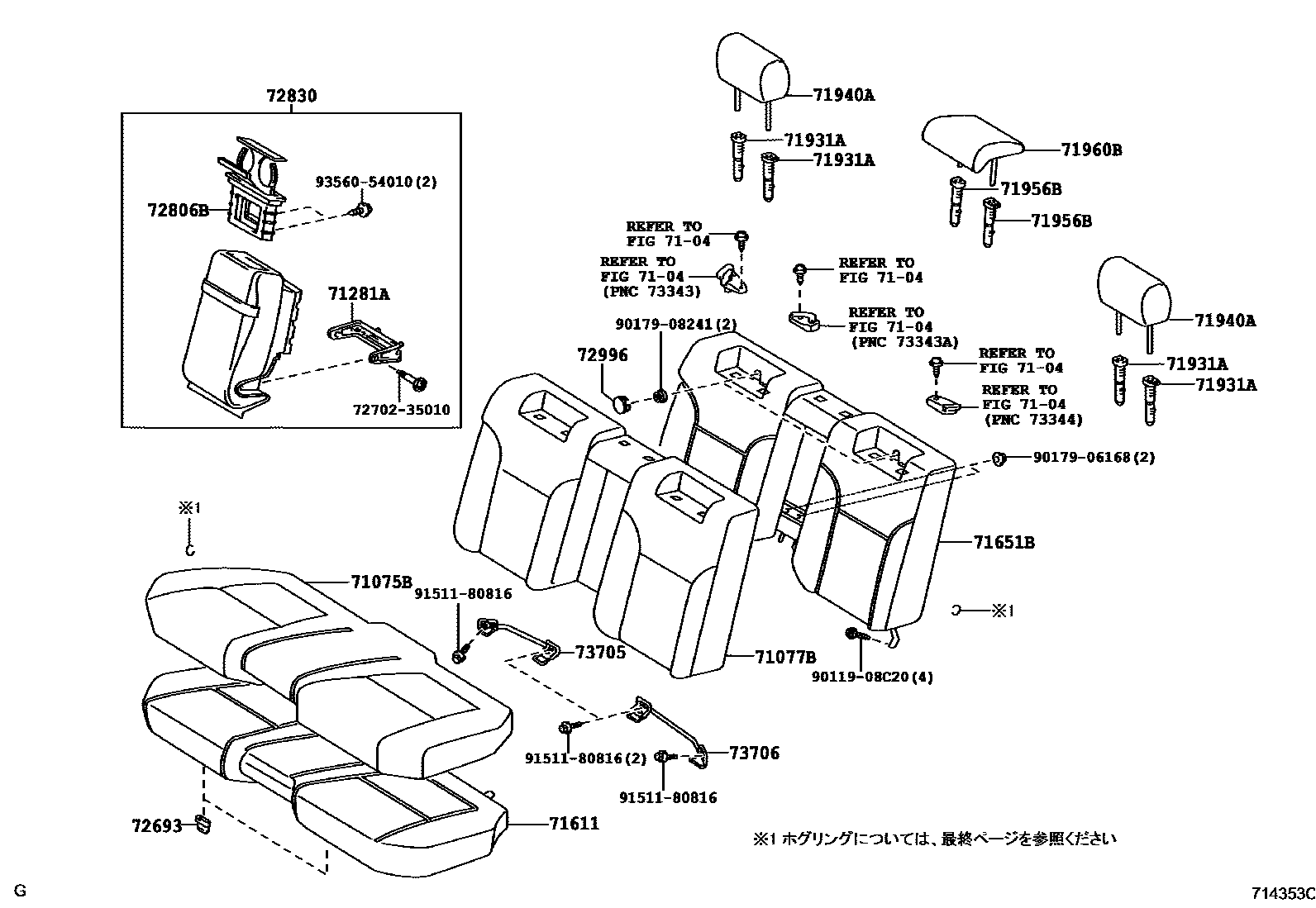

REAR SEAT & SEAT TRACK
7104SEAT BELT & CHILD RESTRAINT SEAT
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
71281AHINGE, REAR SEAT CENTER ARMREST
71611PAD, REAR SEAT CUSHION
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
71931ASUPPORT, REAR SEAT HEADREST
71940AHEADREST ASSY, REAR SEAT
71956BSUPPORT, REAR SEAT HEADREST
71960BHEADREST ASSY, REAR SEAT, CENTER
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
72693HOOK, REAR SEAT CUSHION LOCK
72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
IVORY,TRIM0#
IVORY,TRIM0#
BLACK,TRIM2#
72830ARMREST ASSY, REAR SEAT, CENTER
72996COVER, REAR SEATBACK, RH
NEW IVORY,TRIM0#
IVORY,TRIM02,03
WATER WHITE,TRIM04
GRAY,TRIM1#
LT.GRAY,TRIM1#
BLACK,TRIM28,29
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
7270235010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-35010
9011908C20
main90119-08C20
9017906168
main90179-06168
9017908241
main90179-08241
9151180816
main91511-80816
9356054010
main93560-54010
22 parts on this diagram · 2 diagrams in section
