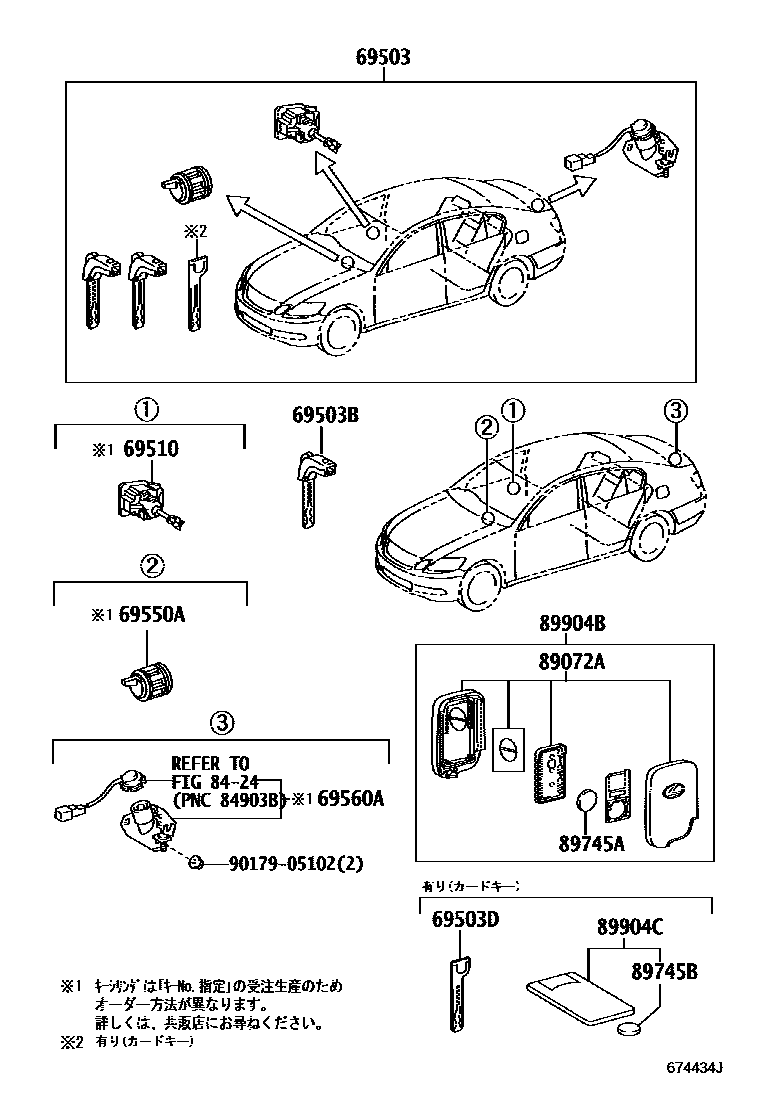

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-30B70iGWS191200602-200709

main69005-30C80iGWS191200709

main69005-30D90iGWS191200809

69503BKEY, CUT

main69515-30290×2iGWS191200602-200709

main69515-50240×2iGWS191200709-201112

69503DKEY, CUT(CARD KEY)

main69515-30330iGWS191200905

main69515-50220iGWS191200809-200904

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-30310iGWS191200709-201112

main69510-48050iGWS191200602-200709

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-30150iGWS191200602-200709

main69550-50040iGWS191200709-201112

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-30340iGWS191200602-200709

main69560-50090iGWS191200709-201112

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-50770iGWS191200709-200809

main89072-50771iGWS191200809-201112

main89072-53220iGWS191200602-200709

89745ABATTERY, TRANSMITTER

main89745-52020iGWS191200602-200709

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iGWS191200809-201112

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-30341iGWS191200602-200709

main89904-30F80×2iGWS191201108-201112

main89904-50C00iGWS191200709-200809

main89904-50D30×2iGWS191200809-201108

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main89904-30F90iGWS191201108-201112

main89904-50E10iGWS191200809-201108

9017905102

main90179-05102

13 parts on this diagram · 1 diagram in section
