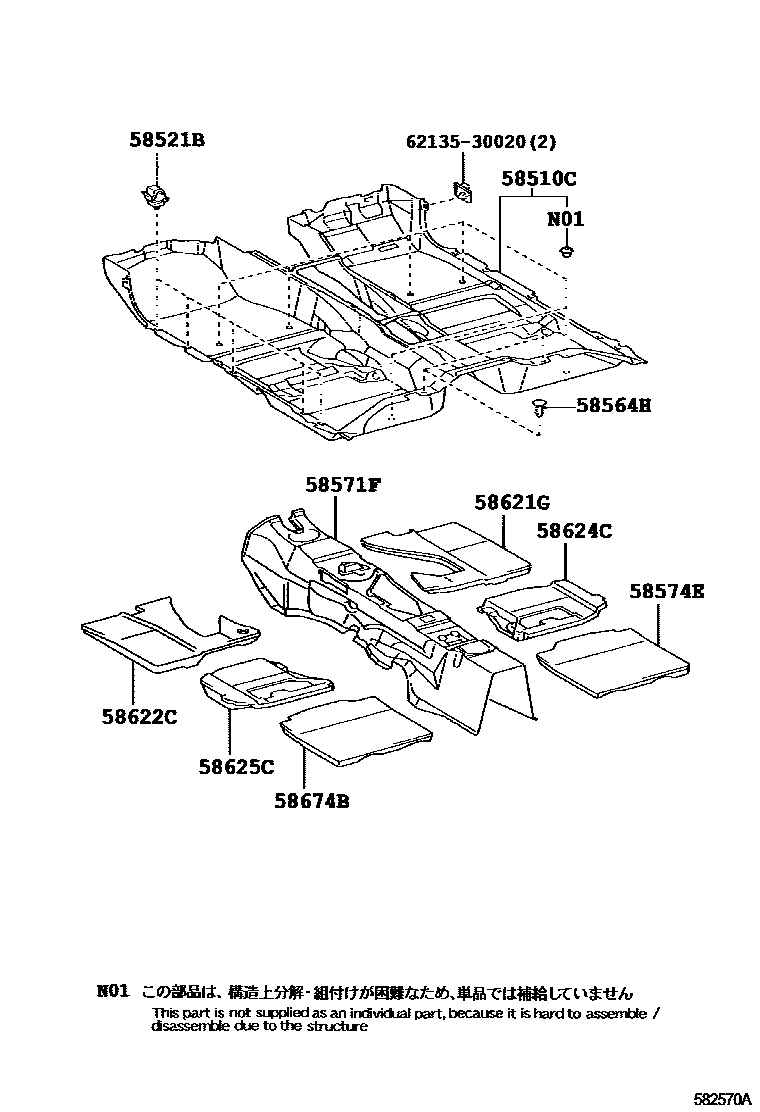

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-30A90-A0iGWS191200709-200909

IVORY,TRIM00,01

main58510-30A90-A1iGWS191200909-201112

IVORY,TRIM02,03

main58510-30A90-B0iGWS191200709-201112

LT.GRAY,TRIM1#

main58510-30A90-C0iGWS191200709-201112

BLACK,TRIM04,2#

main58510-3K790-A0iGWS191200602-200709

IVORY,TRIM0#

main58510-3K790-B0iGWS191200602-200709

GRAY,TRIM1#

main58510-3K790-C0iGWS191200602-200709

BLACK,TRIM28,29

main58510-30A90-D0iGWS191200804-200809

58521BHOOK, FLOOR CARPET

main58521-30140×12iGWS191200709

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-05164-B8×2iGWS191200602-200709

LT.GRAY

58571FPAD, FRONT FLOOR, FRONT

main58571-30090iGWS191200602-200709

main58571-30160iGWS191200709

58574EPAD, REAR FLOOR SILENCER, NO.1

main58673-30020iGWS191200602-200709

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-30150iGWS191200602-200709

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-30160iGWS191200602-200709

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-30140iGWS191200602-200709

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-30090iGWS191200602-200709

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-30020iGWS191200602-200709

6213530020FRAME, REAR SIDE WINDOW

main62135-30020

11 parts on this diagram · 1 diagram in section
