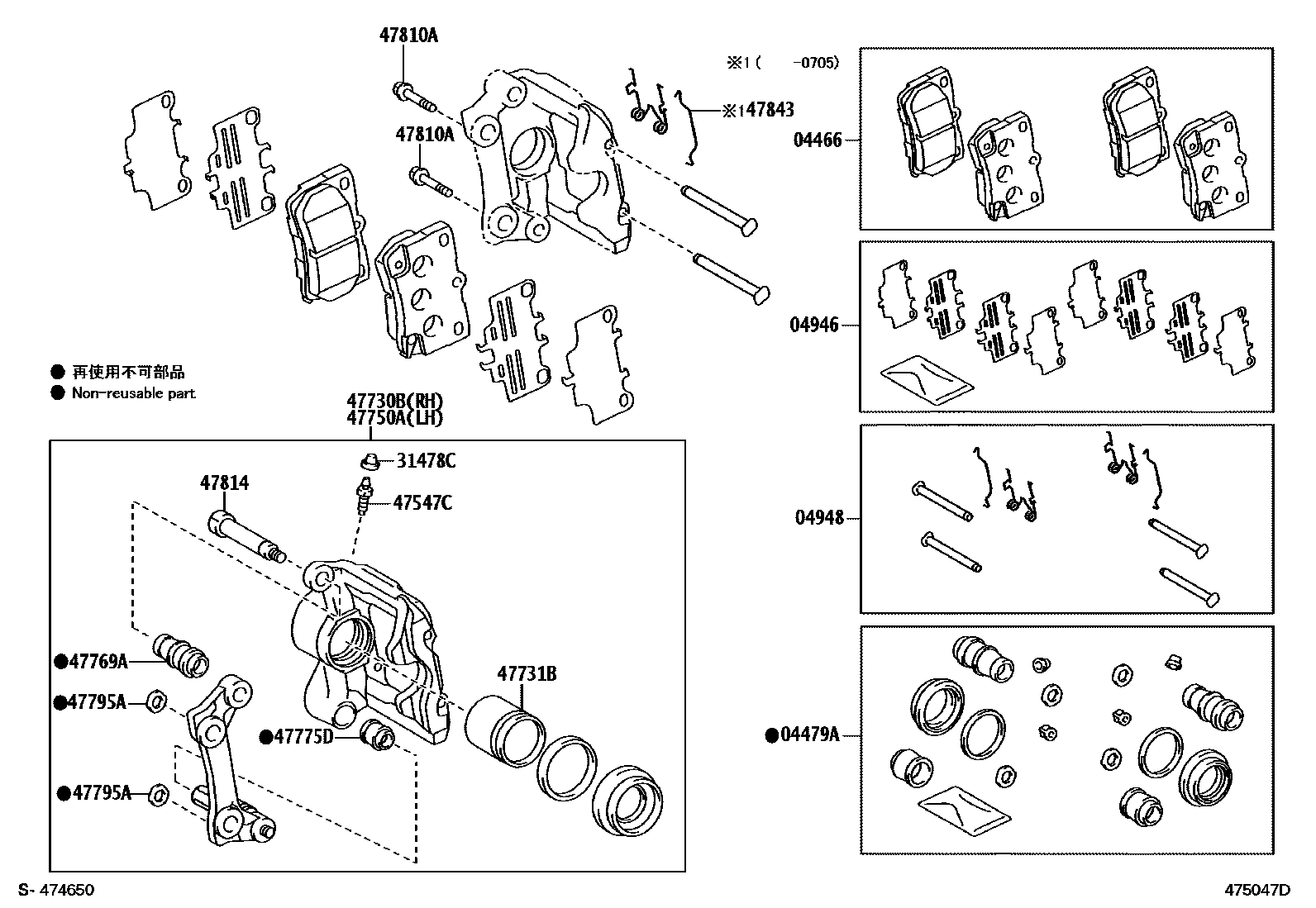

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-22190iGWS191200602-200709

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-22170iGWS191201104

main04479-61020iGWS191200602-200707

main04479-61040iGWS191200709-201104

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-22090iGWS191200602-200709

04948FITTING KIT, DISC BRAKE, REAR

main04948-22090iGWS191200602-200705

main04948-30210iGWS191200705-200709

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iGWS191200602-200709

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030×2iGWS191200602-200709

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-22221iGWS191200602-200709

47731BPISTON, REAR DISC BRAKE

main47831-22220×2iGWS191200602-200709

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-22221iGWS191200602-200709

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300×2iGWS191200602-200709

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-22221×2iGWS191200602-200707

main47875-30340×2iGWS191200707-200709

main47875-30341×2iGWS191201104

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300×4iGWS191200602-200709

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525×4iGWS191200602-200709

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300×2iGWS191200602-200709

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-30300×2iGWS191200602-200705

15 parts on this diagram · 1 diagram in section
