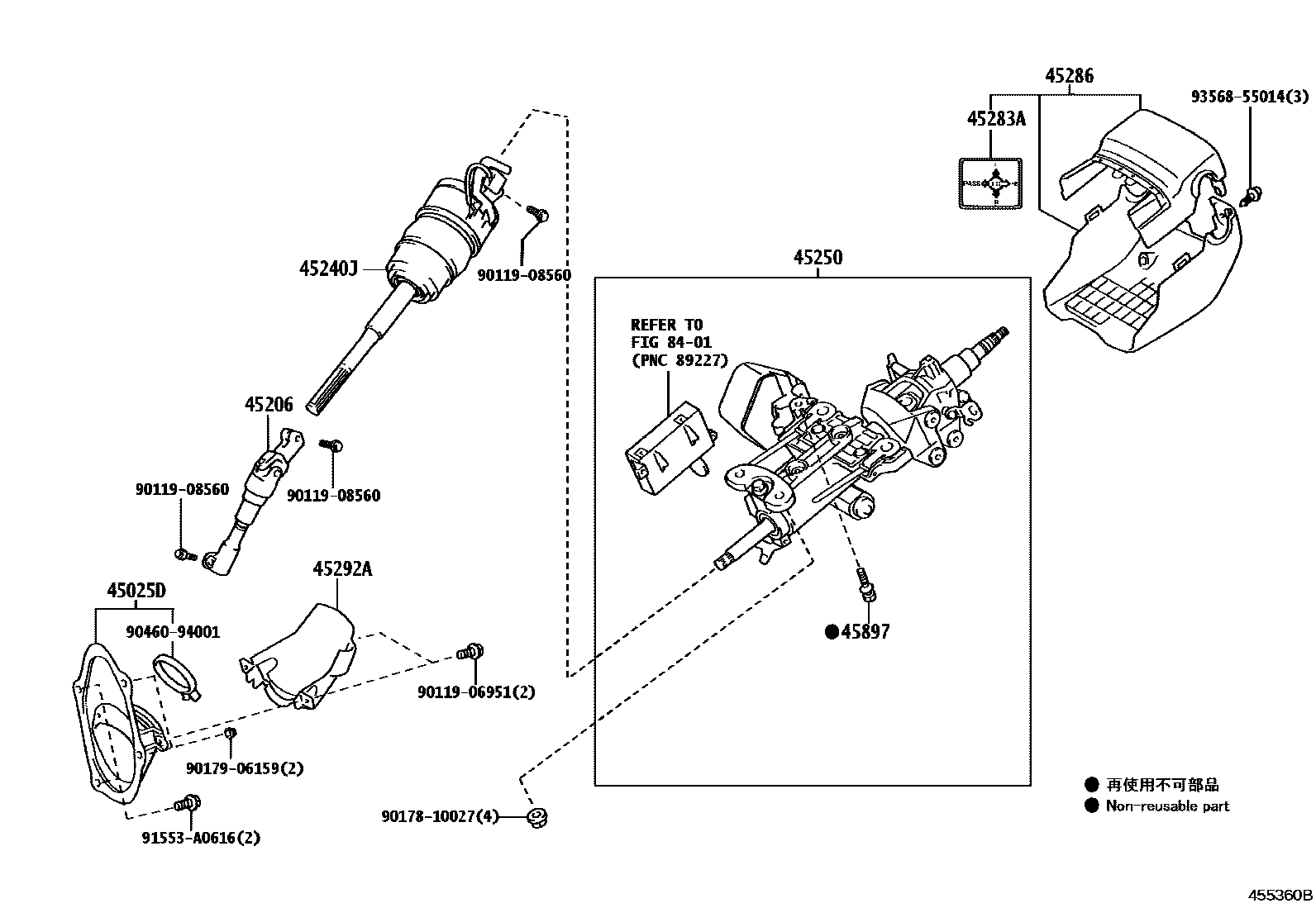

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30370iGWS191200602-200709

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-30120iGWS191200602-200709

main45206-30140iGWS191201103-201112

main45206-30150iGWS191200709-201103

45240JACTUATOR ASSY, STEERING

main45240-30100iGWS191200602-200701

main45240-30101iGWS191200709-200901

main45240-30102iGWS191200902-201112

main45240-30130iGWS191200702-200709

45250COLUMN ASSY, STEERING

main45250-30A50iGWS191200602-200709

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iGWS191200602-200709

45286COVER, STEERING COLUMN

main45024-30901-C0supersedes 45286-3A904-C0iGWS191200602-200709

main45024-30901-E0supersedes 45286-3A904-E0iGWS191200709-201112

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-30090iGWS191200602-200709

45897BOLT, STEERING LOCK SET

main45897-12020×2iGWS191200602-200709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906951

main90119-06951

9011908560

main90119-08560

9017810027

main90178-10027

9017906159

main90179-06159

9046094001

main90460-94001

91553A0616

main91553-A0616

9356855014

main93568-55014

16 parts on this diagram · 2 diagrams in section
