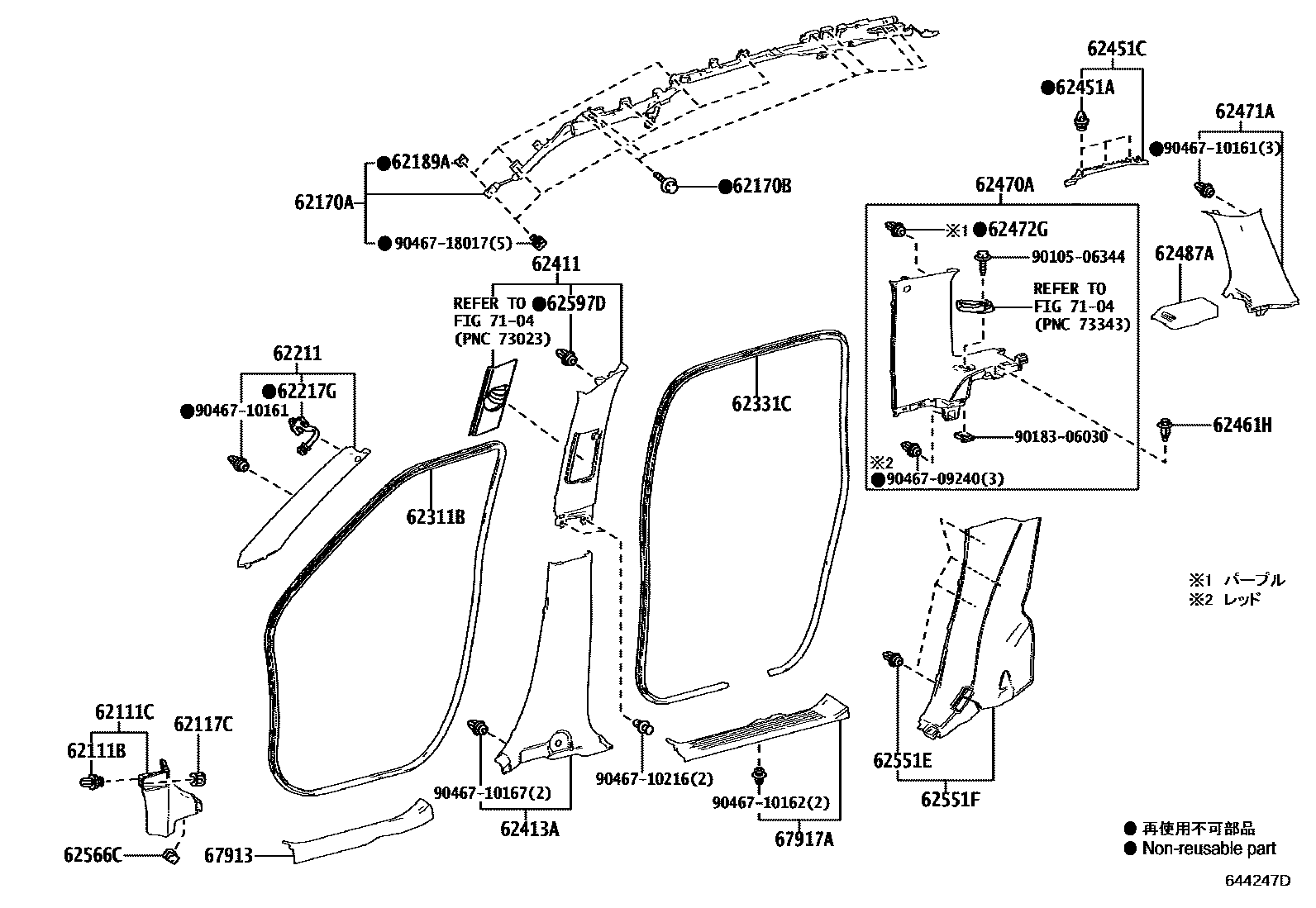

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM4#
BLACK,TRIM4#
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
LT.GRAY,TRIM4#
LT.GRAY,TRIM4#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62411GARNISH, CENTER PILLAR, RH
LT.GRAY,TRIM4#
LT.GRAY,TRIM4#
62413AGARNISH, CENTER PILLAR, LOWER RH
KURO KOHAKU,TRIM4#
KOHAKU,TRIM4#
62451ACLIP, SIDE GARNISH
62451CGARNISH, ROOF SIDE RAIL, REAR RH
LT.GRAY,TRIM4#
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62470AGARNISH ASSY, ROOF SIDE, INNER RH
LT.GRAY,TRIM4#
LT.GRAY,TRIM4#
62471AGARNISH, ROOF SIDE, INNER RH
LT.GRAY,TRIM4#
62472GCLIP (FOR ROOF SIDE GARNISH)
62487ACOVER, ROOF SIDE INNER GARNISH, RH
LT.GRAY,TRIM4#
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
62551FGARNISH, REAR SEAT SIDE, RH
KURO KOHAKU,TRIM4#
KOHAKU,TRIM4#
62566CCLAMP, COWL SIDE TRIM
62597DCLIP
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM4#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM4#
7104
9010506344
main90105-06344
9018306030
main90183-06030
9046709240
main90467-09240
9046710161
main90467-10161
9046710162
main90467-10162
9046710167
main90467-10167
9046710216
main90467-10216
9046718017
main90467-18017
34 parts on this diagram · 2 diagrams in section
