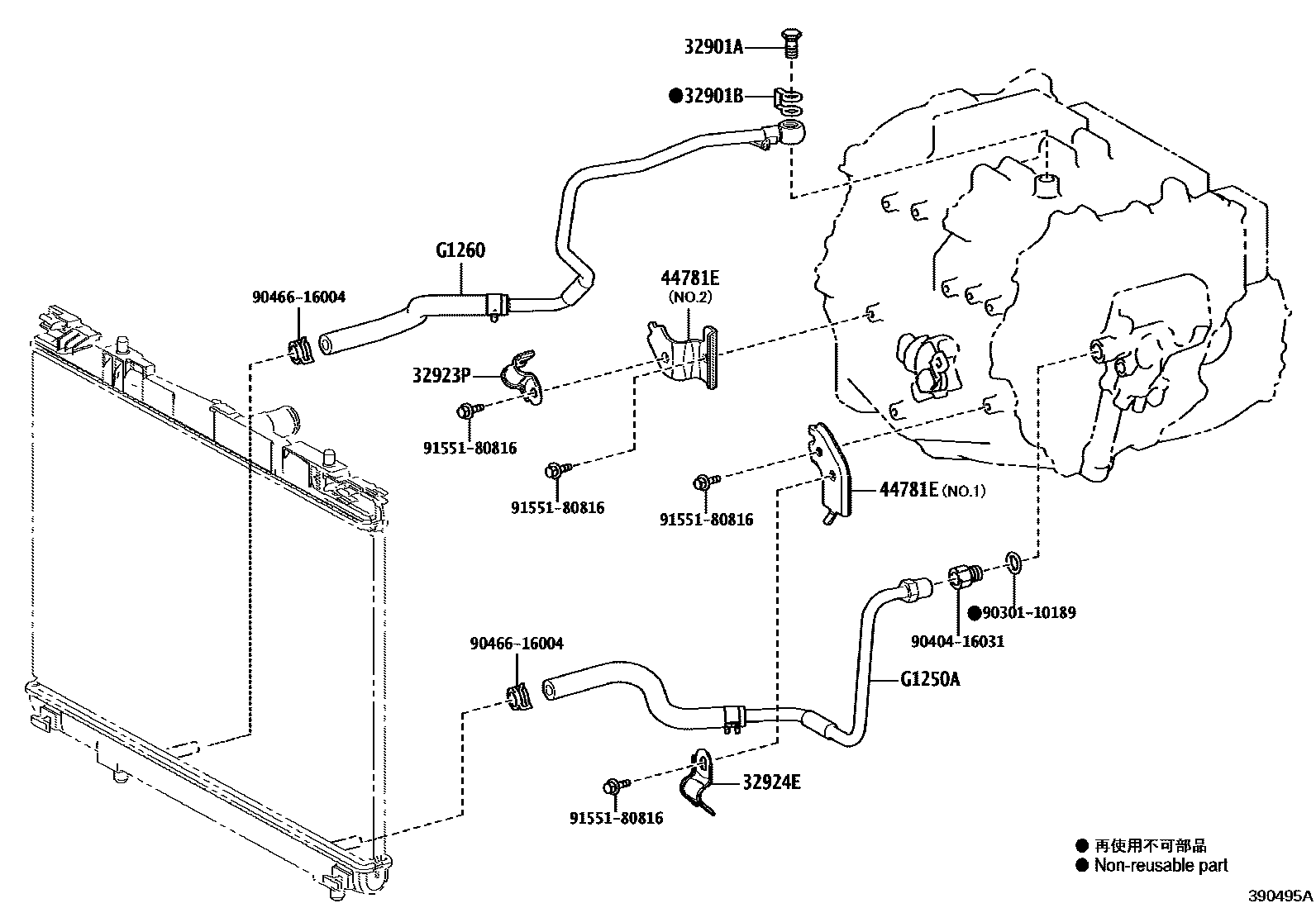

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iNTP10201710

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iNTP10201710

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040iNTP10201710

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-52040iNTP10201710

44781EBRACKET, HOSE

main44781-52050iNTP10201710

main44781-52060iNTP10201710

G1250APIPE ASSY, MOTOR COOLING

mainG125052020iNTP10201710

G1260PIPE ASSY, MOTOR COOLING, NO.2

mainG126052010iNTP10201710

9030110189

main90301-10189

9040416031

main90404-16031

9046616004

main90466-16004

9155180816

main91551-80816

11 parts on this diagram · 1 diagram in section
