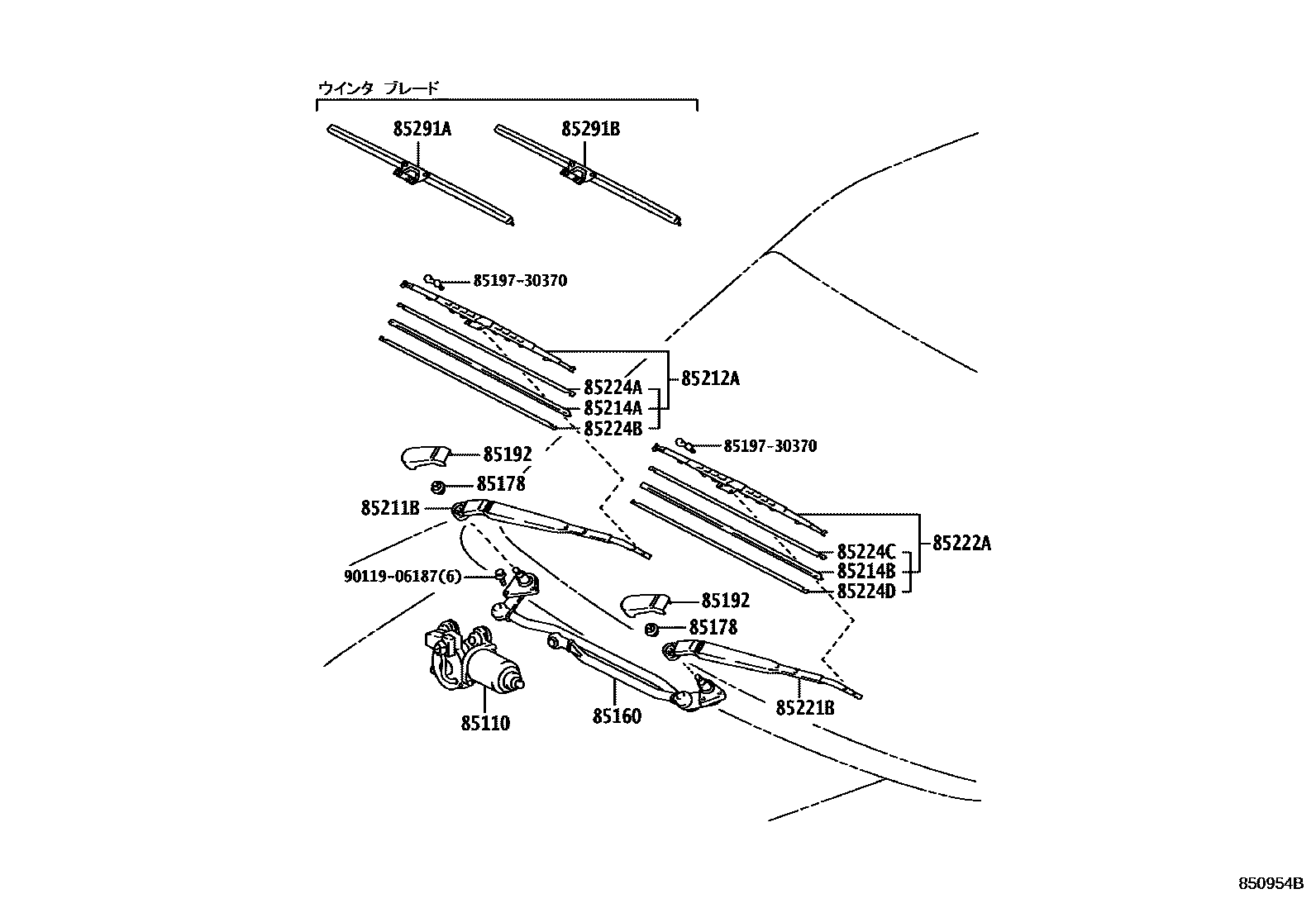

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-43010iTSS1#; YXS10..4HC200709

85160LINK ASSY, WINDSHIELD WIPER

main85150-43010iYXS10..4HC200709

main85150-43011iTSS1#201508

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113×2iSXS13; YXS10..CRW..4HC200108-200707

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2iGXS10,LXS11,SXS11,YXS1#199512-200108

85211BARM, FRONT WIPER, RH

main85211-43010iTSS1#..DLX,SG,STD; YXS10..4HC200709

main85211-43020iTSS1#; YXS10..4HC200709

85212ABLADE, FR WIPER, RH

main85212-43010iSXS13; YXS10..CRW..4HC200108-200707

main85212-43020iGXS10200108-200210

main85212-43021iSXS13; YXS10..CRW..4HC200509-200707

85214ARUBBER, WIPER, RH

main85214-24050iGBS12,GXS12,SXS13,YXS1#200408-200508

main85214-24051iSXS13; YXS10..CRW..4HC200509-200707

main85214-30250iTSS1#..DLX,SG,STD; YXS10..4HC200709

main85214-53050iGBS12,GXS12,SXS13,YXS1#..DLX,SDX,SG,STD200108-200407

85214BRUBBER, WIPER, LH

main85214-24050iGBS12,GXS12,SXS13,YXS1#200408-200508

main85214-24051iTSS1#; YXS10..4HC200709

main85214-30250iTSS1#..DLX,SG,STD; YXS10..4HC200709

main85214-53050iYXS10..SAL200210-200407

85221BARM, FRONT WIPER, LH

main85221-43010iSXS13; YXS10..CRW..4HC200108-200707

main85221-43020iTSS1#; YXS10..4HC200709

85222ABLADE, FR WIPER, LH

main85222-43010iSXS13; YXS10..CRW..4HC200108-200707

main85222-43020iGXS10200108-200210

main85222-43021iSXS13; YXS10..CRW..4HC200509-200707

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-30380iGXS10,SXS11,YXS1#199908-200108

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-30380iGXS10,SXS11,YXS1#199908-200108

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-60040iGXS10,SXS11,YXS1#199908-200108

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-60040×2iYXS10..4H200108-200706

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-30010iTSS1#..DLX,SG,STD200709-201507

main85291-30040iSXS13; YXS10..CRW..4HC200108-200707

main85291-33060iGBS12,YXS1#..4FC,5F200108

main85291-40010iSXS13; YXS10..CRW..4HC200108-200707

main85291-43010iTSS1#..DLX,SG,STD201507-201801

main85291-43020iTSS1#..DLX,SG,STD201507-201801

main85291-43030iGXS10,LXS11,YXS1#199512-199604

L=500 2PIECE

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-30010iSXS13; YXS10..CRW..4HC200108-200707

main85291-30040iYXS1#..(4FC,5F)..(DLX,SG,STD)200108

main85291-33060iSXS13; YXS10..CRW..4HC200108-200707

main85291-40010iYXS1#..(4FC,5F)..(DLX,SG,STD)200108

main85291-43010iTSS1#..DLX,SG,STD201507-201801

main85291-43020iTSS1#..DLX,SG,STD201507-201801

main85291-43030iGXS10,LXS11,YXS1#199512-199604

L=500 2PIECE

8519730370

main85197-30370

9011906187

main90119-06187

18 parts on this diagram · 2 diagrams in section
