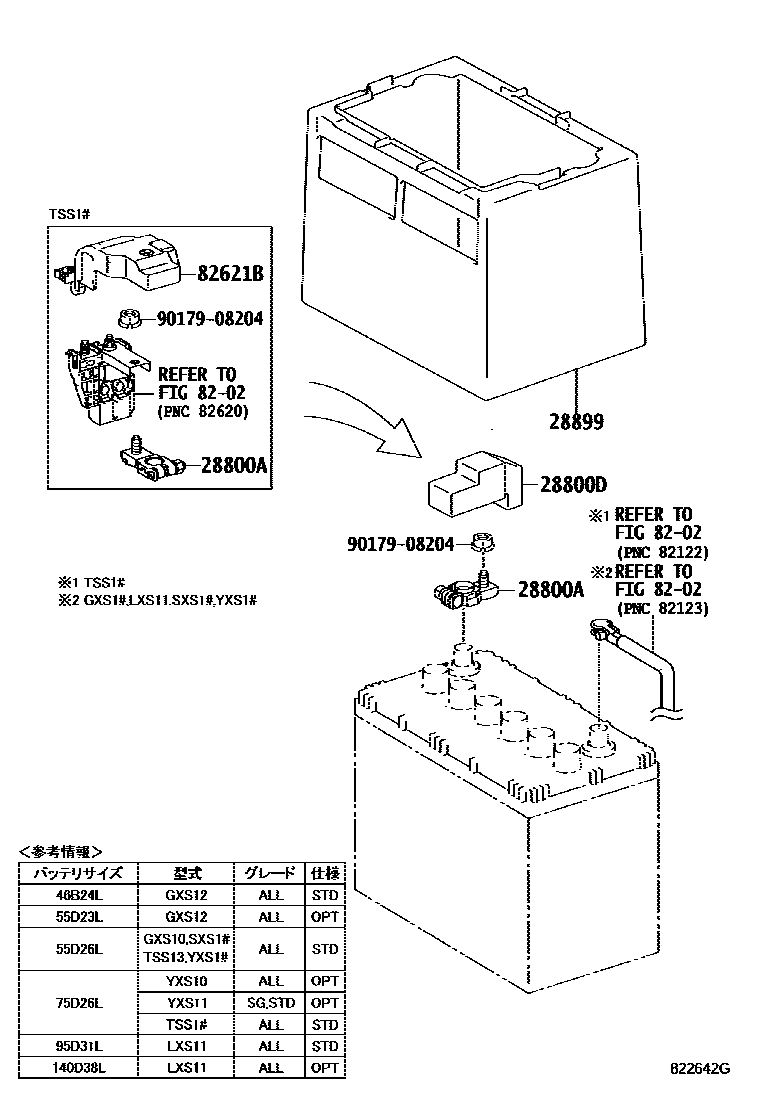

BATTERY & BATTERY CABLE

0001 1 0002 1

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i1GGPE,2LTE,4SFE,3YPE..GXS10,LXS11,SXS11,YXS1#199512-200108

main90982-05054i3YPE..YXS10..4H;3YPE..YXS10..SED..4HC; 3YPE..YXS10..CRW..4HC200108-200706

main90982-05055i1GFE..GXS12200108-200708

main90982-05056i1GFE..GBS12200210

main90982-05062i1TR#..TSS1#200709

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i3YPE..YXS10..4H;3YPE..YXS10..SED..4HC; 3YPE..YXS10..CRW..4HC200108-200706

main82821-35020i1GFE..GBS12200210

28899INSULATOR, BATTERY

main28899-46070i3SFE..SXS13200108-200707

main28899-76010i1GFE..GXS12200108-200708

main28899-76030i1GFE..GXS12200108-200708

8202WIRING & CLAMP

→ Go to FIG 82-02

82621BCOVER, FUSIBLE LINK

main82621-43010iTSS1#200709

9017908204

main90179-08204

6 parts on this diagram · 2 diagrams in section
