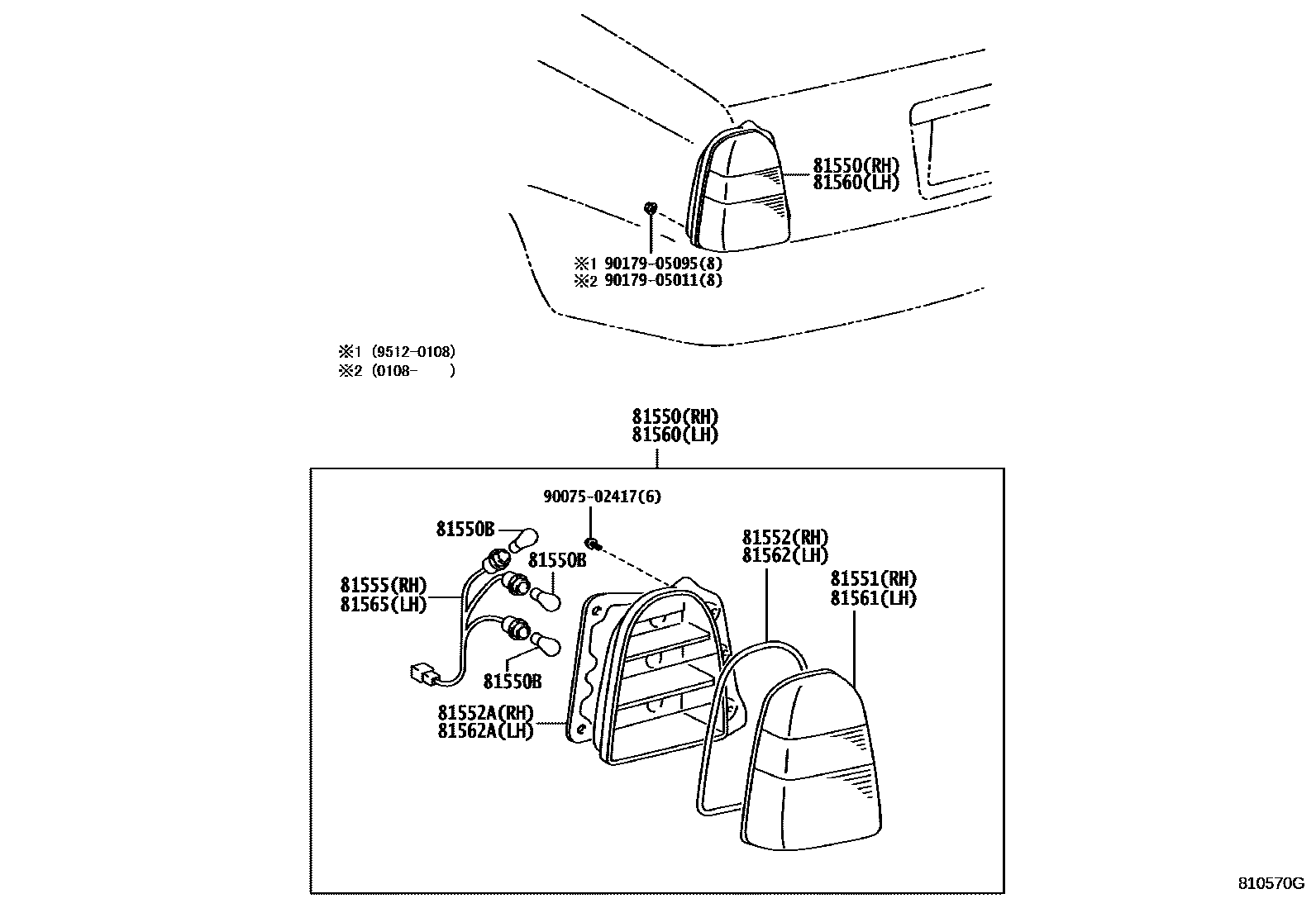

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

main81550-43011iYXS10..CRW..4HC200406-200707

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11059×2iGBS12,GXS1#,YXS10..SED200108-200808

main90981-13044×4iGBS12,GXS1#,YXS10..SED200108-200406

main90981-15011×2iTSS10..SED200808

main99132-11210×4iGXS10,LXS11,SXS11,YXS1#199512-200108

main99132-21210×2iGXS10,LXS11,SXS11,YXS1#199512-200108

81551LENS, REAR COMBINATION LAMP, RH

main81551-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

main81551-43011iYXS10..CRW..4HC200406-200707

main81551-43020iGBS12,GXS1#,YXS10..SED200108-200405

main81551-43021iTSS10..SED200808-201011

main81551-43030iTSS10..SED201011

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81554-43010iTSS1#..DLX,SG,STD200709

main81554-43020iGBS12,GXS1#,YXS10..SED200108-200808

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

main90075-60002iTSS10..SED200808

81560LAMP ASSY, REAR COMBINATION, LH

main81560-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

main81560-43011iSXS13,YXS1#..(4FC,4H,5F)..(DLX,SG,STD)200406-200808

81561LENS, REAR COMBINATION LAMP, LH

main81561-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

main81561-43011iSXS13,YXS1#..(4FC,4H,5F)..(DLX,SG,STD)200406-200808

main81561-43020iGBS12,GXS1#,YXS10..SED200108-200405

main81561-43021iGBS12,GXS12,YXS10..SED200406-200808

main81561-43030iTSS10..SED201011

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81554-43010iYXS10..4HC200709-200808

main81564-43020iGBS12,GXS1#,YXS10..SED200108-200808

81562AGASKET, REAR COMBINATION LAMP, LH

main81552-43010iYXS10..4HC200709-200808

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-43010iTSS1#..DLX,SG,STD200709

main90075-60002iTSS10..SED200808

9007502417

main90075-02417

9017905011

main90179-05011

9017905095

main90179-05095

14 parts on this diagram · 4 diagrams in section
