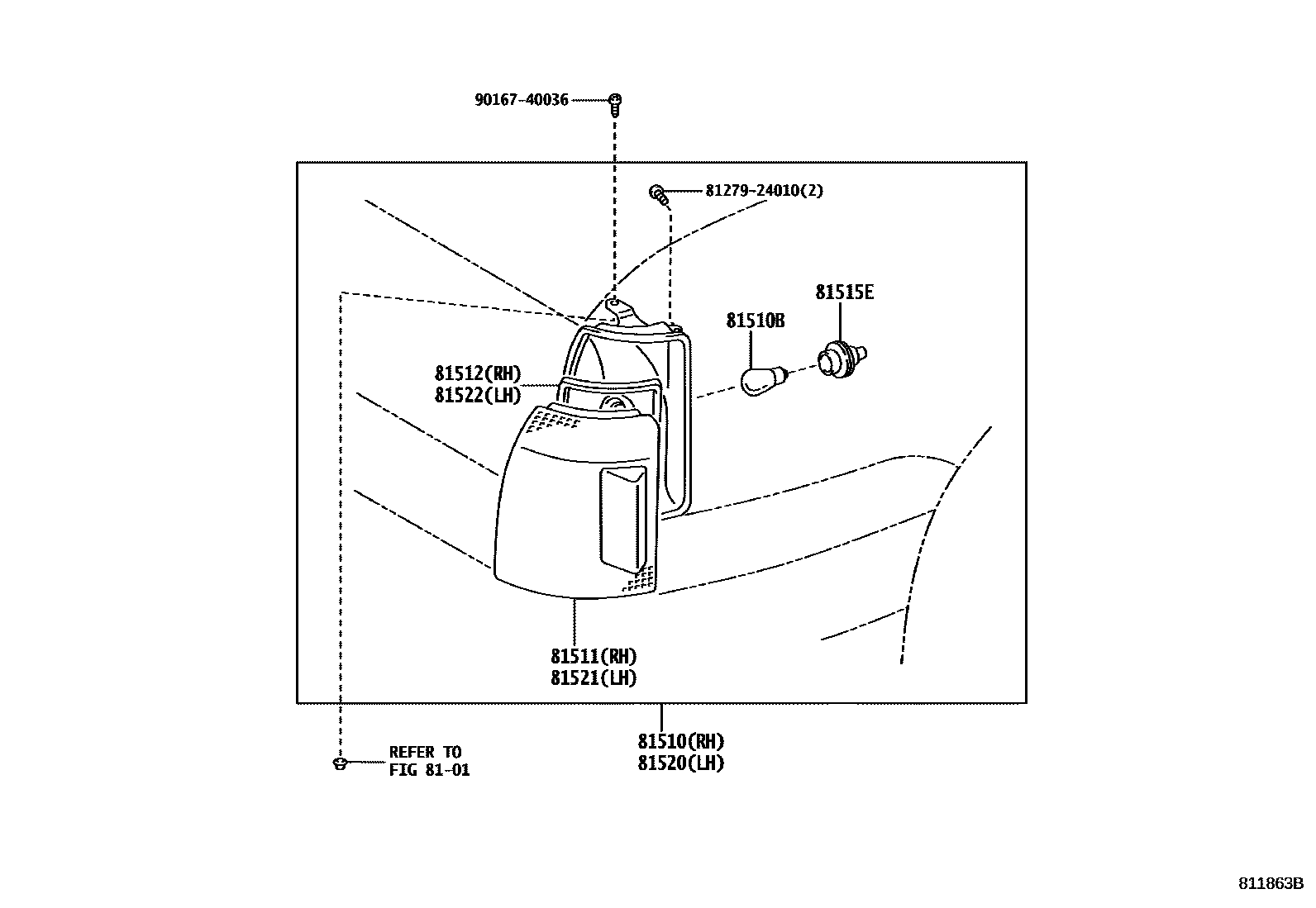

FRONT TURN SIGNAL LAMP

0001 1 0002 1

8101HEADLAMP

→ Go to FIG 81-01

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-43010iYXS10..CRW200108-200406

main81510-43020iSXS13,YXS11200108-200406

main81510-43031iTSS10..SED200808

main81510-43040iYXS10..4HC200709-200808

main81510-43050iSXS13,YXS11200406-200808

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iGXS10,LXS11,SXS11,YXS1#199512-200108

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-43010iGXS10,YXS10199512-200108

main81511-43020iSXS13,YXS11200108-200406

main81511-43030iGBS12,GXS1#,YXS10..SED200108-200405

main81511-43031iYXS10..CRW..4HC200406-200707

main81511-43050iSXS13,YXS11200406-200808

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

81515ESOCKET PLUG ASSY

main90075-99078×2iGXS10,LXS11,SXS11,YXS1#199512-200108

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-43010iYXS10..CRW200108-200406

main81520-43020iLXS11,SXS11,YXS11199512-200108

main81520-43031iTSS10..SED200808

main81520-43040iTSS10..CRW200808

main81520-43050iTSS11,13200709

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-43010iYXS10..CRW200108-200406

main81521-43020iSXS13,YXS11200108-200406

main81521-43030iGBS12,GXS1#,YXS10..SED200108-200405

main81521-43031iYXS10..4HC200709-200808

main81521-43050iTSS11,13200709

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81522-43010iGXS10,LXS11,SXS11,YXS1#199512-200108

8127924010WASHER, SIDE TURN SIGNAL LAMP

main81279-24010

9016740036

main90167-40036

11 parts on this diagram · 2 diagrams in section
