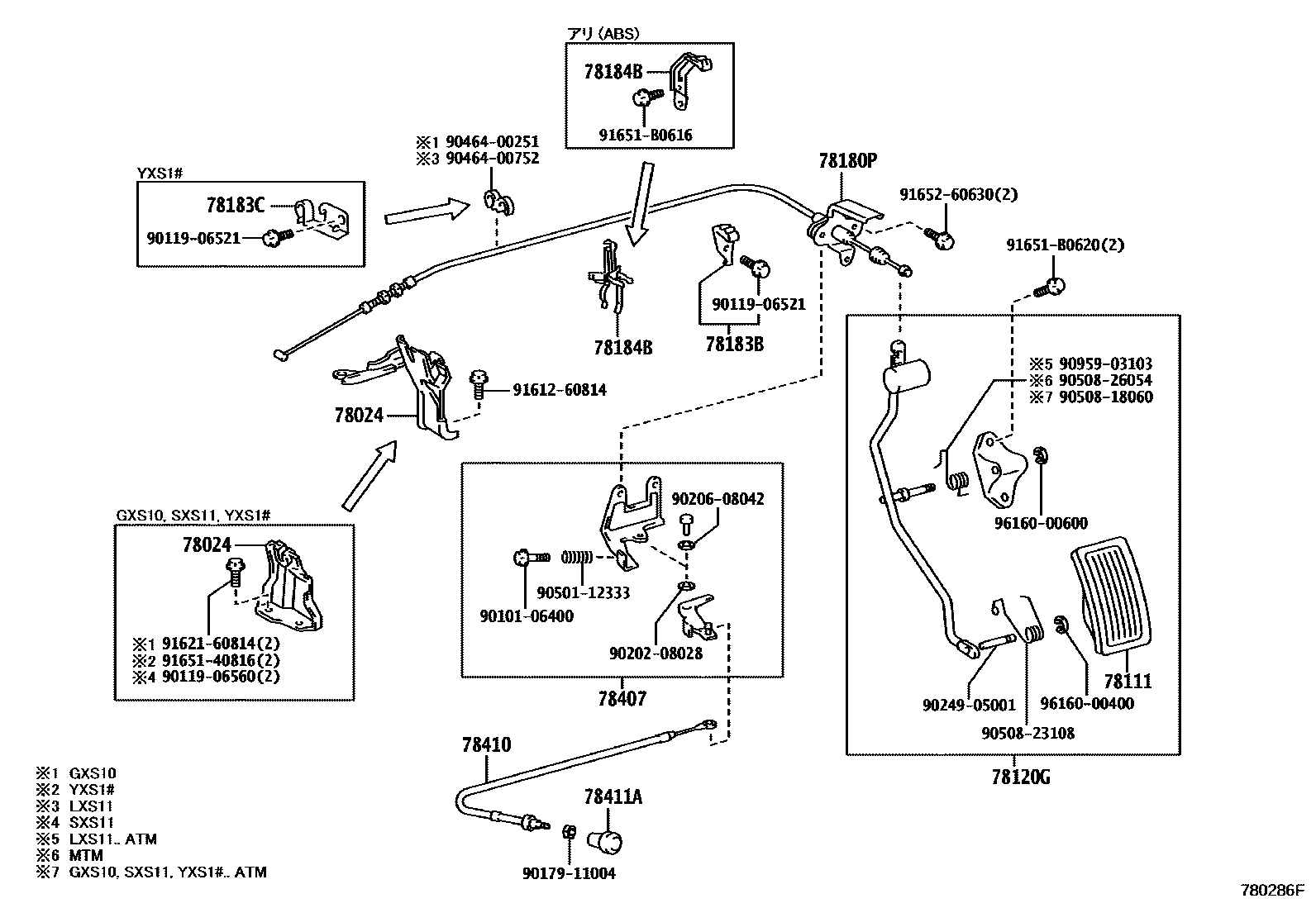

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1����� OR �������� 0007 1����� OR ��������

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-22080iYXS1#..4FC,5F;YXS10..CRW..4HC200108

main78024-22190iSXS11199604-200108

main78024-22200iSXS13200108-200707

main78024-26020iLXS11199512-199908

78111PEDAL, ACCELERATOR

main78111-20060iTSS1#200709-201106

main78111-22010iGXS10,LXS11,SXS11,YXS1#199512-199702

main78111-30081iTSS1#; YXS10..4HC200709

main78111-30120iYXS10..4H;YXS10..SED..4HC; YXS10..CRW..4HC200108-200706

main78111-53030iTSS1#201107

78120GROD ASSY, ACCELERATOR PEDAL

main78120-43010iLXS11,SXS11,YXS1#..MTM199512-200108

main78120-43020iSXS13..4FC200108-200707

main78120-43030iLXS11..4FC199512-199908

main78120-43050iGXS10200108-200210

main78120-43060iYXS11..5F200210

main78120-43090iTSS1#200709-201604

main78120-43091iTSS1#201605

main78120-43100iTSS1#200709-201106

main78120-43101iTSS1#201107-201604

main78120-43102iTSS1#201605

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-43010iGXS10199512-200102

main78180-43011iGXS10200110-200210

main78180-43020iYXS1#199512-200108

main78180-43021iYXS10..4HC200709

main78180-43030iSXS11199604-200108

main78180-43040iLXS11199512-199908

main78180-43050iGXS12200108-200310

main78180-43060iSXS13200108-200707

main78180-43070iGBS12200210-200310

main78180-43080iGXS12200310-200708

main78180-43090iGBS12200310

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-22061iYXS10..CRW..4HC200108-200706

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-43010iYXS1#199512-200108

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-22400iSXS11199604-199807

main78184-43010iGXS10,LXS11199512-199605

main78184-43011iGXS10,LXS11199605-199807

main78184-43020iYXS1#199512-199605

main78184-43021iYXS1#199605-199807

main78184-43030iYXS10..4H; YXS10..CRW..4HC; YXS10..SED..4HC200108-200706

78407ARM SUB-ASSY, THROTTLE CONTROL

main78407-22050iGXS10,YXS1#199512-200108

78410CABLE ASSY, THROTTLE CONTROL

main78410-43010iGXS10,YXS1#199512-200108

78411AKNOB, THROTTLE CONTROL CABLE

main78411-43010iGXS10,YXS1#199512-200108

9010106400

main90101-06400

9011906521

main90119-06521

9011906560

main90119-06560

9017911004

main90179-11004

9020208028

main90202-08028

9020608042

main90206-08042

9024905001

main90249-05001

9046400251

main90464-00251

9046400752

main90464-00752

9050112333

main90501-12333

9050818060

main90508-18060

9050823108

main90508-23108

9050826054

main90508-26054

9095903103

main90959-03103

9161260814

main91612-60814

9162160814

main91621-60814

9165140816

main91651-40816

91651B0616

main91651-B0616

91651B0620

main91651-B0620

9165260630

main91652-60630

9616000400

main96160-00400

9616000600

main96160-00600

32 parts on this diagram · 7 diagrams in section
