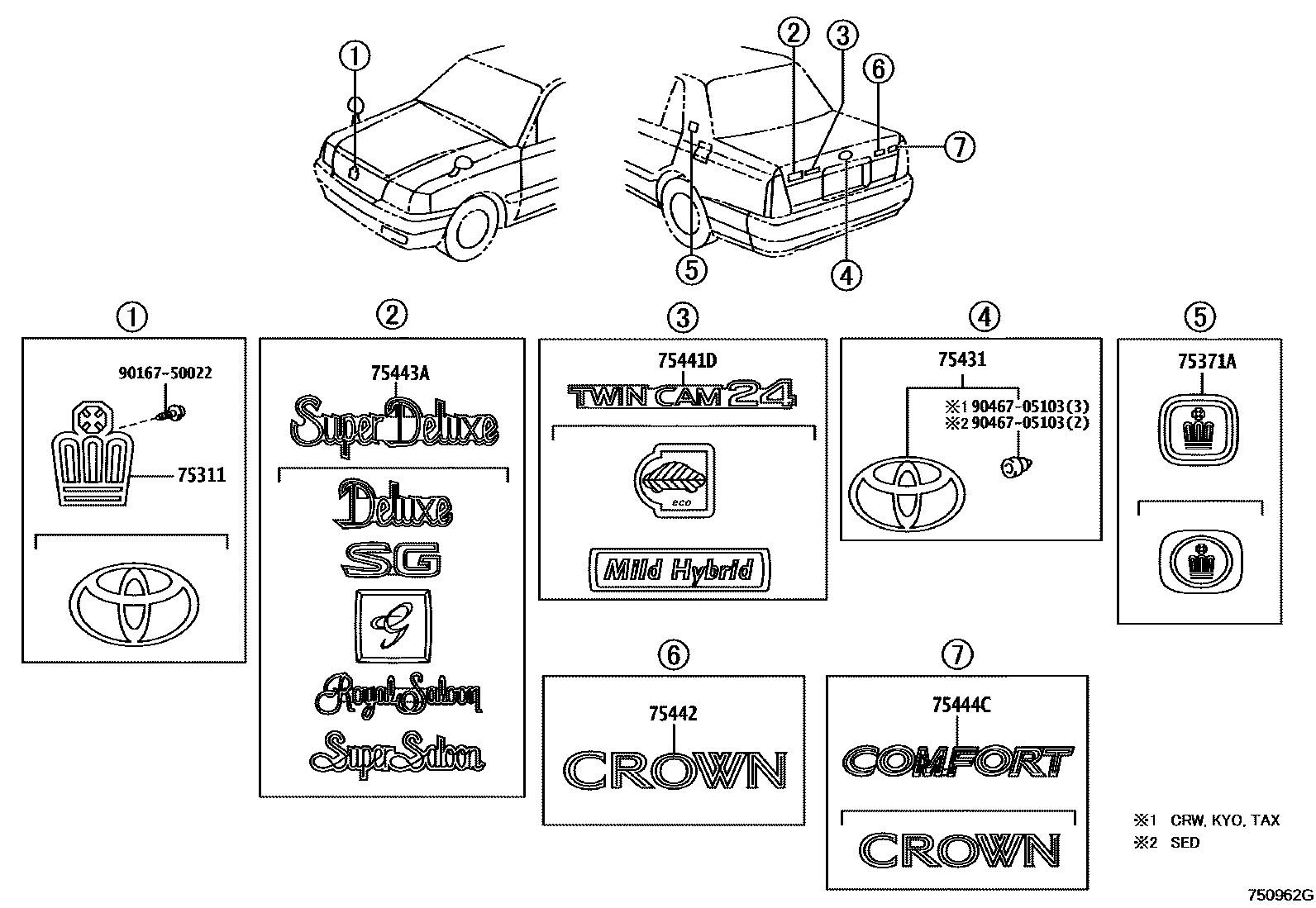

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-30260iLXS11,SXS11,YXS11199512-200108

main75311-30290iYXS10..4H200108-200706

main75311-30330iGXS12200108-200708

main75311-31010iGXS10,YXS10199512-199701

main75311-43010iTSS10..CRW200808

main75311-43020iTSS10..SED200808

75371AEMBLEM, QUARTER PANEL

main75371-30160×2iYXS10..4H..DLX; YXS10..4HC..DLX200108-200706

main75371-30180×2iYXS10..SED..4HC200108-200706

main75371-30200×2iTSS10..DLX,SAL,SDX200808

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75431-22010iYXS10..CRW..4HC200108-200706

main75431-43010iTSS10..SED200808

main75431-43020iTSS1#..DLX,SG,STD201703

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-30340iGXS10199512-200102

main75443-30380iGBS12200210

main75443-43030iYXS1#..4FC..(SAL,SDX,SG)200401

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-30150iYXS10..4HC200709

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-30060iLXS11,SXS11,YXS1#..DLX199512-199803

main75443-30100iGXS10200108-200210

main75443-30200iGXS1#,YXS10..SDX200201-200210

main75443-30260iYXS10..4HC..SAL200210-200706

main75443-30270iGXS12200108-200708

main75443-43010iTSS11..SG200808

main75443-43020iYXS10..4H..DLX; YXS10..4HC..DLX200108-200706

75444CPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.4

main75442-30120iTSS10..SED200808

main75442-43010iYXS10..4H; YXS10..CRW..4HC200108-200706

9016750022

main90167-50022

9046705103

main90467-05103

9 parts on this diagram · 1 diagram in section
