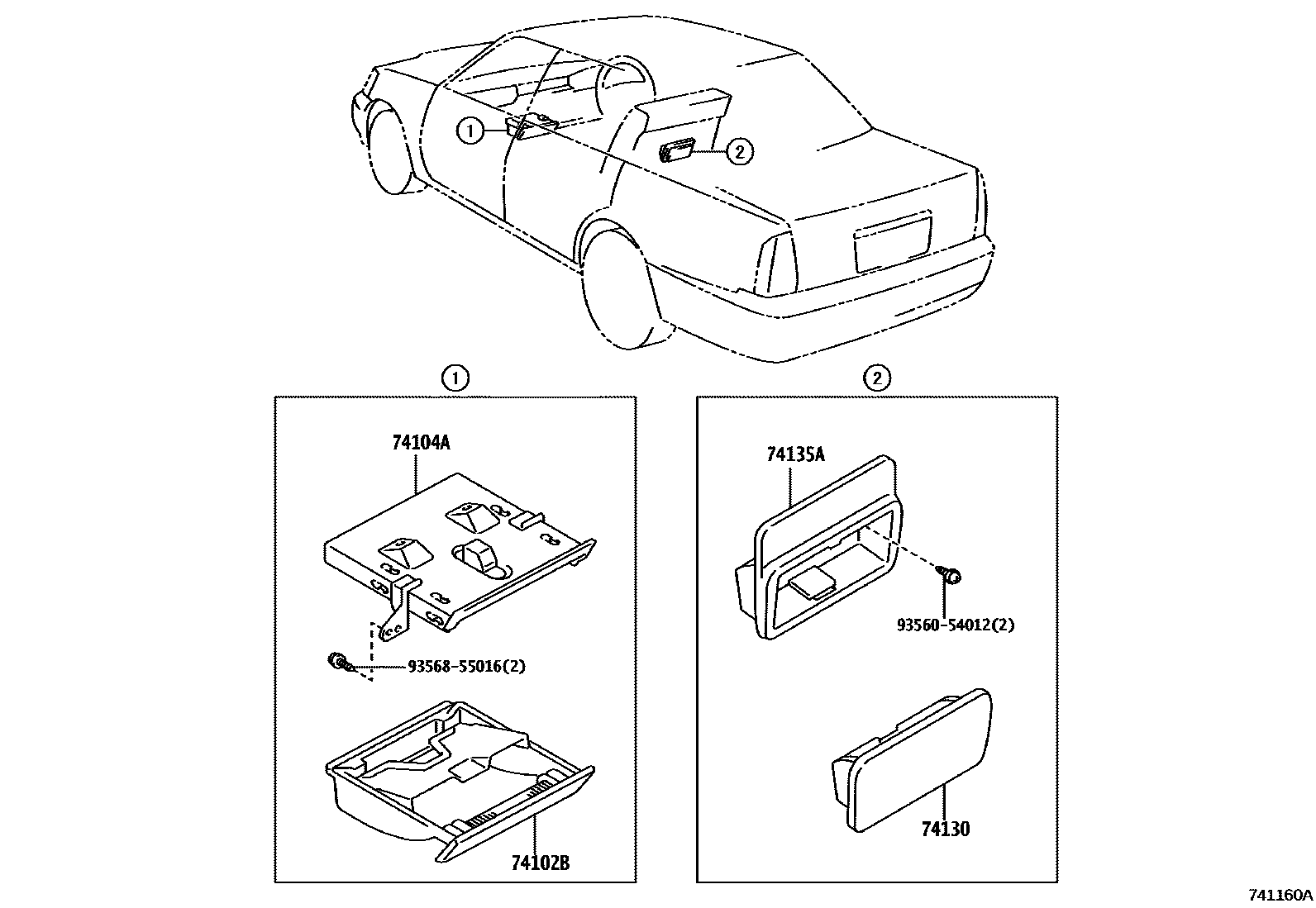

ASH RECEPTACLE

0001 1 0002 1

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-30111-B0iLXS11,YXS1#..(CRW,TAX)..(DLX,STD)199701-200108

SHADOW GRAY,TRIM1#

main74102-30111-B1iYXS10..4HC200709-200808

DK.GRAY,TRIM1#

main74102-43010-B0iGXS10,LXS11,SXS11,YXS11..DLX,SDX,SG199701-200108

SHADOW GRAY,TRIM1#

main74102-43010-B1iSXS13,YXS11..DLX,SG200108-200808

DK.GRAY,TRIM1#

main74102-43020-B0iGXS10200110-200210

DK.GRAY,TRIM1#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-12230iTSS1#..DLX,SG,STD200709

main74104-30180iLXS11,YXS1#..(CRW,TAX)..(DLX,STD)199701-200108

74130RECEPTACLE ASSY, REAR ASH

main74109-43010iGXS10,LXS11,YXS1#..CRW,TAX199512-200009

main74109-43011iTSS10,11..CRW,TAX200808-201206

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-43010iYXS1#..(CRW,TAX)..(4FC,4HC,5F)200108

9356054012

main93560-54012

9356855016

main93568-55016

6 parts on this diagram · 2 diagrams in section
