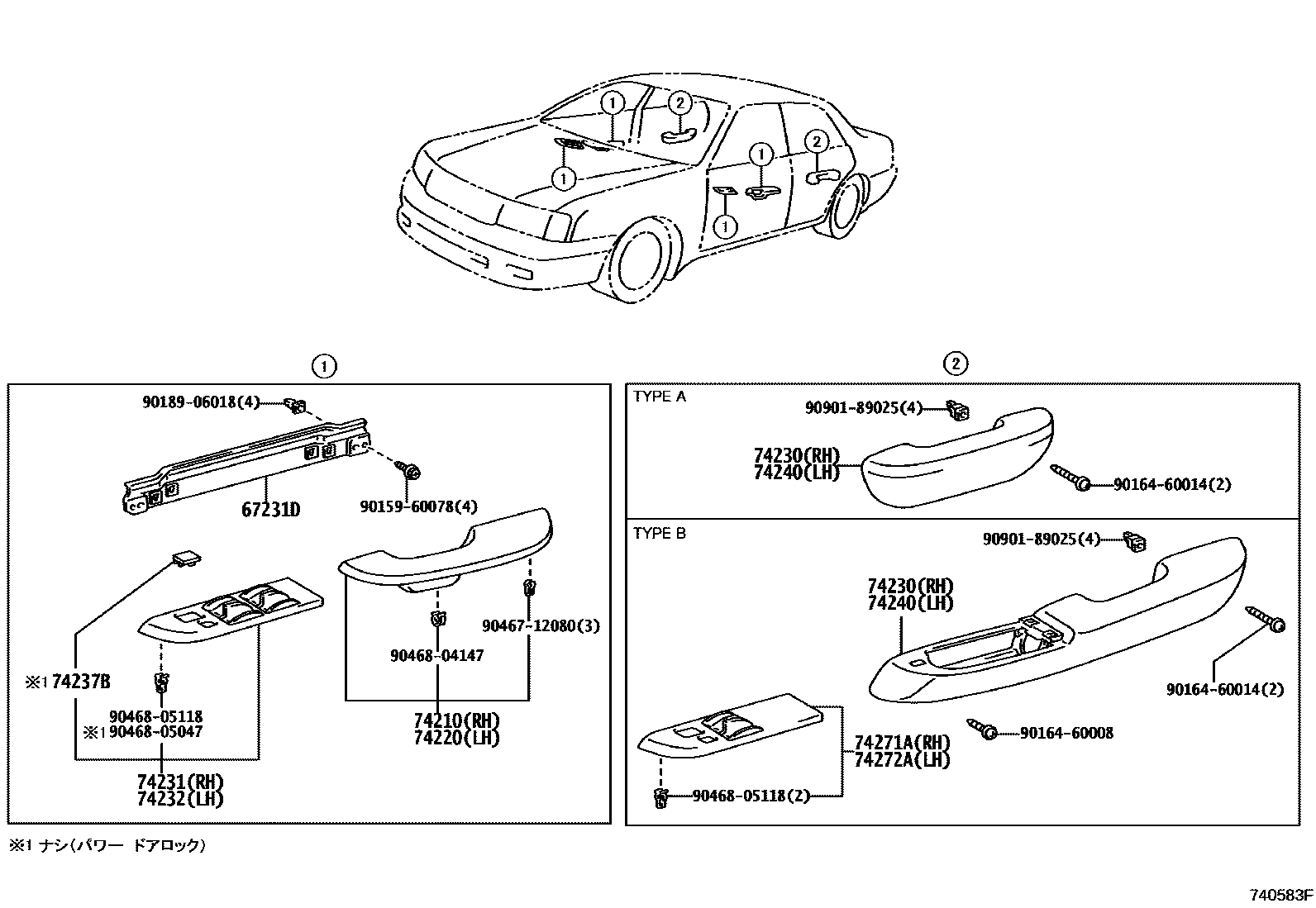

ARMREST & VISOR

0001 1������ 0002 1������ 0003 1����� & ���������� 0004 1����� & ���������� 0005 1���������� (������� TYPE1) 0006 1���������� (������� TYPE2)

67231DSUPPORT, FRONT DOOR ARMREST

main67231-43010×2iGXS10,LXS11,SXS11,YXS1#199512-200108

74210ARMREST ASSY, FRONT, RH

main74210-16101-B1iLXS11,SXS11,YXS1#..DLX,STD199512-200001

SHADOW GRAY,TRIM1#

main74210-30170-B1iGXS10,LXS11,YXS11..SDX,SG; LXS11,SXS11,YXS1#..DLX,STD199512-200001

main74210-43010-B0iSXS11,YXS1#..DLX,STD200001-200108

SHADOW GRAY,TRIM1#

main74210-43010-B1iYXS10..CRW..4HC200108-200706

DK.GRAY,TRIM1#

main74210-43020-B0iGXS10,YXS11..SDX,SG; SXS11,YXS1#..DLX,STD200001-200108

main74210-43020-B1iYXS10..CRW..4HC200108-200706

74220ARMREST ASSY, FRONT, LH

main74220-16081-B1iLXS11,SXS11,YXS1#..DLX,STD199512-200001

SHADOW GRAY,TRIM1#

main74220-30130-B1iGXS10,LXS11,YXS11..SDX,SG199512-200001

SHADOW GRAY,TRIM1#

main74220-43010-B0iSXS11,YXS1#..DLX,STD200001-200108

SHADOW GRAY,TRIM1#

main74220-43010-B1iSXS13,YXS1#..(4FC,4H,5F)..(DLX,STD)200108-200808

DK.GRAY,TRIM1#

main74220-43020-B0iGXS10,SXS11,YXS1#..CRW,KYO; YXS11..SG200001-200108

main74220-43020-B1iYXS10..CRW..4HC200108-200706

74230ARMREST ASSY, REAR, RH

main74210-10031-B1iTSS11..DLX,SG;TSS10,13..DLX,STD200709

main74210-10031-P0iYXS11..DLX,SG;GXS10,LXS11,SXS11,YXS10; YXS11..STD199701-199801

main74210-10060-B1iTSS1#..DLX,STD200709

main74210-10060-P0iLXS11,SXS11,YXS1#..DLX,STD199512-200108

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-10040-C0iYXS10..4HC200709-200808

main74231-10050-C0iYXS10..CRW..4FC200707-200808

main74231-13011-C0iYXS1#..(CRW,TAX)..(4FC,4H,5F)..(DLX,STD)200108-200808

main74231-43010iYXS11..SG200108-200808

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-10021-22iGXS10,LXS11,SXS11,YXS1#..CRW,KYO199801-199802

BLACK,TRIM1#

main74232-43010iGXS10199512-200102

74237BCAP, DOOR ARMREST BASE

main74237-13010iLXS11,YXS1#..(CRW,TAX)..(DLX,STD)199701-199908

main74237-13010-C0iYXS10..4HC200709-200808

BLACK,TRIM1#

74240ARMREST ASSY, REAR, LH

main74210-10060-B1iYXS10..CRW..4HC200108-200706

main74210-10060-P0iLXS11,SXS11,YXS1#..DLX,STD199512-200108

main74220-10021-B1iTSS1#..DLX,SG,STD200709

main74220-10021-P0iYXS11..DLX,SG;GXS10,LXS11,SXS11,YXS10; YXS11..STD199701-199801

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74231-10032-C0iGXS10,LXS11,SXS11,YXS1#..DLX,SDX,STD199701-199801

BLACK,TRIM1#

main74231-43020iYXS11..SG200108-200808

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74232-10021-22iTSS1#..CRW,KYO200709

BLACK,TRIM1#

main74232-43010iYXS11..SG200108-200808

9015960078

main90159-60078

9016460008

main90164-60008

9016460014

main90164-60014

9018906018

main90189-06018

9046712080

main90467-12080

9046804147

main90468-04147

9046805047

main90468-05047

9046805118

main90468-05118

9090189025

main90901-89025

19 parts on this diagram · 6 diagrams in section
