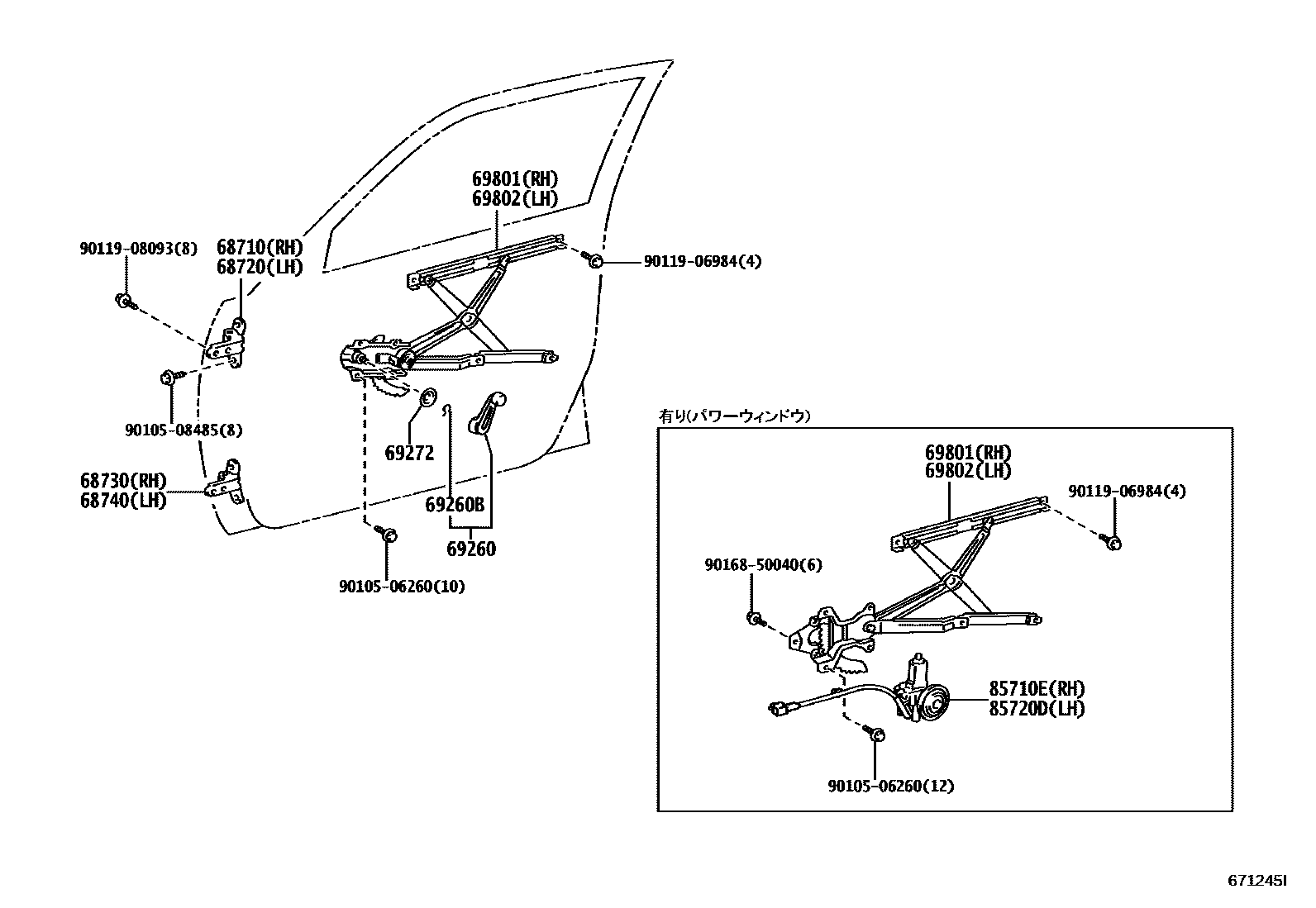

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-30160iGXS10,LXS11,SXS11,YXS1#199512-200011

main68710-43010iYXS10..CRW..(4FC,4H);GBS12,GXS1#,SXS13,YXS1#..KYO,SED,TAX200108-200808

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-30080iYXS10..CRW..4HC200108-200707

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-30080iGXS10,LXS11,SXS11,YXS1#199512-200011

main68720-43010iYXS10..CRW..4HC200108-200707

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-30160iTSS1#200709

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22030-B6iSXS13,YXS1#..(4FC,4H,5F)..(DLX,STD); YXS1#..(CRW,TAX)..(4FC,4H,5F)..(DLX,STD)200108-200808

main69260-22030-P0×2iLXS11,SXS11,YXS1#..DLX,STD; LXS11,YXS1#..(CRW,TAX)..(DLX,STD)199512-200108

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iYXS1#..(4FC,5F)..(DLX,STD); YXS1#..(CRW,TAX)..(4FC,5F)..(DLX,STD)200108

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010iTSS10,11..(CRW,TAX)..(DLX,STD)200808

main69285-22010-08×2iYXS10..4H; YXS10..CRW..4HC200108-200706

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-43010iTSS1#; YXS10..4HC200709

main69810-43010iTSS1#..DLX,STD; YXS10..4HC200709

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-43010iGXS10,LXS11,SXS11,YXS11..DLX,SDX,SG; LXS11,YXS1#..(CRW,TAX)..(DLX,STD)199512-199701

main69820-43010iTSS1#..DLX,STD; YXS10..4HC200709

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-30310iTSS10200808

main85710-43020iTSS11,13200709

main85710-43030iGBS12200108

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-30260iGXS12200108-200708

main85720-43020iLXS11,SXS11,YXS11199701-199802

9010506260

main90105-06260

9010508485

main90105-08485

9011906984

main90119-06984

9011908093

main90119-08093

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
